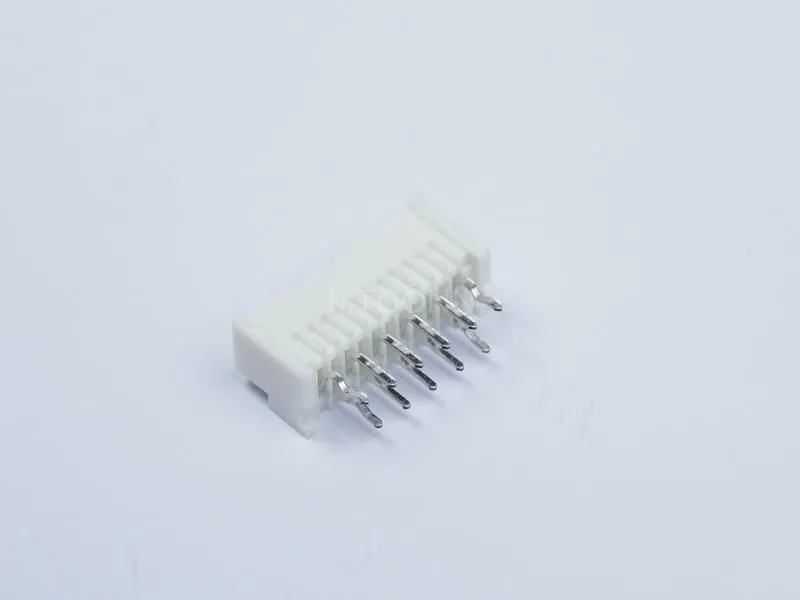

MTFP22-811STW-01A72
FPC Connector 1.25mm Pitch 11Pin 7.5mm Height Pull Vertical T/H Double Row

Key Features of the 1.25mm Pitch 11 Pin FPC Connector

1.25mm Pitch and 11-Position Configuration

The connector provides 11 contact positions at a 1.25mm pitch. Specifying the pitch and number of positions helps engineering and purchasing teams identify the required connector and reduces the risk of selecting an incompatible PCB footprint or flexible circuit.

Vertical Through-Hole PCB Mounting

The terminals pass through the PCB and are soldered on the opposite side of the board. This vertical through-hole configuration supports designs in which the FPC enters perpendicular to the PCB.

Before releasing the PCB layout, confirm the hole pattern, terminal arrangement, connector outline and cable entry direction against the approved product drawing.

7.5mm Connector Height

The 7.5mm connector height provides a defined reference for enclosure clearance, board spacing and FPC routing. Equipment designers should include sufficient space for cable insertion, actuator operation and production-line handling.

Phosphor Bronze Terminal Structure

The connector uses phosphor bronze for both the terminals and fitting nails. The housing and thermoplastic actuator form the mechanical interface for FPC positioning and retention.

Electrical Ratings for Equipment Integration

The connector is rated at 1.25A AC/DC and 125V AC/DC, with a maximum contact resistance of 30mΩ. Its specified operating temperature range is -40°C to +85°C.

Final selection should be based on the actual circuit load, cable construction, PCB design, environmental conditions and applicable equipment requirements.

Check Compatibility Before Sample Approval

Matching the pitch and contact count alone does not confirm compatibility. Before approving this 11 position FPC connector for production, review the following factors:

Providing the FPC drawing and PCB footprint during sample enquiry allows the engineering team to review the intended interface before mass production.

Applications

The 1.25mm vertical through-hole FPC connector can be evaluated for internal PCB-to-FPC connections in:

Industrial Control Equipment

It can connect control boards with display panels, operator interfaces, sensors or other internal modules where vertical cable entry is required.

Automation and Monitoring Devices

The through-hole mounting arrangement may be considered for control units, monitoring modules and equipment interfaces using an 11-position flexible circuit.

Displays and Operator Panels

The connector can be used to route signals between a main PCB and a display, keypad or control panel when the mechanical design provides adequate vertical clearance.

Household and Commercial Equipment

This model can also be evaluated for electronic controls, user interfaces and internal signal connections in appliances and commercial devices.

Automotive and Specialized Electronics

The -40°C to +85°C temperature specification may support evaluation for selected electronic modules. Application qualification and testing must be completed according to the customer’s actual operating conditions and industry requirements.

Support for High-Volume OEM and EMS Orders

MTCONN supports procurement programs that move from engineering evaluation to recurring production orders. Our manufacturing operations combine mold development, stamping, injection molding, assembly and inspection capabilities.

With more than 200 employees, over 5,000 square meters of workshop space and 68 sets of automated production equipment, MTCONN supports connector purchasing for OEMs, EMS companies, contract manufacturers and distributors.

Learn more about our connector manufacturing capabilities.

Sample Evaluation

Samples are available for dimensional, assembly and electrical evaluation. The typical sample lead time is 5–7 days, subject to model availability and project requirements.

Volume Production

The typical production lead time is approximately 3–4 weeks, depending on order quantity, material availability, packaging requirements and production scheduling.

For recurring orders, provide your estimated annual usage, batch quantity and required delivery schedule so that production and material planning can be reviewed in advance.

Testing Support

Available testing support includes:

• Continuity testing

• Insulation testing

• Withstand-voltage testing

• Salt-spray testing

• Thermal-shock testing

Test items, acceptance criteria and reporting requirements should be agreed before order confirmation.

Packaging and Traceability

For large-volume purchasing programs, MTCONN can discuss:

• Moisture-resistant and anti-static packaging

• Custom outer-carton and inner-package labels

• Barcode identification

• Batch and traceability requirements

• Customer-specific packing quantities

• Shipping arrangements for different destinations

OEM and Custom Connector Support

If the standard MTFP22-811STW-01A72 configuration does not match your FPC, PCB or assembly requirements, MTCONN can review custom connector requirements.

Our OEM and ODM connector services cover structural review, material selection, technical documentation, sample development, testing support and customized packaging.

Please provide the following information for a custom project:

• FPC drawing and thickness

• Required pitch and number of positions

• PCB footprint or board drawing

• Mounting orientation

• Connector height limit

• Contact direction

• Rated current and voltage

• Operating temperature

• Target order quantity

• Estimated annual demand

• Required standards or testing items



Frequently Asked Questions

Is this an 11 pin or 11 position FPC connector?

Both expressions refer to the number of electrical contact positions. “11 Pin FPC Connector” is commonly used in product searches, while “11 Position FPC Connector” is frequently used in technical specifications and distributor filters.

Is this connector mounted by SMT?

No. This model uses vertical through-hole PCB mounting. Confirm the PCB hole pattern and terminal layout against the approved drawing before finalizing the board.

What is the connector height?

The specified connector height is 7.5mm. Additional clearance should be allowed for FPC insertion, handling and the surrounding enclosure.

Can we obtain samples before placing a volume order?

Yes. Samples can be arranged for engineering and quality evaluation. The typical sample lead time is 5–7 days, subject to stock and project requirements.

What is the lead time for mass production?

The typical lead time is approximately 3–4 weeks. The final schedule depends on quantity, material availability, packaging requirements and current production capacity.

Can you provide pricing for annual or scheduled orders?

Yes. Send the planned batch quantity, estimated annual usage and delivery schedule. This allows MTCONN to review volume pricing and production planning for recurring orders.

Do you offer other contact counts?

MTCONN offers FPC connector configurations with different contact counts. If your design requires a higher contact count, you can also review the 1.25mm Pitch 15 Pin FPC Connector.

Can this connector be customized?

Custom pitch, contact count, mounting configuration, materials, plating, packaging and labeling requirements can be reviewed according to project feasibility and order volume.

Request Samples and Volume Pricing

Looking for a 1.25mm Pitch 11 Pin FPC Connector for an OEM product, EMS assembly program or recurring distribution order?

Send us your FPC drawing, PCB footprint, required quantity and annual forecast. MTCONN will review the specification and provide sample availability, volume pricing and an estimated production schedule.

Request a Sample | Get Volume Pricing | Discuss an OEM Project
