1.25mm Pitch 15 Pin FPC Connector

Argument

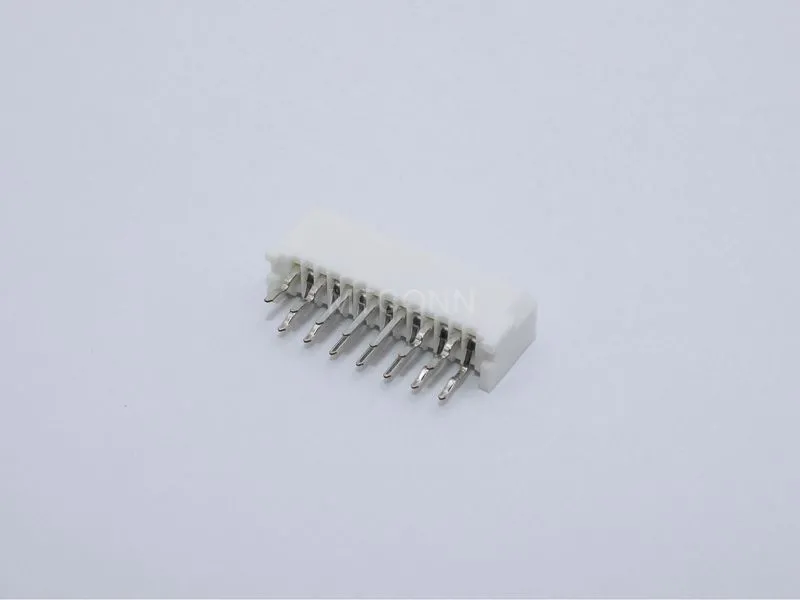

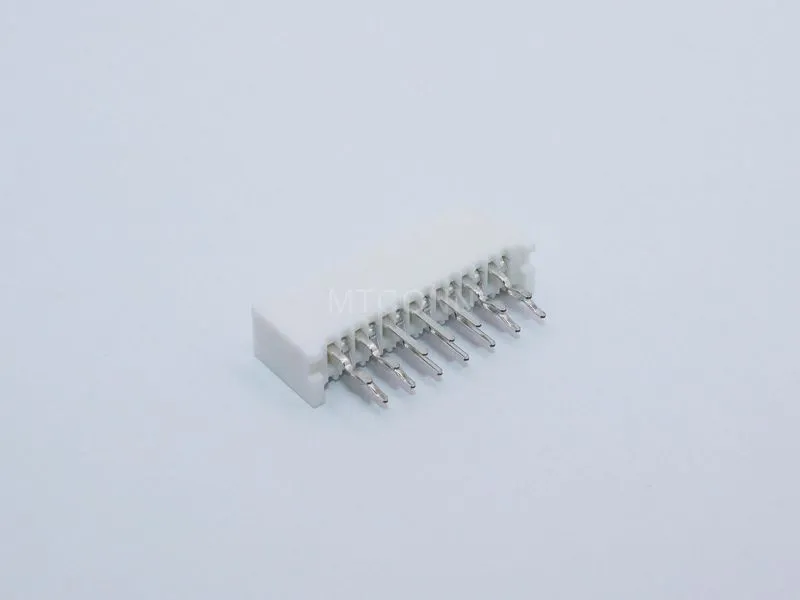

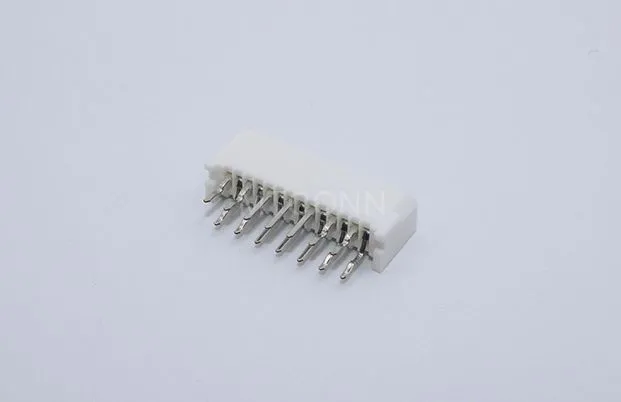

The MT 1.25mm Pitch 15 Pin FPC Connector provides a vertical connection interface between a flexible printed circuit and a PCB. Its through-hole mounting configuration and 7.5mm height suit equipment designs requiring this specific contact layout and board mounting arrangement.

With a rated current of 1.25A per contact and an operating temperature range of -40℃ to +85℃, this model is available for OEM production, EMS assembly and distributor purchasing. We support engineering sample evaluation, specification review and volume order enquiries.

Send your required quantity and target delivery date to request a bulk quotation.

Material of Main Part/Color	PPS/White
Number of Contacts	15 Pin
Rated Current	1.25A
Rated Voltage	125V AC
Contact Resistance	30mΩ MAX.
Operating Temperature	-40℃ ~ +85℃

Features of the 15 Pin Through-Hole FPC Connector

1.25mm Pitch with 15 Contacts

The 15-contact configuration provides a defined interface for matching flexible printed circuits. For engineering and purchasing teams, specifying both the contact pitch and contact count helps identify the correct component before sample approval and production ordering.

Vertical Through-Hole Mounting

The connector terminals are soldered into PCB through-holes, making this model an option for assemblies using through-hole connector installation. Its vertical orientation allows the flexible circuit to enter perpendicular to the board, supporting cable routing above the PCB.

7.5mm Height for Mechanical Layout Planning

The specified 7.5mm height gives equipment designers a clear reference when reviewing board spacing, enclosure clearance and flexible circuit routing. Check the dimensional drawing against your assembly before finalizing the PCB layout.

Defined Electrical and Temperature Ratings

This 1.25mm pitch FPC connector is rated at 1.25A per contact and 125V AC, with a maximum contact resistance of 30mΩ. Its -40℃ to +85℃ operating temperature range provides a reference for component selection in equipment exposed to changing ambient conditions.

Factory Support for OEM and EMS Procurement

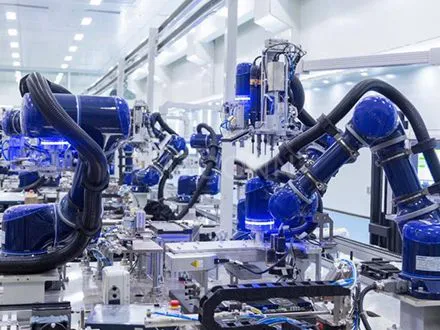

MTCONN has been developing and manufacturing connectors since 2004, combining mold design, product development and production capabilities. Our factory has more than 200 employees, over 5,000 square meters of workshop space and 68 sets of automated production equipment.

For customers purchasing connectors for ongoing production, we provide support beyond initial product selection:

Engineering documentation: Product specifications and drawing support for reviewing the connector against your PCB and flexible circuit requirements.
Evaluation samples: Samples for checking fit, assembly handling and electrical performance before approving a production order.
Testing support: Continuity, insulation, withstand voltage and environmental testing services, with project requirements agreed during technical review.
Packaging and identification: Packaging, custom labels and barcode requirements can be discussed to support receiving and inventory management.

Our OEM/ODM services also support projects requiring connector design changes. Share your drawings and technical requirements for a feasibility review.

Applications for Vertical FPC Connections

This 15 position FPC connector can be evaluated for internal flexible circuit connections in:

Industrial control equipment: Connections between control boards and equipment interface assemblies.
Automation equipment: Flexible circuit interfaces within monitoring and control modules.
Equipment displays and operator panels: Connections where the design requires a 15-contact, 1.25mm pitch vertical interface.

Selection should follow the actual cable construction, PCB layout, electrical load and equipment operating conditions.

For different contact counts, pitches or mounting configurations, explore our FPC connectors.

Confirm Compatibility Before Production Approval

Matching pitch and contact count is the starting point. Before releasing a bulk order, review the following details with your engineering team:

Selection Item	What to Confirm
Flexible circuit interface	Cable thickness, exposed contact dimensions and contact orientation
PCB footprint	Through-hole positions, hole sizes and terminal arrangement
Mechanical clearance	Connector height, cable entry space and enclosure clearance
Electrical requirements	Operating current, voltage and circuit conditions
Assembly requirements	Soldering process, insertion procedure and inspection criteria

Send your FPC drawing and PCB footprint when requesting samples. Reviewing these details early helps identify interface differences before production approval.

Frequently Asked Questions

Can we obtain samples before placing a bulk order?

Yes. Evaluation samples are available for engineering review before production purchasing. Use them to verify mating compatibility, PCB fit and assembly handling with your actual components.

What is the MOQ for this 1.25mm pitch 15 pin FPC connector?

Please send the model number and required quantity to confirm the applicable MOQ and volume pricing. Including your expected annual demand can also help us review requirements for repeat production orders.

What are the sample and mass production lead times?

Our general lead-time guidance is 5–7 days for samples and 3–4 weeks for mass production, depending on quantity. Confirm the schedule for this model and your order requirements when requesting a quotation.

Can you support custom requirements?

We offer OEM/ODM support for connector projects. Send your drawings and proposed changes for technical review. Any approved variation should be documented separately from the standard MTFP22-815STW-01A72 specification.
