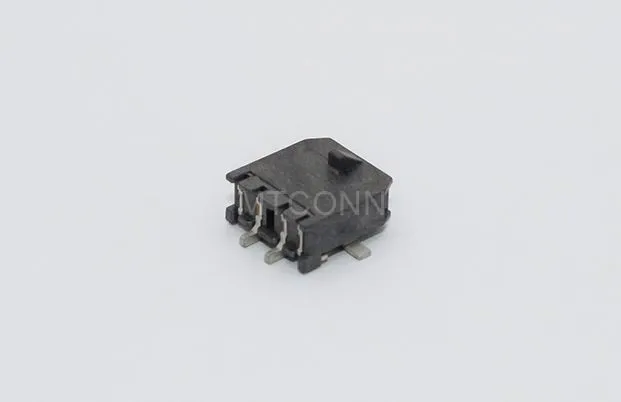

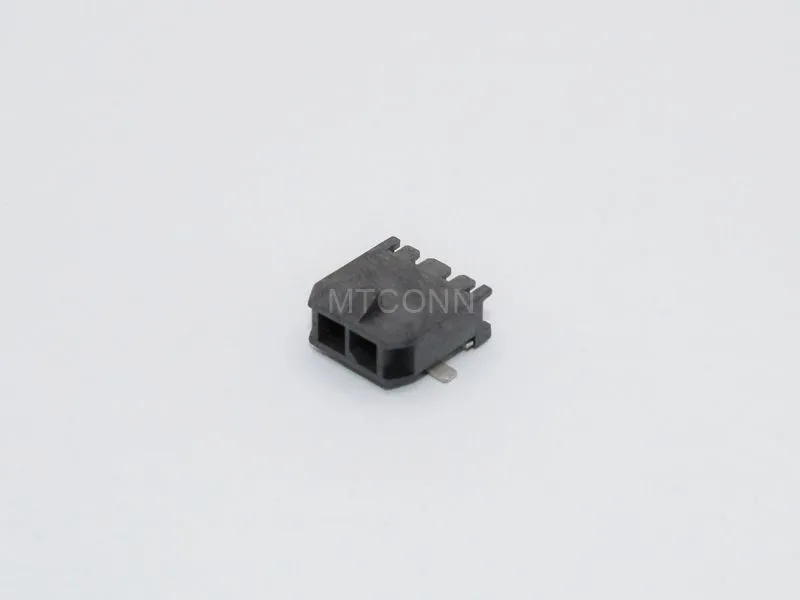

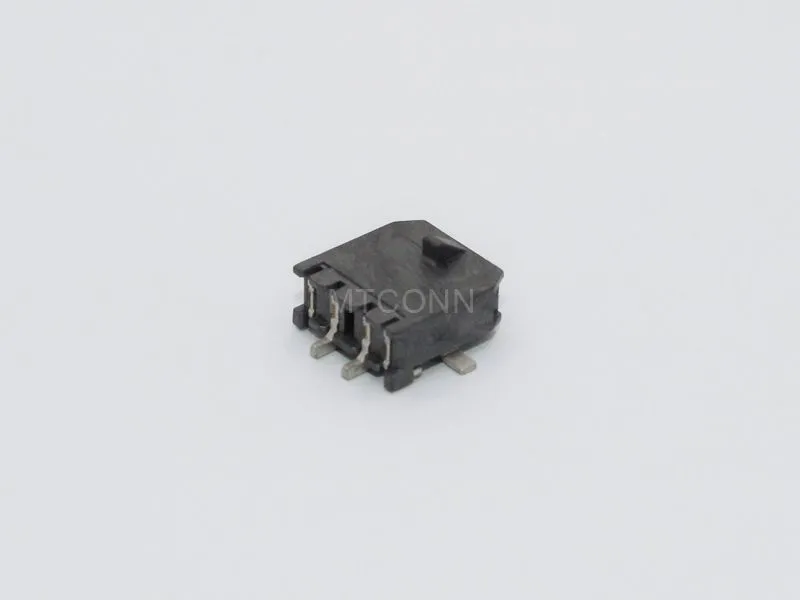

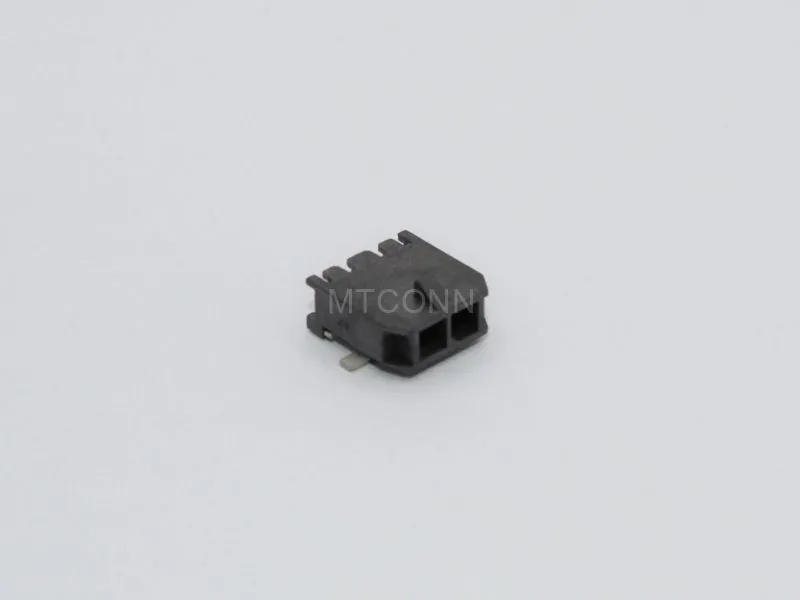

This product is a high-quality 2Pin wafer connector. It is suitable for low-power electrical devices and precision electronic component connections. Featuring wear-resistant materials and a compact structure, it ensures stable signal transmission and long-term reliability, meeting the demand for miniaturized, high-durability connectors in industrial and consumer electronics applications.
Features
High Reliability: Features tin-plated contact design to reduce contact resistance and enhance signal transmission stability.
Compact & Lightweight: Miniaturized design saves space, ideal for high-density PCB layouts.
Easy Installation: SMT soldering process simplifies production flow and improves assembly efficiency.
Environmental Resistance: Wide operating temperature range (-25℃ to +85℃), suitable for harsh conditions.
Argument
| Material of Main Part/Color | LCP/Black |
| Number of Contacts | 2 Pin |
| Rated Current | 5.0A |
| Rated Voltage | 250V |
| Contact Resistance | 20mΩ Max. |
| Insulation Resistance | 1000MΩ Min. |
| Operating Temperature | -25℃~ +85℃ |
| Fireproof Rating | UL94V-0 |
Core Technology
Key Words:
Wire-to-board connector, miniaturized design + tin-plated contact process.
Core Advantage:
High-reliability connection in a compact size, suitable for high-vibration and high-humidity environments.
Technical Features:
90°DIP Through Hole Technology + Tin-plated anti-oxidation contacts
Application Scenarios
