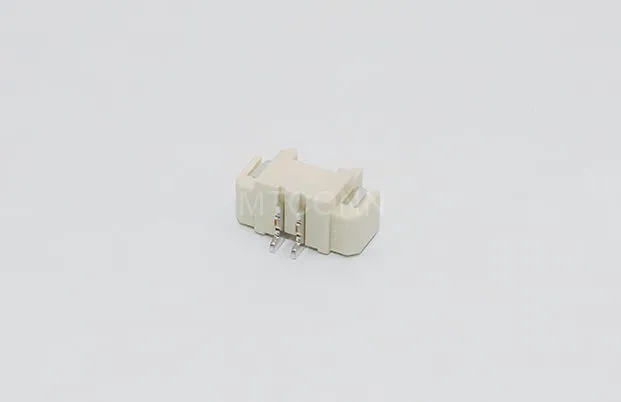

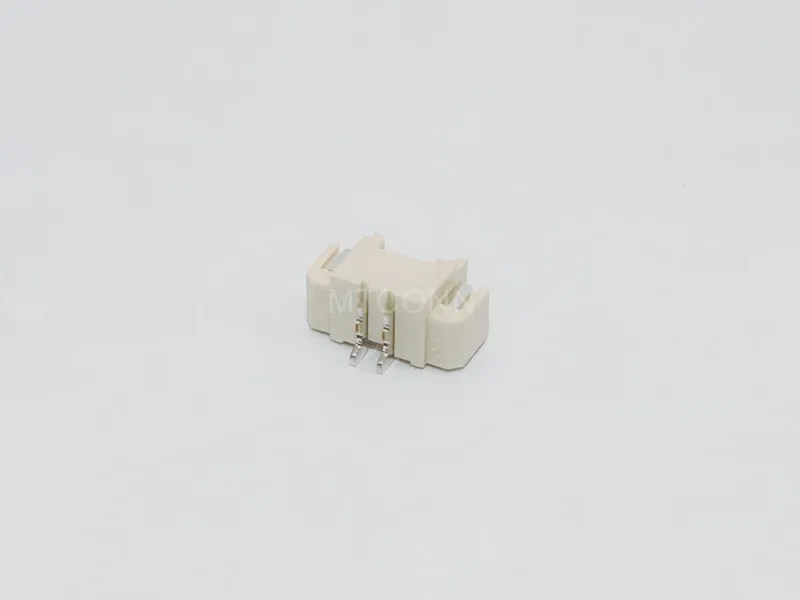

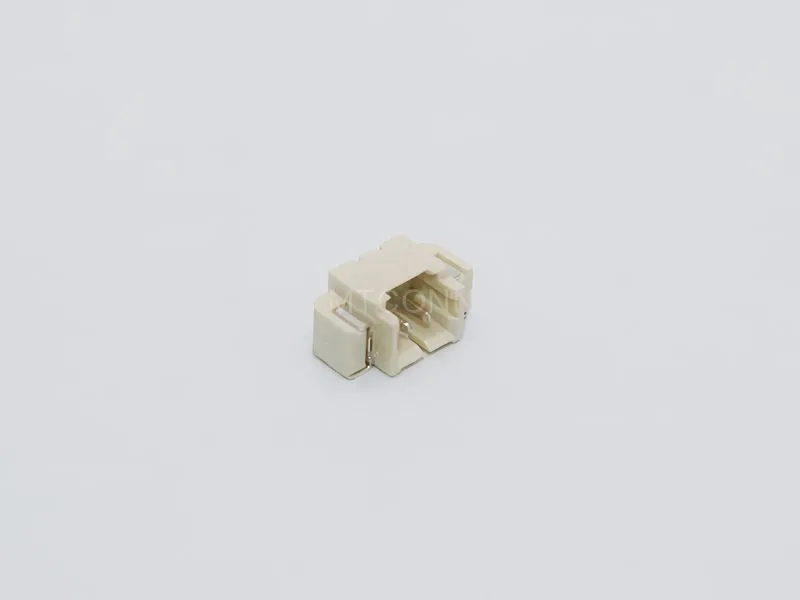

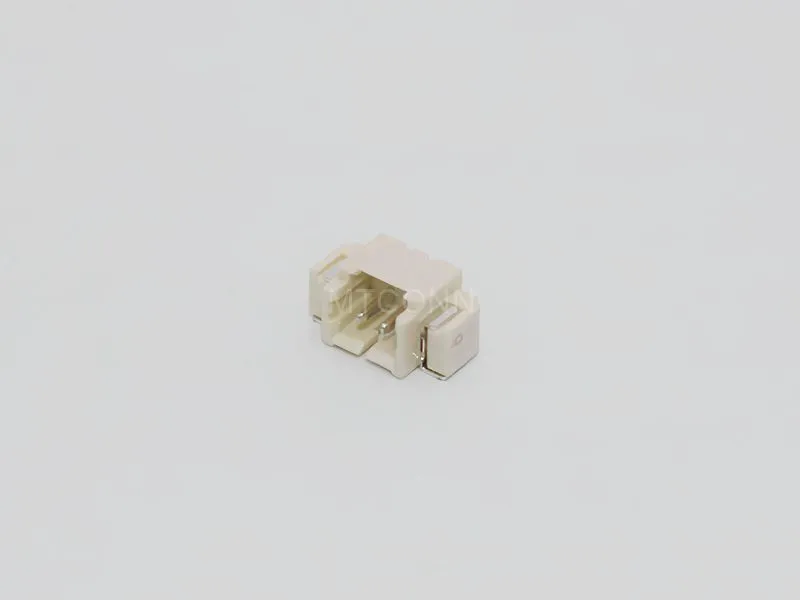

This product is a high-quality 2Pin wafer connector. It is suitable for low-power electrical devices and precision electronic component connections. Featuring wear-resistant materials and a compact structure, it ensures stable signal transmission and long-term reliability, meeting the demand for miniaturized, high-durability connectors in industrial and consumer electronics applications.
Features
High Reliability: Features tin-plated contact design to reduce contact resistance and enhance signal transmission stability.
Compact & Lightweight: Miniaturized design saves space, ideal for high-density PCB layouts.
Easy Installation: DIP Through Hole soldering process simplifies production and improves assembly efficiency.
Environmental Resistance: Wide operating temperature range (-25℃ to +85℃), suitable for harsh conditions.
Argument
| Material of Main Part/Color | LCP/Beige |
| Number of Contacts | 2 pin. |
| Rated Current | 2.0A |
| Rated Voltage | 50V DC |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | 500MΩ Min. |
| Insertion Force | 0.3N-1.5N |
| Withdrawal Force | 5N |
| Service Life | 5000 Times |
| Operating Temperature | -35℃~ +85℃ |
Core Technology
Key Words:
Wire-to-board connector, miniaturized design + tin-plated contact process.
Core Advantage:
High-reliability connection in a compact size, suitable for high-vibration and high-humidity environments.
Technical Features:
SMT Soldering Technology + Tin-plated anti-oxidation contacts
Application Scenarios
