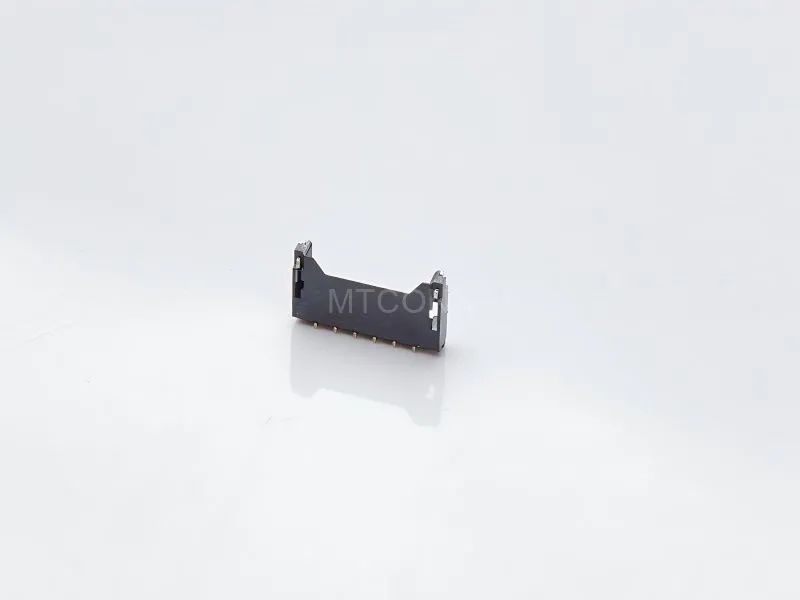

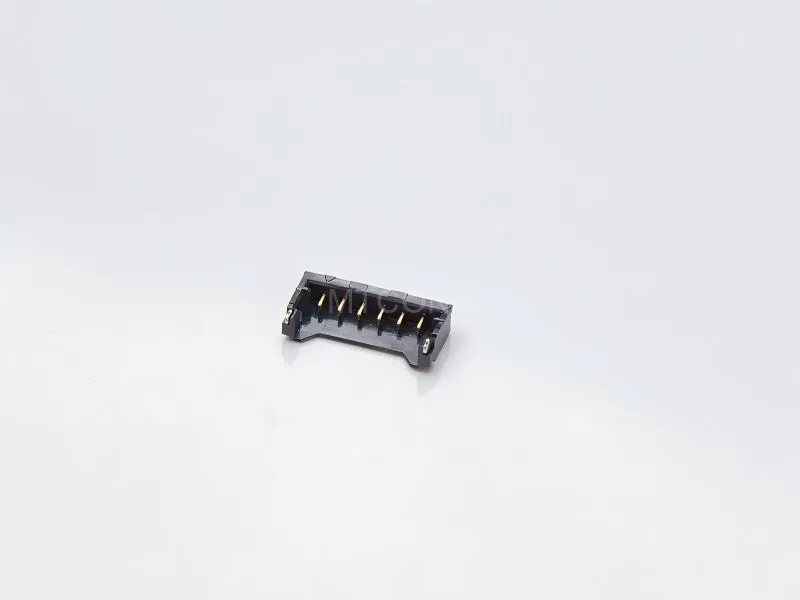

This product is a 6-pin PH1.2MM pitch horizontal (right-angle) receptacle connector, featuring a PA9T black housing and gold-plated terminals, compliant with RoHS environmental standards. Designed for high-density PCB layouts, it delivers stable electrical performance and high-temperature resistance, making it ideal for industrial control systems, communication devices, and consumer electronics.
Features
High-Precision Design: Pitch of 1.2mm with tight tolerances (e.g., A±0.15mm), ensuring compatibility for high-density installations.
Premium Materials: Features a UL94V-0 flame-retardant PA9T black plastic housing and gold-plated brass terminals, offering both corrosion resistance and superior conductivity.
Reliable Electrical Performance: Rated for 1.5A current and 50V voltage, with contact resistance ≤20mΩ, insulation resistance ≥100MΩ, and dielectric withstand voltage of 500V AC.
Wide Temperature Range: Operates in environments from -25°C to +85°C, suitable for harsh conditions.
Versatile Configurations: Supports 2P to 10P pin counts (6P as standard), with dimensions spanning 1.20mm to 12.25mm.
Argument
Material of Main Part/Color | PA9T/Black |
Number of Contacts | 6 Pin |
Rated Current | 1.5A AC/DC |
Rated Voltage | 50V AC/DC |
Contact Resistance | 20mΩ MAX. |
Withstand Voltage | 500V AC (1min) |
Insulation Resistance | 100MΩ MIN. |
Operating Temperature | -25℃ ~ +85℃ |
Core Technology
Key Words:
PH1.2MM connector, 6-pin horizontal (right-angle), gold-plated terminals, PA9T black housing, RoHS compliant, high-density PCB, industrial-grade connector
Core Advantages:
Horizontal (right-angle) SMT design with optimized PCB layout – Simplifies assembly and enhances mechanical strength.
Technical Features:
Gold-plated brass terminals – Reduce contact resistance and improve signal transmission stability.
