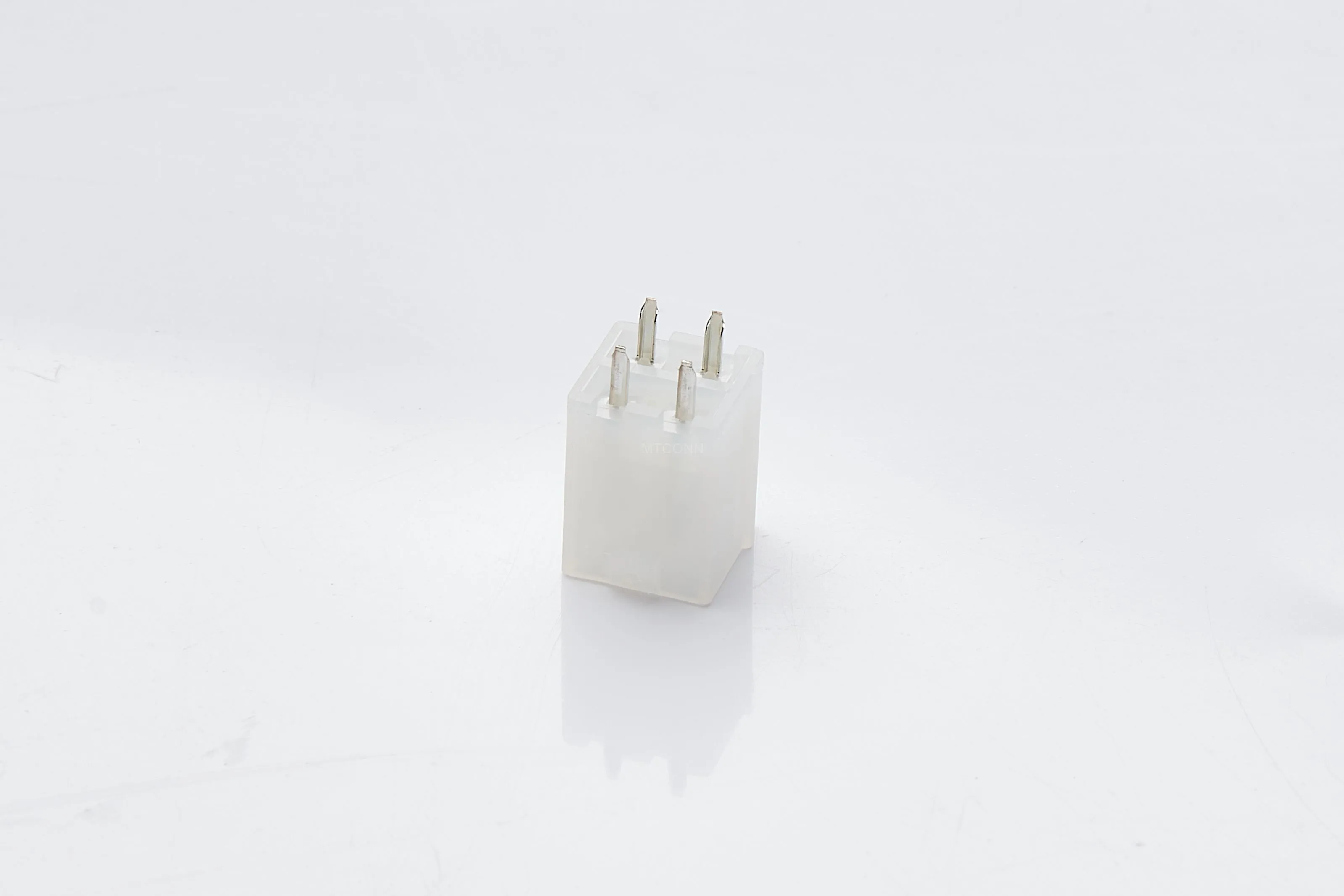

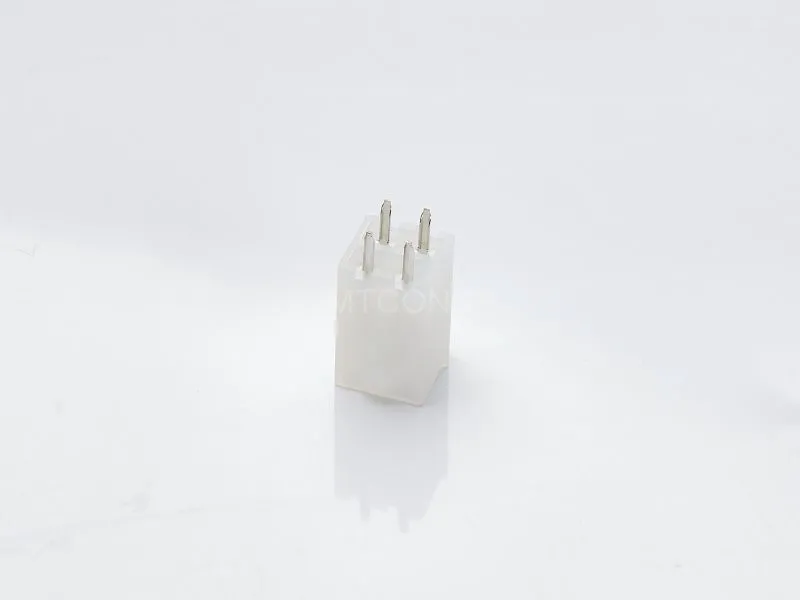

This product supports a current of 9A and a voltage of 250V, offering excellent electrical performance and mechanical stability. With an operating temperature range of -25°C to +85°C, it is widely used in industrial control, consumer electronics, and other fields.
Features
High Reliability: Contact resistance ≤20mΩ, insulation resistance ≥1000MΩ, withstands 1500V AC for 1 minute.
Durable Material: White (transparent) PA66 housing (UL94V-0 flame-retardant), tin-plated brass terminals for oxidation resistance.
Wide Temperature Adaptation: Stable operation in environments ranging from -25°C to +85°C.
Precision Design: PH5.5 pitch, strict tolerances (e.g., ±0.15mm to ±0.25mm), ensuring PCB layout compatibility.
Argument
Material of Main Part/Color | PA66/White |
Number of Contacts | 4 Pin |
Rated Current | 9A AC/DC |
Rated Voltage | 250V AC/DC |
Contact Resistance | 20mΩ MAX. |
Withstand Voltage | 1500V AC (1min) |
Insulation Resistance | 1000MΩ MIN. |
Operating Temperature | -25℃ ~ +85℃ |
Core Technology
Key Words:
PH5.5 pitch, 4Pin 2×2, tin-plated brass terminals, high-current connector, PCB socket
Core Advantages:
Modified PA66 housing (UL94V-0 flame retardant): While maintaining low cost, it meets basic heat resistance requirements (-25°C~+85°C) through flame-retardant modification, making it suitable for most consumer electronics and industrial applications.
Technical Features:
Rated current 9A (AC/DC) and voltage rating 250V, meets medium-to-high power requirements.
