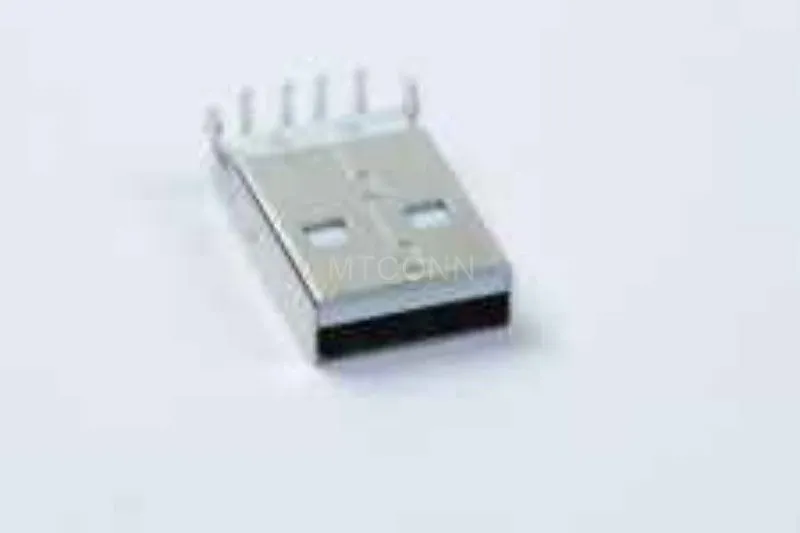

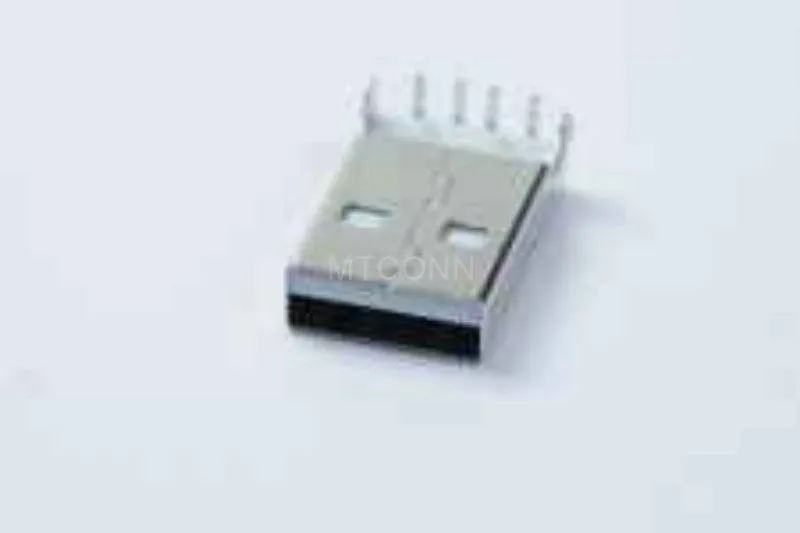

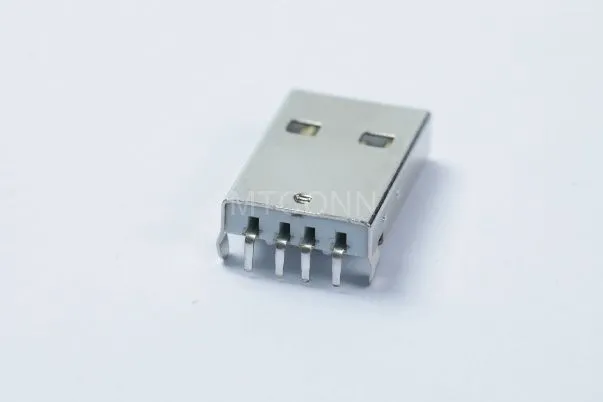

This 4Pin right angle (R/A) USB2.0 features R/A sinking desigh with 4Pin male type, designed for high-density PCB connections in precision instruments, medical equipment, and industrial control boards.
Features
Right - angle horizontal through - hole configuration, ensures stable electrical connections and signal trasmission.
Compact design: right angle horizontal sinking connector design saves space and facilitates high density wiring.
High mechanical strength: PBT material provides superior mechanical strength and durability, extending service life.
High temperature resistance: PBT material with frame resistance UL94V-0 offers excellent heat resistance, making it sutible for high- temperature operating environments.
Environmental compiance: RoHS complicant, free from Hazardous substances, insuring safety and environmental protection.
Argument
Material of Main Part/Color | PBT/White/Black |
Number of Contacts | 4 Pin |
Rated Current | 1.5A |
Rated Voltage | 30V DC |
Contact Resistance | 30mΩ MAX. |
Insertion Force | 3.75KGF (MAX) |
Withdrawal Force | 1.02KGF (MIN) |
Terminal Retenion | 1.2KGF (MIN) |
Wave Sodering Pot | 245℃±5℃ |
Operating Temperature | -25℃ ~ +85℃ |
Through-Hole Sinking USB Connector for High-Volume Production
The right-angle design allows horizontal cable insertion, helping optimize PCB space and reduce overall device height. The sinking structure further improves connector stability and alignment, minimizing stress on solder joints during insertion and removal.
This structure is particularly suitable for devices with limited enclosure space or front-panel interface requirements.
This USB 2.0 Type A connector supports stable data communication and consistent 5V power transmission. Precision contact design ensures low contact resistance, while reinforced terminals enhance mechanical durability under frequent use.
Through-hole DIP pins provide stronger solder joints than surface-mount alternatives, making the connector ideal for long-life products and high-volume manufacturing environments.
Interface standard: USB 2.0 Type A
Contact configuration: 4 pin male
Mounting method: DIP through-hole
Orientation: right angle, sinking type
Rated voltage: 5V
Rated current: suitable for standard USB power delivery
Contact resistance: stable under repeated mating
Durability: designed for long insertion life
Operating temperature range: suitable for industrial and consumer applications
Specifications can be adjusted to meet specific project requirements.
The USB 2.0 Type A right angle DIP male connector is commonly used in products where mechanical strength and long-term reliability are essential, including:
Industrial controllers and automation equipment
Charging stations and power supply modules
Consumer electronics and home appliances
Set-top boxes and multimedia devices
Automotive electronic systems
Smart terminals and embedded systems
Test equipment and instrumentation
These applications often involve long production cycles and consistent component sourcing.
This connector is particularly suitable for customers who require stable, repeatable supply in large quantities, such as:
OEM manufacturers with standardized USB interfaces
EMS and contract manufacturing factories
Industrial equipment suppliers
Automotive electronics manufacturers
Distributors supplying USB connectors in bulk
For these procurement groups, long-term availability, batch consistency, and predictable cost are key considerations.
With standardized tooling and mature production processes, this USB Type A DIP male connector supports large-scale production while maintaining consistent quality across batches.
Manufacturing advantages include:
Stable mold control for consistent dimensions
Automated contact assembly for reliability
In-process inspection for electrical and mechanical performance
Reliable lead times for long-term supply agreements
This makes it suitable for annual purchase contracts and long-running projects.
Each connector is manufactured under strict quality management systems. Performance verification includes dimensional inspection, solderability evaluation, contact resistance testing, and mechanical durability checks to ensure reliability in mass production.
These measures help reduce production risk and ensure stable performance throughout the product life cycle.
For large-volume projects, customization options are available to optimize performance and cost efficiency, including:
Contact plating thickness adjustment
Housing material selection
Pin length and retention structure modification
Packaging customization for automated assembly lines
These options allow procurement teams to align connector performance with specific application requirements.
Technical support is available to assist with PCB footprint design, connector selection, and production optimization. This helps shorten development cycles and ensures smooth integration into existing product designs.
If you are sourcing a USB 2.0 Type A 4 Pin Right Angle DIP Male Connector for high-volume manufacturing or long-term supply, M&T solution offers a reliable balance of performance, durability, and cost efficiency.
Samples, drawings, and bulk pricing information are available upon request.
Core Technology
Key Words:
USB2.0 4Pin, 90-degree DIP, PBT material, RoHS compliant, right-angle sinking connector, high-temperature resistant
Core Advantages:
The 90-degree insertion design optimizes space utilization while maintaining plugging stability and contact reliability.
