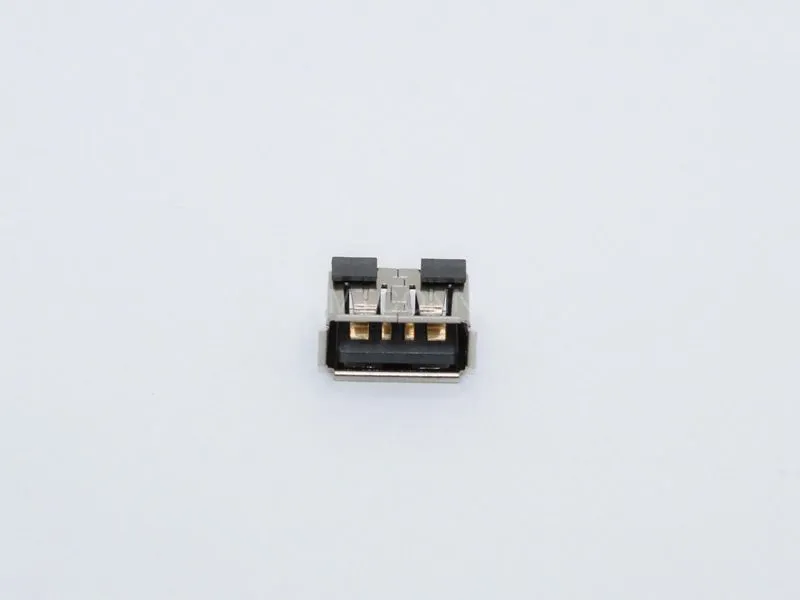

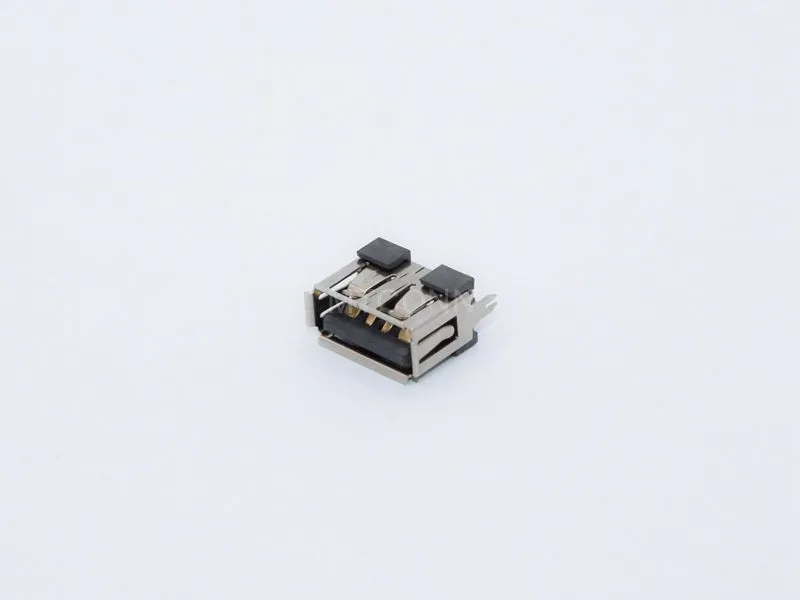

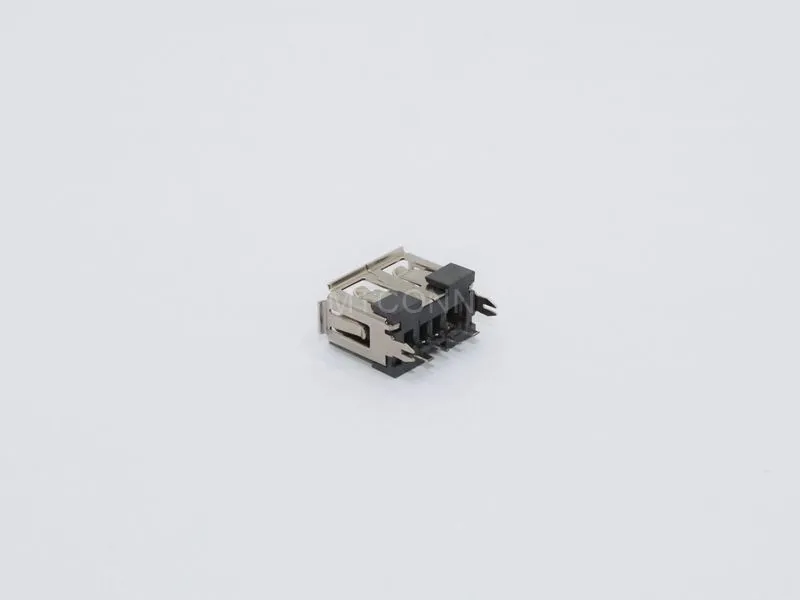

This model is a USB2.0 4 pins T/H (DIP) female connector that complied with RoHS certificate. It adopts shell PBT UL94V-0 flame-retardant material and terminal with copper alloy gold-plated, and is particularly designed for industrial control and consumer electronics devices which require high current. With dual process of gold-plated contact area and Tin-plated soldering area, compatible with signal stability and soldering reliability, usb connector can meet the requirements of harsh environments. Operating temperature range -25℃~+85℃.
Features
5A high current capacity (exceeding 1.5A normal USB port), 30V DC withstand voltage.
Contact resistance ≤30mΩ, ensure efficient signal transmission.
High plug-and-pull life: ≥10,000 cycles (industrial-grade durability).
Insertion and Extraction force standard: Insertion force ≤3.57kgf, extraction force≥1.02kgf, ensure stable connection and easy to maintain.
PBT UL94V-0 shell: high-temperature resistance and flame-retardant, available in black and white.
T/H (DIP) installation, compatible with traditional PCB design.
Argument
| Material of Main Part/Color | PBT/Black/White |
| Number of Contacts | 4 Pin |
| Rated Current | 5A |
| Rated Voltage | 30V DC. |
| Contact Resistance | 30mΩ MAX. |
| Withstand Voltage | 500V AC |
| Insulation Resistance | 100MΩ MIN. |
| Insertion Force | 3.57kgf MAX. |
| Withdrawal Force | 1.02kgf MIN. |
| Operating Temperature | -25℃~ +85℃ |
High-current USB Type A connectors focus on improved power transmission capability and reliability. They are often selected for equipment that needs higher charging performance or stable 5V output under continuous operation.
These connectors typically feature:
Optimized contact plating
Reinforced terminal structure
Lower contact resistance
Improved mechanical retention
Longer mating cycle life
This makes them suitable for environments where standard USB connectors are not sufficient.
Designed to support higher current compared to conventional USB2.0 connectors, ensuring stable and efficient power output for demanding devices.
The T/H (through-hole) structure provides stronger PCB anchoring, ideal for equipment experiencing mechanical stress such as plug force, vibration, or repeated operation.
Precision contacts ensure stable conductivity even under high current loads, reducing heat generation and improving long-term reliability.
Using high-temperature, high-strength materials, M&T connectors maintain their mechanical stability during soldering and continuous operation.
Contact plating options include selective gold plating for enhanced corrosion resistance and signal stability.
Fully compliant with USB 2.0 standards and suitable for devices requiring both data communication and higher power supply capabilities.
M&T high-current USB Type A connectors are used in devices that require stable power delivery and rugged performance. Applications include:
Industrial controllers
POS terminals and kiosks
Automotive electronics
Medical devices
Charging equipment
Smart home systems

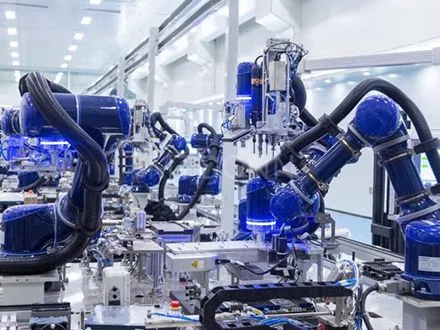

Robotics and automation equipment
Set-top boxes and multimedia systems
High-power handheld devices
Data acquisition equipment
M&T uses advanced production equipment and automated inspection processes to ensure connector stability and consistency.
Each connector is tested for mating cycles, insertion force, heat resistance, vibration, and environmental durability.
Customization options include current rating, pin design, plating thickness, terminal strength, and housing shapes to meet different performance requirements.
M&T maintains reliable production continuity, reducing supply chain risks for manufacturers using USB2.0 Type A connectors in long product cycles.
Designed for device manufacturers and assembly factories, M&T provides high-quality and cost-effective high-current USB connector solutions.
USB2.0 Type A High Current 4P
Vertical Type A High Current
Right-angle Type A High Current
Reinforced high-retention version
Long-shell and short-shell versions
T/H through-hole
Hybrid T/H + SMT
Customized strengthened anchor types
High-current version
Industrial-grade high-reliability version
Automotive-grade option
Buying high-current connectors requires evaluating product reliability, compliance, and long-term availability.
M&T helps procurement engineers and buyers by providing:
Rapid engineering response
Samples for testing
Long-term supply guarantee
Stable lead time and production capacity
Customization for special project requirements
Whether used for new device development, high-current charging applications, industrial equipment, or long-running consumer products, M&T offers dependable USB2.0 4P T/H High Current USB Type A connectors with professional engineering support.
