USB Connector

Home / Products/USB Connector/USB Type C Connector 16Pin Vertical T/H 10.2mm Length Waterproof

MTUB26-91643B-45A78

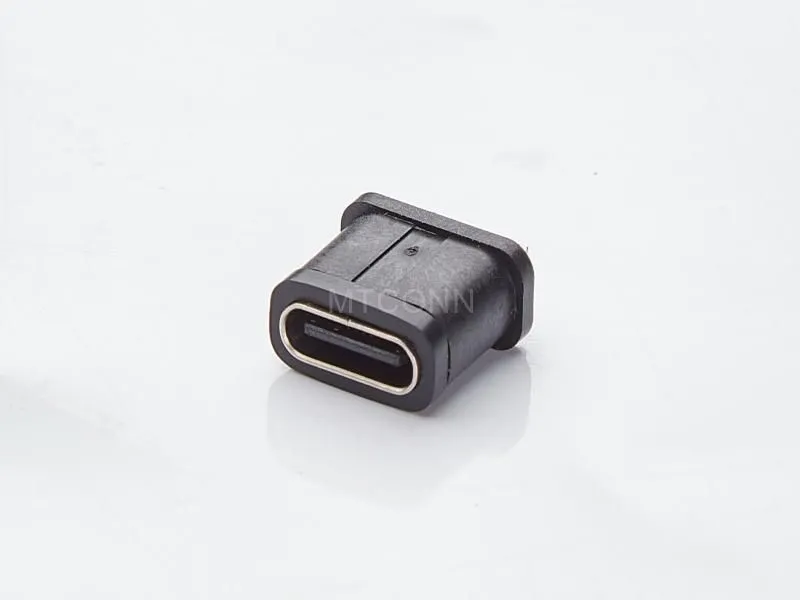

USB Type C Connector 16Pin Vertical T/H 10.2mm Length Waterproof

Share:

Inquiry Now Next Product

Features Argument Core Technology Application Scenarios Product Features

Argument

Housing Material /Color	PA9T / Black
Contact Termimal	C7025
Metallic Shell	SUS304
Waterproof Ring	Silica Gel
Rating Current	3.0A
Voltage Rating	5.0V
Insulation Resistance	100MΩ MIN
Contact Resistance	30MΩ MAX
Dielectric withstanding Voltage	100V AC / Minite
Insertion Force	0.5-20Kgf
Withdrawal Force	0.8-20Kgf MIN
Durability	10,000 cycles(MIN)
Waterproof	IP68
