Argument
Housing Material /Color | LCP / Black |
Contact Termimal | Brass |
Metallic Shell | Brass |
Number of Contacts | 4 Pin |
Rating Current | 1.5A |
Voltage Rating | 30V DC |
Insulation Resistance | 100MΩ MIN |
Contact Resistance | 30MΩ MAX |
Dielectric withstanding Voltage | 500V AC / Minite |
Insertion Force | 3.57Kgf MAX |
Withdrawal Force | 1.02Kgf MIN |
Operating Temperature | - 55°C ~ + 85°C |

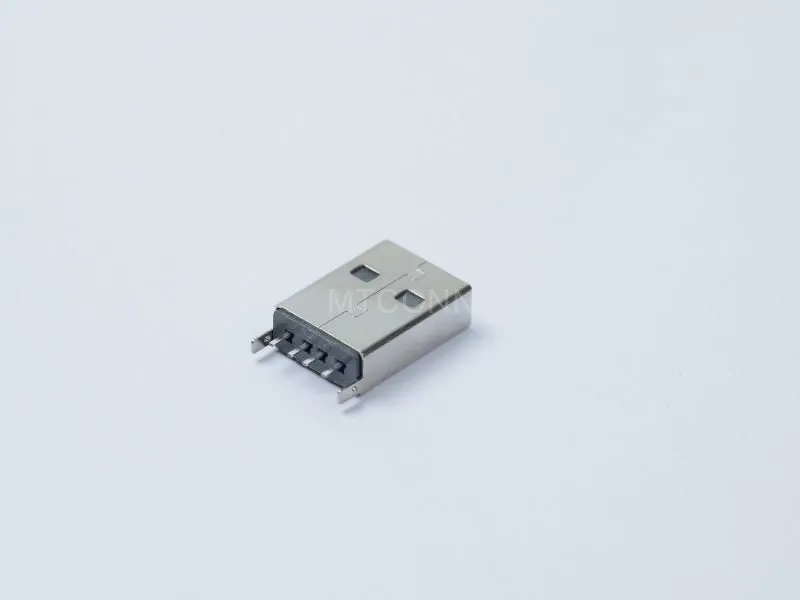

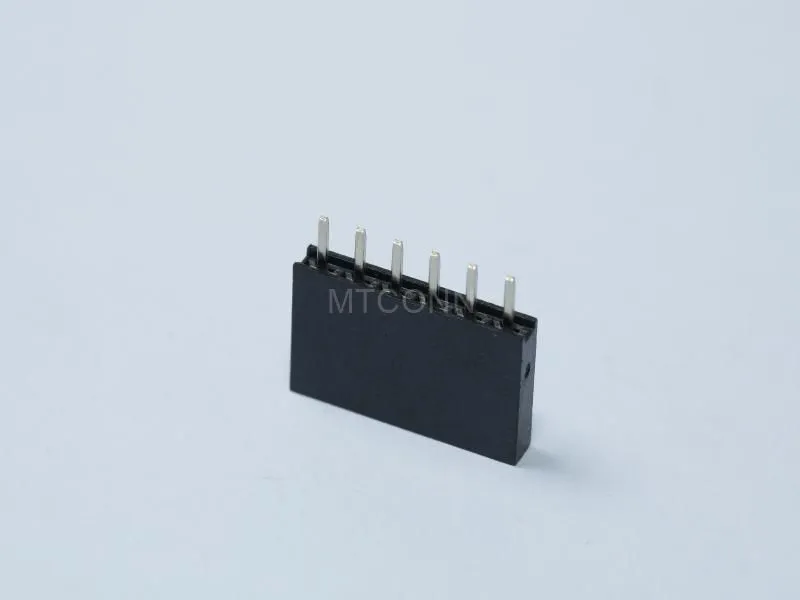

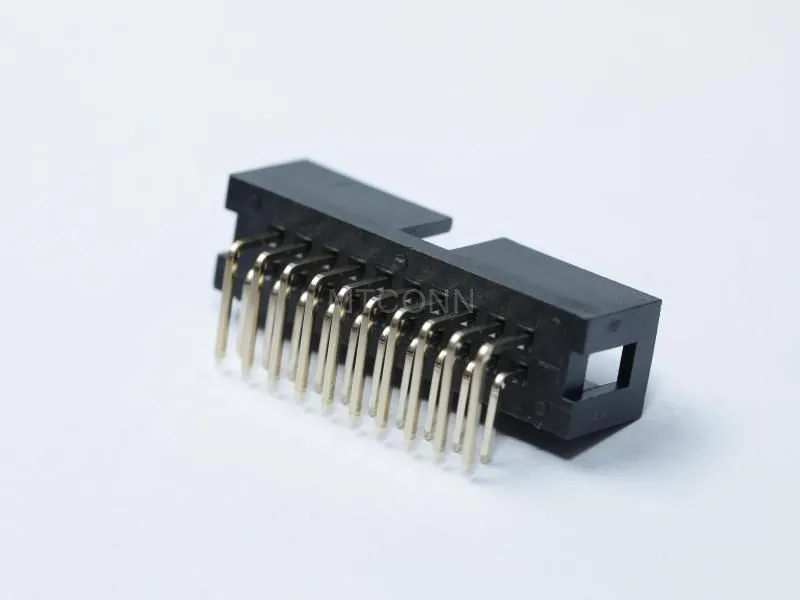

Related Products
