USB Connector

Home / Products/USB Connector/USB 2.0 Connector 4 Pin R/A T/H 19.3mm Length Side Insert

MTUB04-90411B-13A13

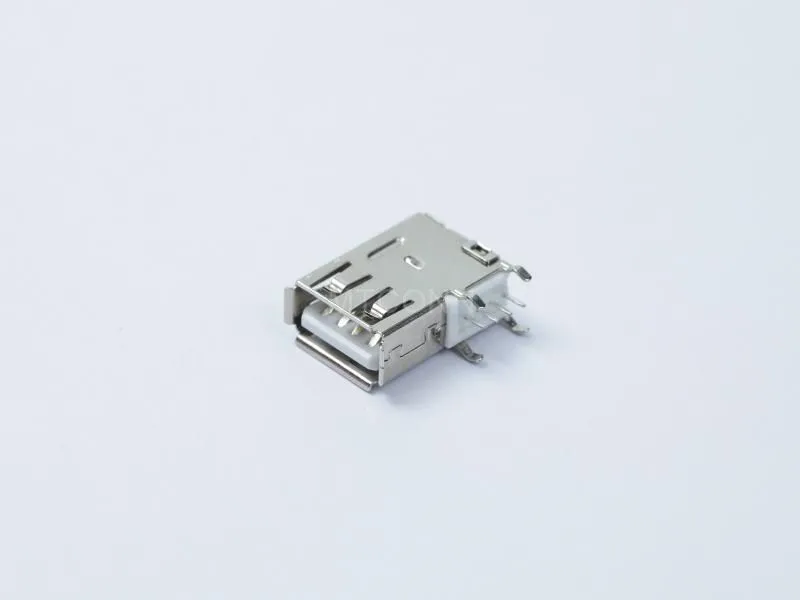

USB 2.0 Connector 4 Pin R/A T/H 19.3mm Length Side Insert

Share:

Inquiry Now Next Product

Features Argument Core Technology Application Scenarios Product Features

Argument

Housing Material /Color	LCP/ Beige
Contact Termimal	Copper Alloy
Metallic Shell	SPCC
Rating Current	1.5A
Voltage Rating	30V DC
Insulation Resistance	1000MΩ MIN
Contact Resistance	20MΩ MAX
Dielectric withstanding Voltage	500V AC / Minite
Temperature	-20°C ~ + 85°C

Related Products

Pin Header PH2.54mm Dual Row 2*3Pin Gold Plated Right Angled 90 Degree SMT

Pin Header PH2.54mm Dual Row 2*3Pin Gold Plated Right Angled 90 Degree SMT

Mini USB Female Connector

Mini USB Female Connector

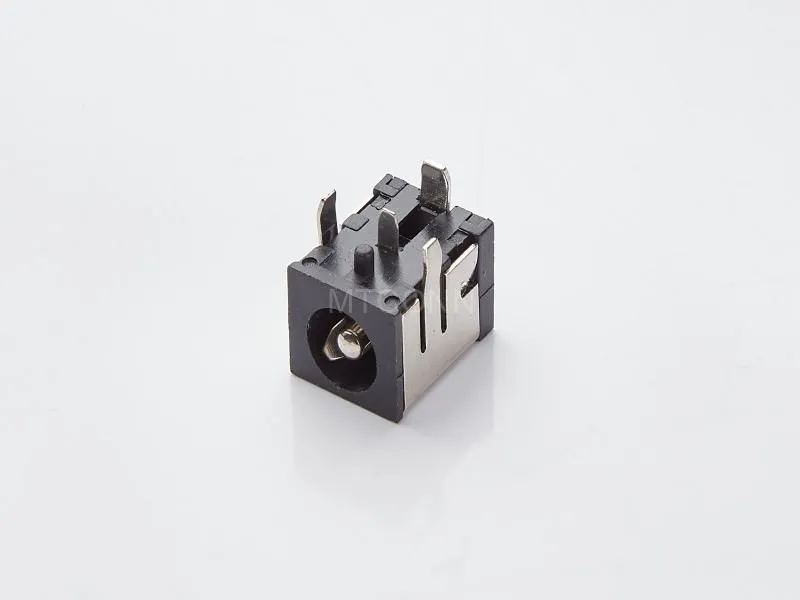

DC Jack Connector 2.5mm 2Pin 90 Degree DIP
