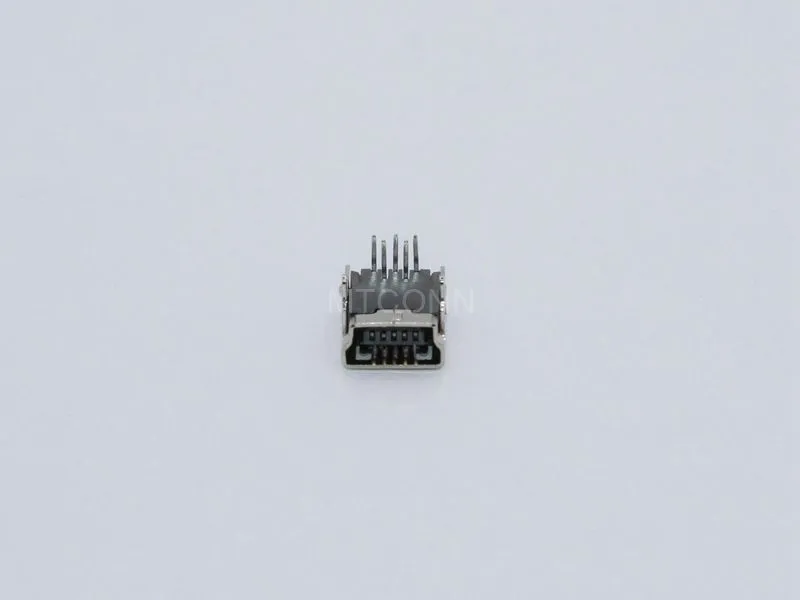

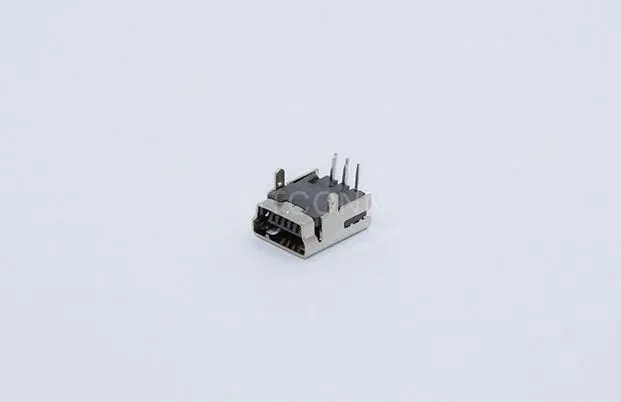

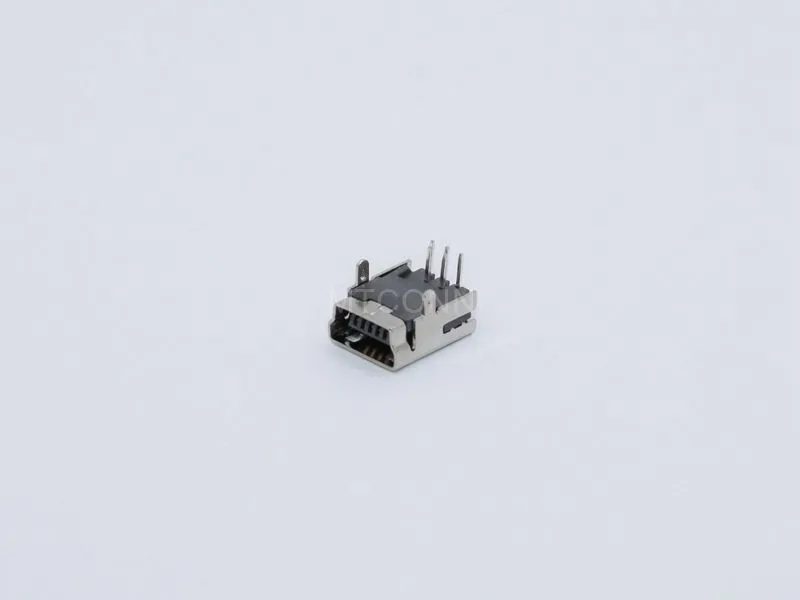

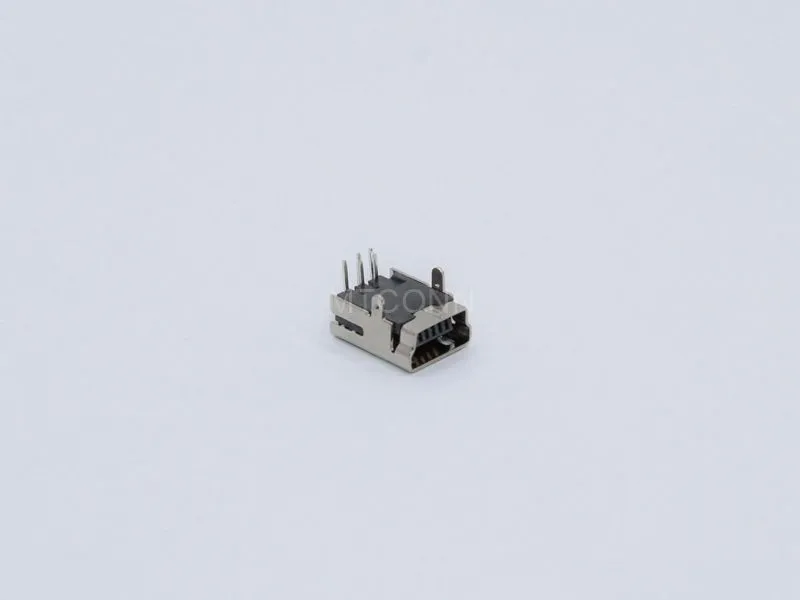

This model is a Mini USB R/A T/H DIP female connector, a tyoe of usb connector that complied with RoHS certificate. It adopts shell LCP UL94V-0 flame-retardant material and terminal with copper alloy gold-plated, and is specially designed for electronic devices that that require right angle connections. and is particularly suitable for industrial equipment and consumer electronics products with limited space.
Features
1.5A/ terminal current-carrying capacity, 30V DC withstand voltage.
90°R/A DIP design: save lateral space and is suitable for compact layouts
Insertion and extraction force standard: insertion force ≤3.57kgf, extraction force≥0.7kgf, ensure stable connection and easy to maintain.
Terminal holding force≥1.0kgf: To prevent welding detachment.
LCP UL94V-0 shell: high-temperature resistance and flame-retardant, it is superior to ordinary PA raw material.
The shell is nickel-plated( material SPCC/C2680 ): enhance wear resistance.
Argument
| Material of Main Part/Color | LCP/Black |
| Number of Contacts | 5 Pin |
| Rated Current | 1.5A/Contact Terminal |
| Rated Voltage | 30V DC |
| Contact Resistance | 30mΩ Max. |
| Withstand Voltage | 500V AC (1Min) |
| Insulation Resistance | 1000MΩ MIN. |
| Insertion Force | 3.57kgf MAX. |
| Withdrawal Force | 0.7kgf MIN. |
| Operating Temperature | -25℃~ +85℃ |
Many manufacturers continue selecting Mini USB because of its compact form factor and proven performance. Mini USB interfaces offer mechanical stability, mature compatibility, cost efficiency, and long-term availability—important for industries where redesigning PCBs or certification updates would be costly.
Mini USB connectors from M&T are designed to withstand repeated plug-and-unplug cycles, ideal for devices requiring stable mechanical retention and long durability.
Signal integrity is optimized through precision-made contacts, providing reliable data transfer for industrial control, POS machines, measuring instruments, and portable devices.
Available in Mini USB Type-B and Mini USB 5-pin configurations, supporting both legacy and industrial equipment upgrades.
To meet diverse PCB design needs, M&T provides:
SMT Mini USB Female Connector
DIP Mini USB Female Connector
Hybrid SMT + DIP Reinforced Types
Horizontal and vertical orientations
Gold-plated or selective-plated contacts improve corrosion resistance and maintain stable conductivity in harsh environments.
M&T supports customized connector structures, materials, terminal plating thicknesses, mechanical strength, and environmental sealing levels based on project needs.
Interface type: Mini USB Type-B Female
Pins: 5-pin
Rated voltage: 30V
Rated current: 1A max
Contact resistance: ≤30mΩ
Insulation resistance: ≥100MΩ
Withstanding voltage: 100V AC for 1 minute
Operating temperature: −20°C to +85°C
Plating options: gold-plated / selective-plated / tin-plated
Mounting type: SMT / DIP / hybrid
(Actual specifications can be customized according to your design.)
M&T Mini USB Female Connectors are widely used in:
Handheld terminals
GPS devices
Medical equipment
Industrial control systems
Automotive electronics
POS and barcode scanners
Security equipment
Smart meters
Data loggers
Consumer electronics
Upgrade or replacement for legacy Mini USB systems
M&T operates advanced connector production lines with strict quality control, ensuring stable mass production and consistent quality.
Professional engineers provide design guidance, footprint recommendations, and customized connector solutions to fit your PCB layout and mechanical structure.
Connectors are tested for insertion cycles, vibration, temperature resistance, and environmental reliability to meet industrial-grade requirements.
We support custom housing materials, pin structures, plating thicknesses, packaging methods, and customized Mini USB connector variants.
M&T offers cost-effective bulk procurement solutions, making it suitable for device manufacturers, assembly factories, and distributors.
To meet different procurement needs, M&T offers a complete Mini USB female connector lineup:
Mini USB Type-B Female
Mini USB AB Female
Reinforced Mini USB Female
Waterproof Mini USB Female (customizable)
SMT Mini USB Female
DIP Mini USB Female
Vertical Mini USB Female
Right-angle Mini USB Female
Consumer-grade
Industrial-grade
Automotive-grade (customizable)
If you need a complete catalog or specification sheets, I can help generate them.
Procurement teams often focus on reliability, pricing, delivery time, and long-term availability.
M&T provides:
Quick sample delivery
Stable annual supply capacity
Long-term connector continuity (no sudden discontinuation)
Customized packaging for automatic assembly
Professional technical support and after-sales service
Whether you need Mini USB connectors for new projects, mass production, or legacy equipment replacement, M&T provides stable, cost-efficient, and customizable solutions.
Core Technology
Key words:
DIP Mini USB Female
Core Advantage:
Ensure stable signal transmission in damp, vibrating, and extremely low temperature conditions, specially designed for harsh environment.
