USB Connector

Home / Products/USB Connector/Micro USB Connector 5 Pin 6.3mm Length Horizontal SMT Type

MTUB82-90500B-08108

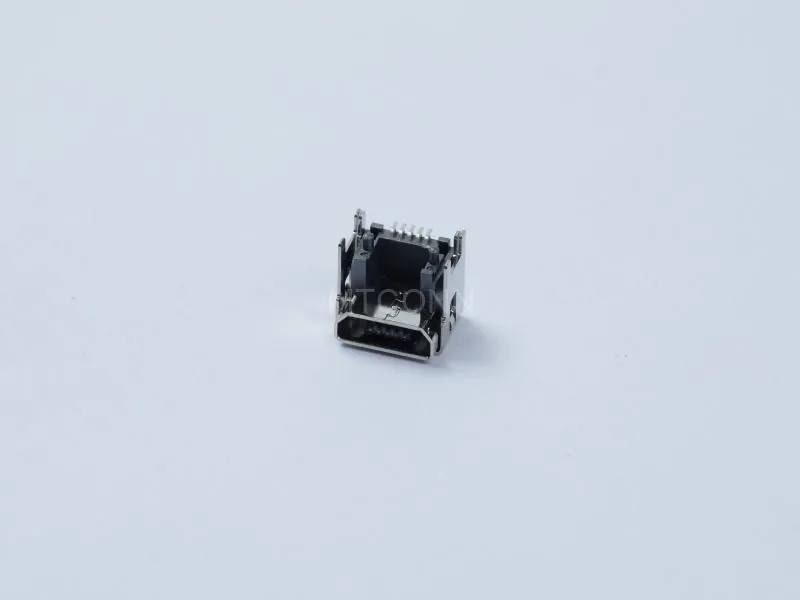

Micro USB Connector 5 Pin 6.3mm Length Horizontal SMT Type

Share:

Inquiry Now Next Product

Features Argument Core Technology Application Scenarios Product Features

Argument

Housing Material /Color	LCP / Black
Metal Shell	SUS
Terminal Material	Copper Alloy
Cover	SUS
Number of Contacts	5 Pin
Rating Current	1.0A
Rating Voltage	30V DC
Contact Resistance	50MΩ MAX
Dielectric withstanding Voltage	500V AC / Minite
Insulation Resistance	100MΩ MIN
Insertion Force	35N MAX
Withdrawal Force	10N MIN
Temperature	- 25°C ~ + 85°C
Durability	10,000 cycles

Related Products

Female Header Double Row PH2.0mm 4*2Pin Vertical 180 Degree SMT

Female Header Double Row PH2.0mm 4*2Pin Vertical 180 Degree SMT

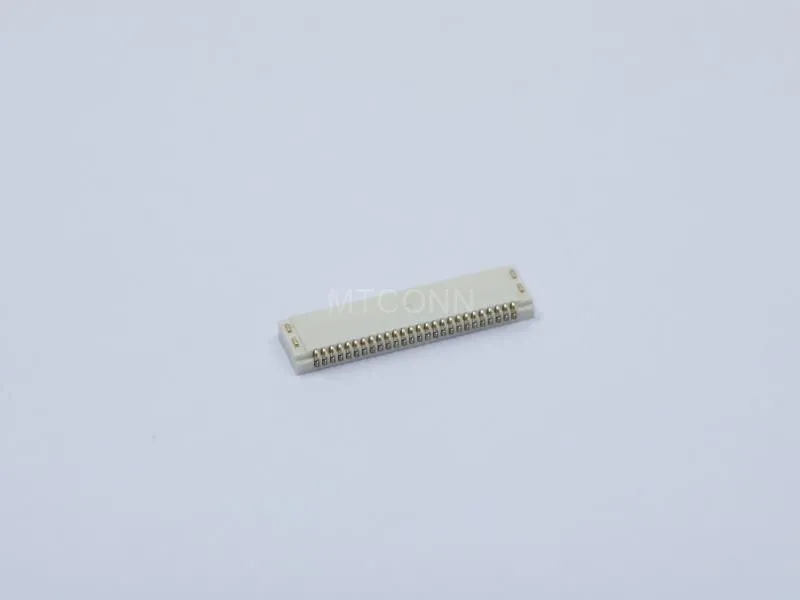

FPC Connector 0.5mm Pitch 26Pin 1.2mm Height Right Angle SMT Upper & Bottom Contact Front insert
