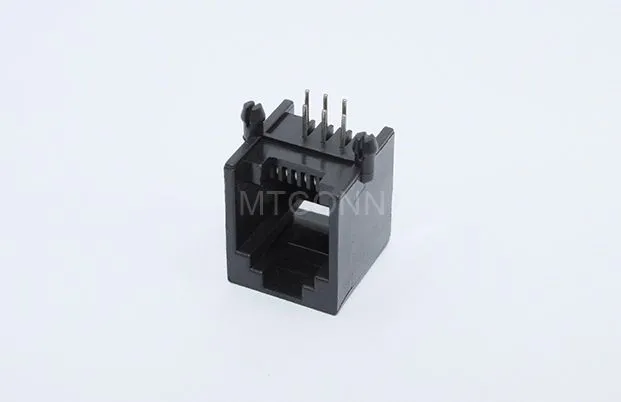

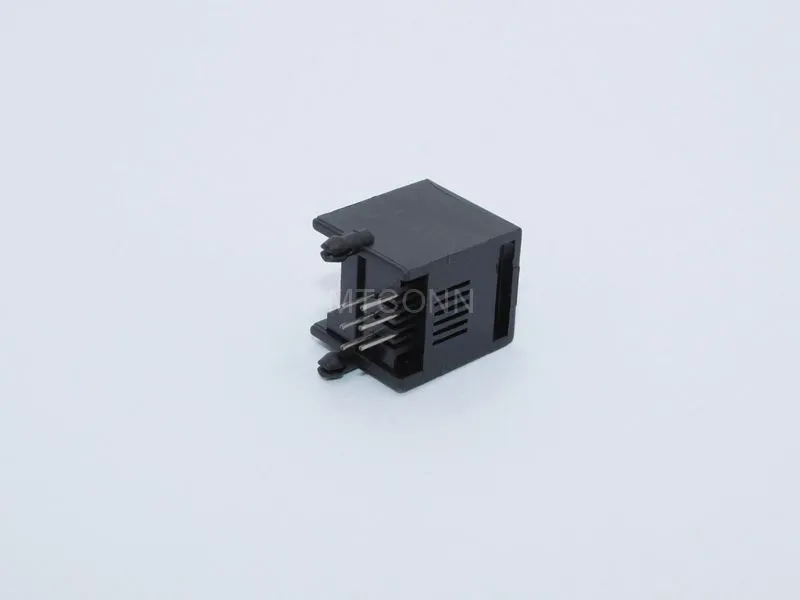

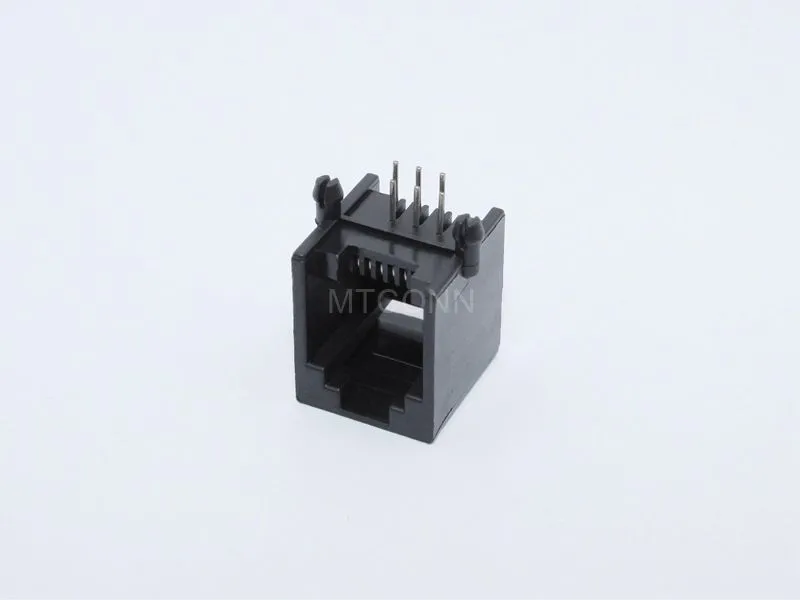

The RJ12 connector is a 6-position, 6-contact (6P6C) modular connector, typically housed in a compact, trapezoidal plastic shell (black or white). It is widely used in telecommunications and data transmission applications due to its small form factor and ease of installation.
Features
Versatile Connectivity: Supports fax machines, modems, and other communication devices for data transfer.
6P6C Configuration: Ensures reliable signal transmission.
90° DIP Soldering: Facilitates vertical PCB mounting for space-efficient designs.
Argument
| Material of Main Part/Color | LCP/Black |
| Number of Contacts | 6 Pin |
| Rated Current | 1.5AMP |
| Rated Voltage | 125VAC RMS |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | 500MΩ Min. |
| Withstand Voltage | 1000V AC RMS 50Hz.1MIN. |
| Operating Temperature | -40°C~ 85°C |
Core Technology
Key word:
RJ12 Connector
Core Advantage:
This connector is designed for compact, high-density PCB layouts, enhancing production efficiency and soldering quality while minimizing board space occupation.
Technical Features:
In traditional telephone systems, the RJ12 connector is commonly employed to interconnect multiple extensions, enabling both internal communication and shared external line access. It also serves as a critical interface for telephone switches and PBX systems, ensuring reliable voice signal transmission.
