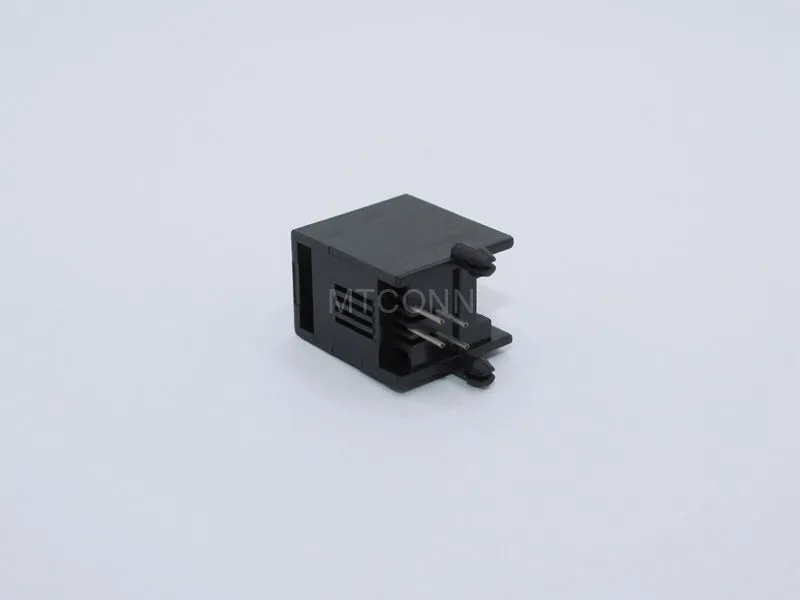

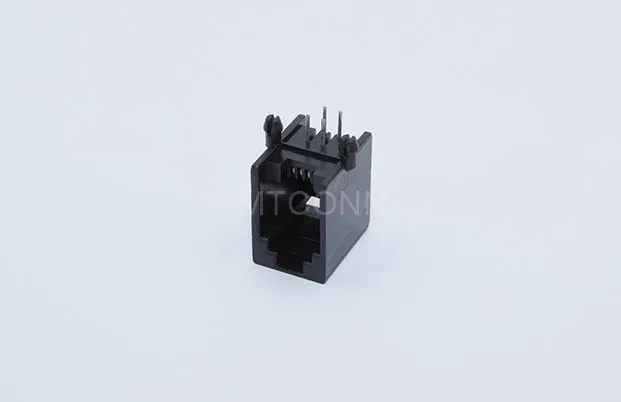

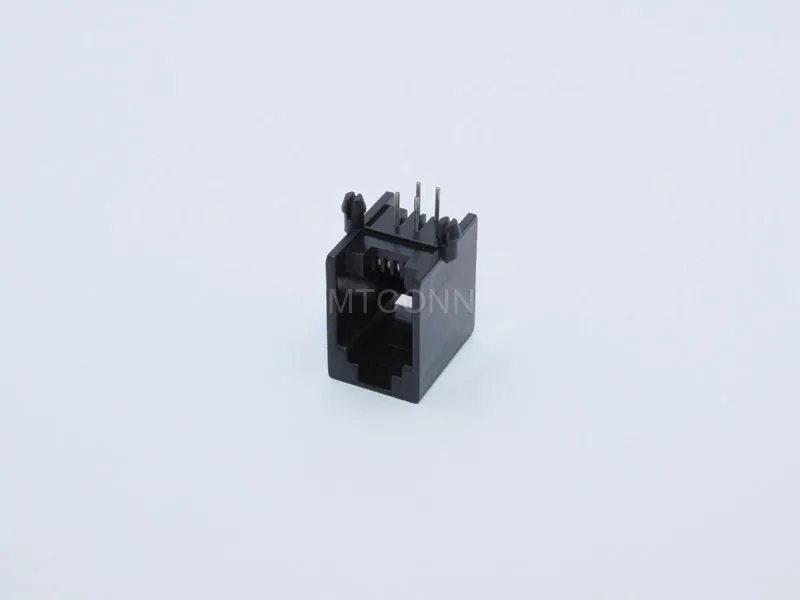

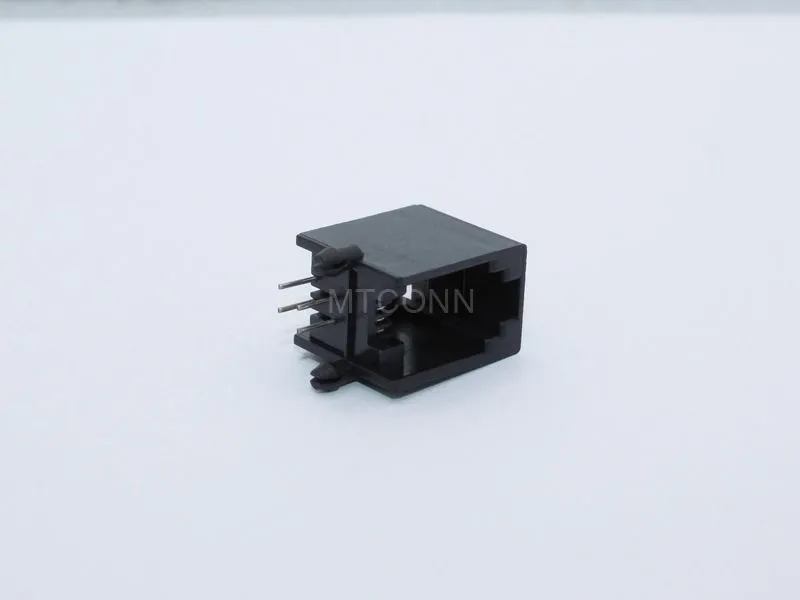

The RJ (Registered Jack) designation originates from the Bell System's USOC (Universal Service Ordering Code). The RJ11 connector, specifically the 6P6C configuration (6 positions, 6 contacts), represents a standardized modular interface developed by Western Electric for telecommunication applications.
Features
LED Indicator: Equipped with status illumination.
6P6C Configuration: Standard telephone interface format.
90° DIP Termination: Vertical PCB mounting orientation.
Argument
| Material of Main Part/Color | PBT/Black |
| Number of Contacts | 6 Pin |
| Rated Voltage | 125VAC RMS |
| Rated Current | 1.5A |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | 500MΩ MIN. |
| Withstand Voltage | 1000V AC (1Min) |
| Operating Temperature | 0°C~ 75°C |
Core Technology
Key Word:
RJ11 Connector
Core Advantage:
Standard interface for home telephone systems, connecting telephones to phone lines to enable voice communication. Fax machines utilize the RJ11 interface to connect with telephone lines for sending and receiving fax signals.
Technical Features:
Designed for low-bandwidth communication scenarios with limited transmission performance. Typically supports data rates ranging from tens to hundreds of Kbps, significantly lower than RJ45 interfaces used for network data transmission.
