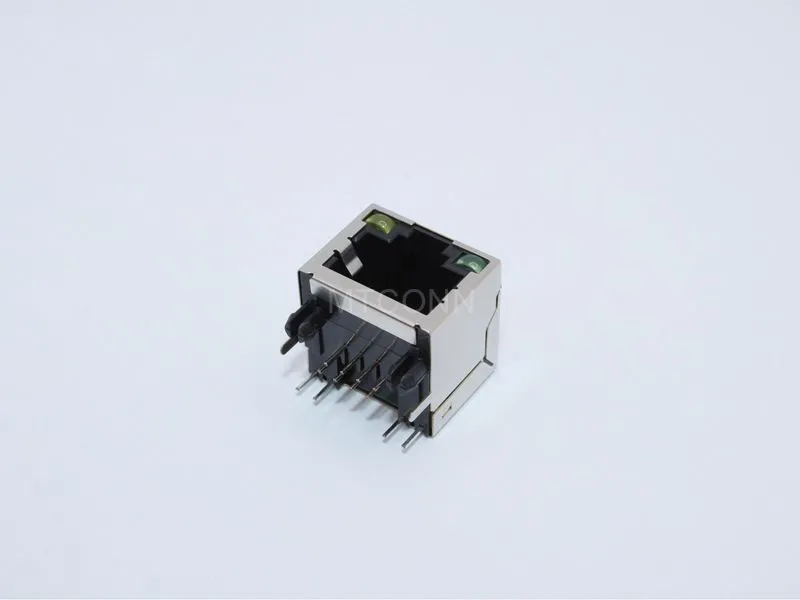

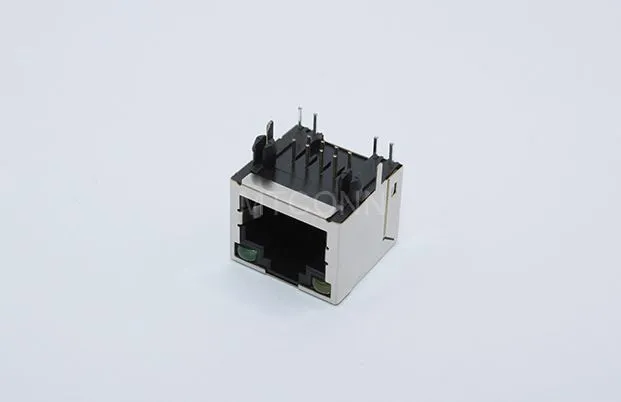

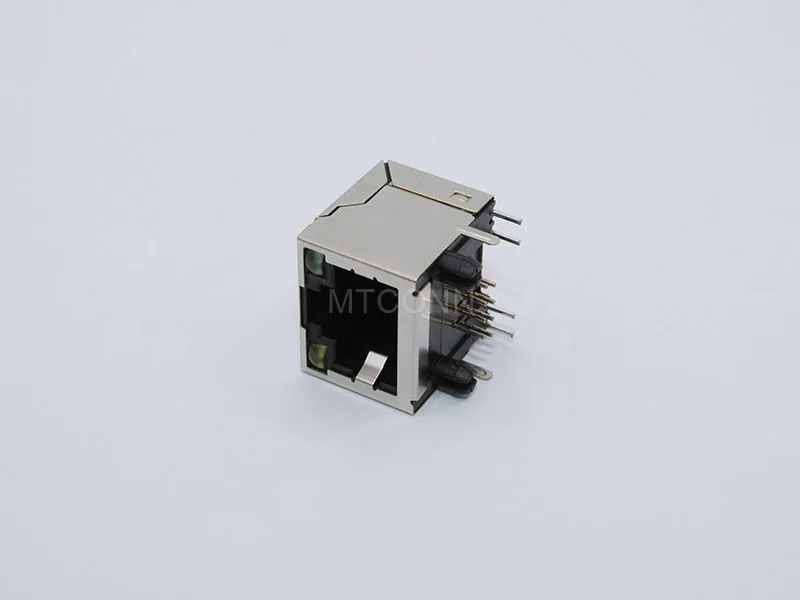

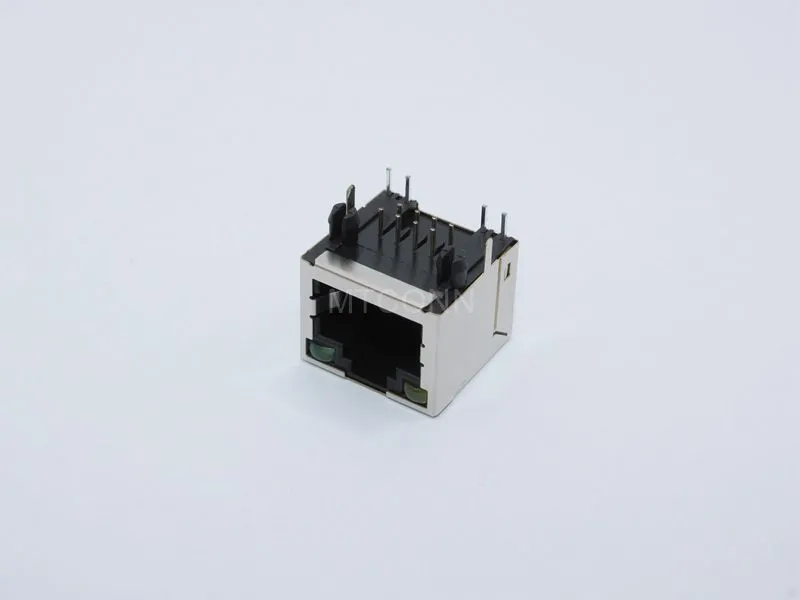

The RJ45 connector, commonly known as a modular plug, features 8 grooves and 8 metal contacts for terminating data cables. It enables connections and modifications between devices and patch panel modules. The gold-plated (typically 50μm) triple-fork contact springs comply with Cat5e transmission standards and offer anti-loosening, insertion/extraction durability, and self-locking functions.
Features
Compatible with fax machines, modems, and other devices for data transmission and communication.
8P8C structure.
90° DIP (Dual In-line Package) soldering method.
Argument
| Material of Main Part/Color | LCP/Black |
| Rated Voltage | 125V AC |
| Rated Current | 1.5 AMP |
| Contact Resistance | 30mΩ MAX. |
| Insulation Resistance | 500MΩ MIN. |
| Withstand Voltage | 1000V AC RMS 50Hz.1MIN. |
Core Technology
Key word:
RJ45 Connector

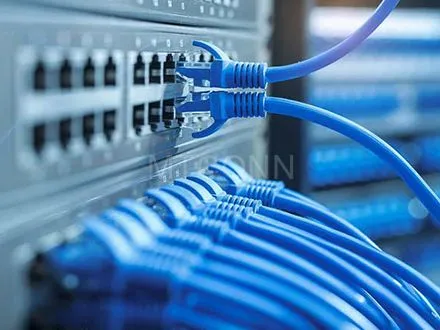

Ethernet Networking:
Widely used for high-speed data transfer between computers, servers, switches, and routers, serving as a critical interface for LAN (Local Area Network) construction.
Technical Features:
Available in shielded and unshielded variants. Shielded RJ45 connectors feature an outer shielding layer to reduce electromagnetic interference (EMI), ideal for environments with high EMC requirements. Unshielded RJ45 is more common for standard networking applications.
Application Scenarios
