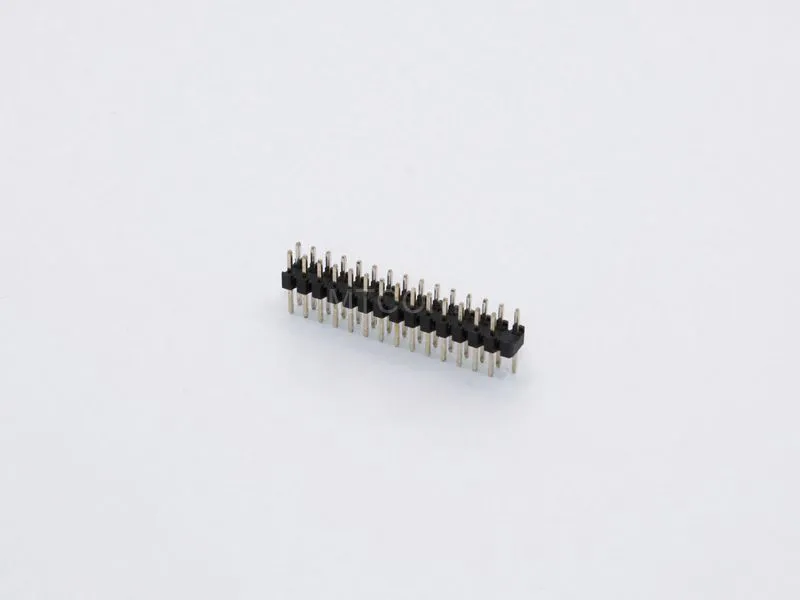

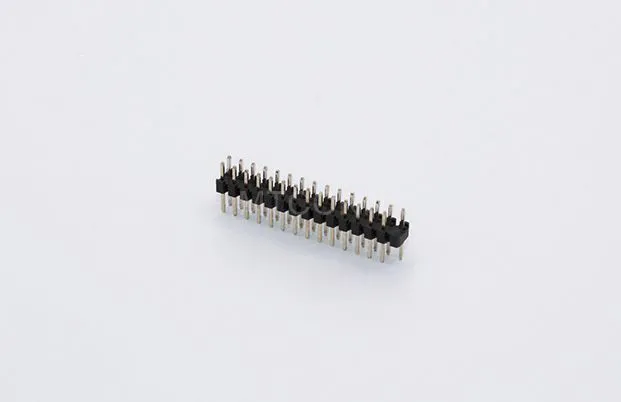

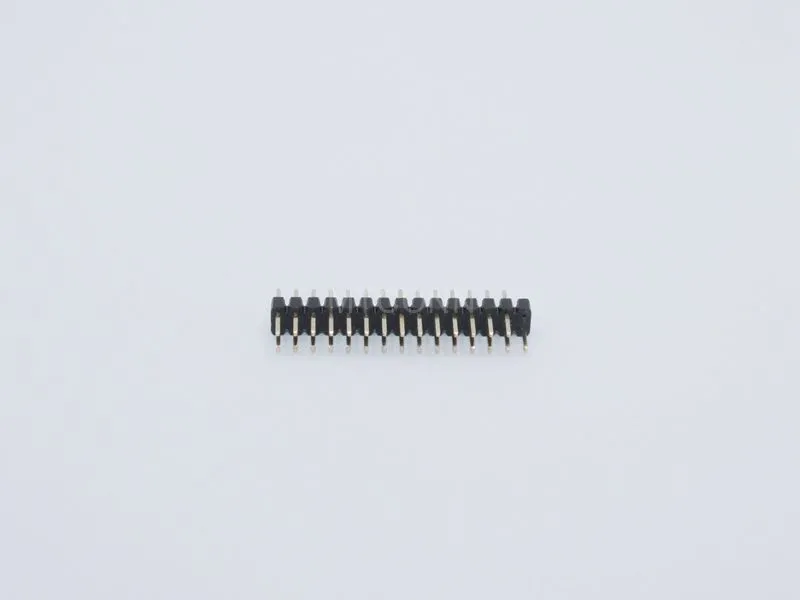

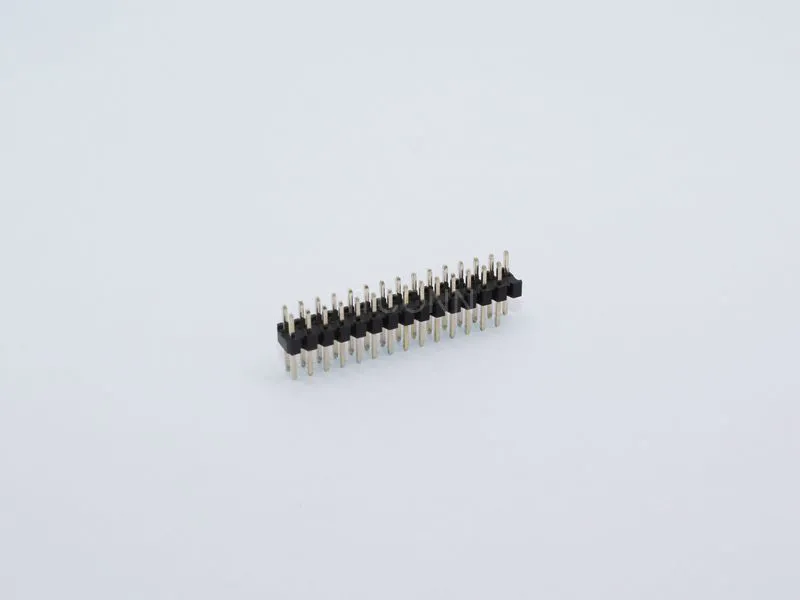

This dual-row through-hole (DIP) pin header features a 2.0mm pitch design with 15 pins per row (30 pins total), engineered for high-density PCB connections in precision instruments, medical equipment, and industrial control boards.
Features
Maximum contact resistance: 20mΩ.
Withstands 500V AC (1 minute) with insulation resistance ≥1000MΩ.
Dual-row through-hole configuration.
DIP structure: PCB through-hole soldering ensures high mechanical strength and vibration resistance.
PA6T material (UL94 V-0 flame-retardant), high-temperature resistant and environmentally compliant.
Operating temperature range: -40°C to +105°C for extreme environments.
Copper alloy base with gold plating for oxidation/wear resistance and extended lifespan.
Argument
| Material of Main Part/Color | PA6T/Black |
| Number of Contacts | 15 Pin |
| Rated Current | 2.0A AC/DC |
| Contact Resistance | 20mΩ MAX. |
| Withstand Voltage | 500 V AC (1Min) |
| Insulation Resistance | 1000MΩ MIN |
| Operating Temperature | -40℃~ +105℃ |
Core Technology
Key words:
Dual-row DIP Pin Header
Core Advantage:
Designed for stable signal transmission in harsh conditions (humidity, vibration, extreme temperatures)

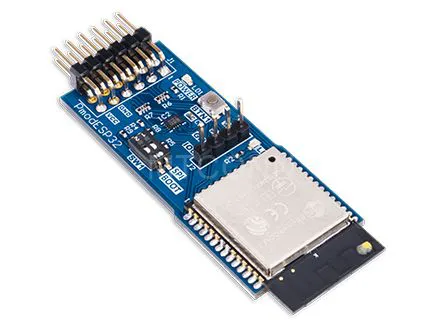

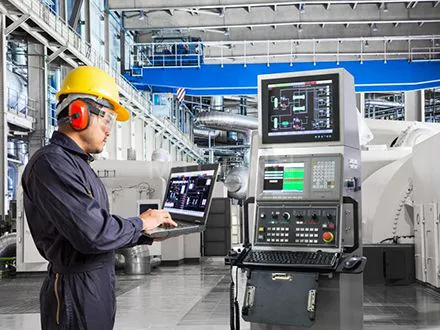

Application Scenarios

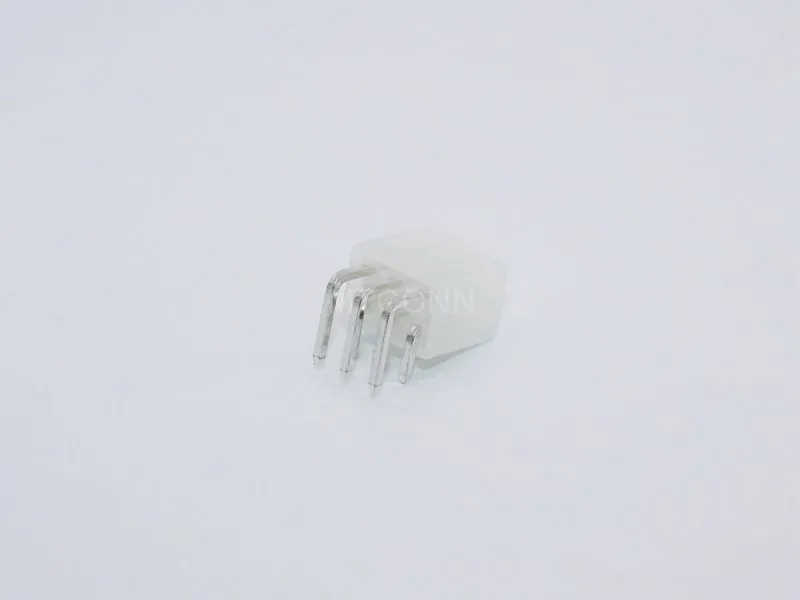

Related Products
