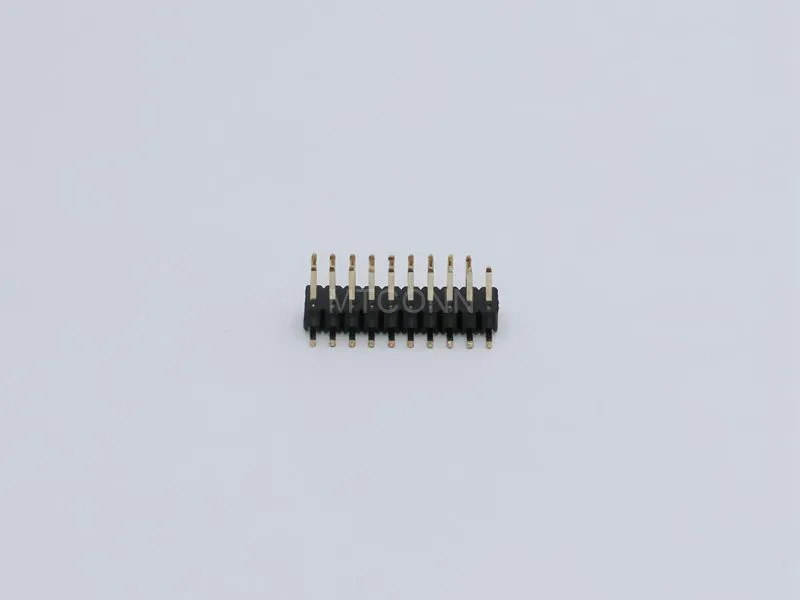

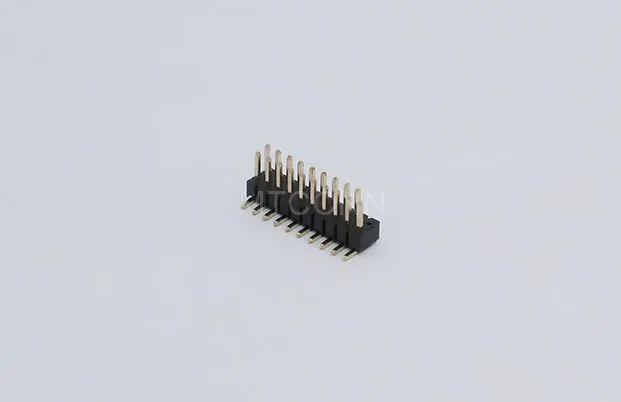

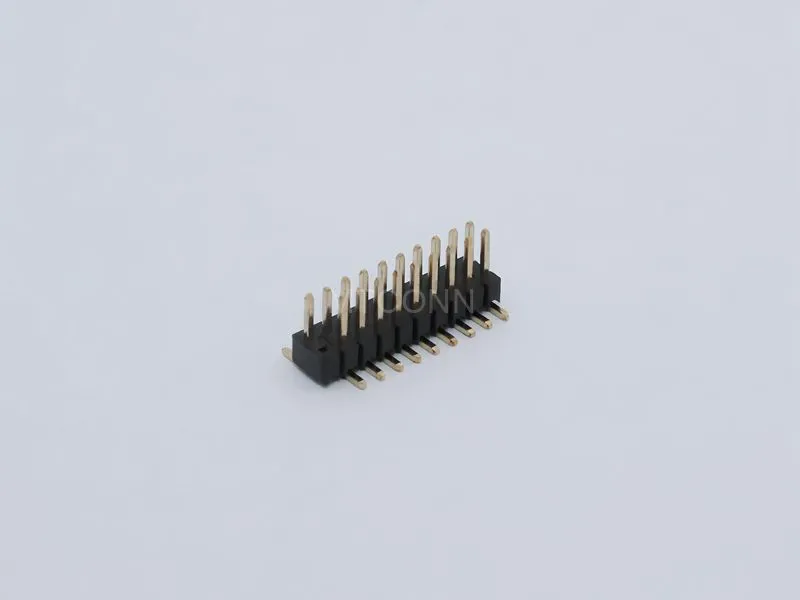

This 10Pin dual-row through-hole (DIP) pin header features a 1.27mm pitch design with 10 pins per row (20 pins total), designed for high-density PCB connections in precision instruments, medical equipment, and industrial control boards.
Features
Maximum contact resistance: 20mΩ.
Withstands 500V AC (1 minute) with insulation resistance ≥1000MΩ.
Dual-row through-hole configuration.
DIP structure: PCB through-hole soldering ensures high mechanical strength and vibration resistance.
PA6T material (UL94 V-0 flame-retardant), high-temperature resistant and environmentally compliant.
Operating temperature range: -40°C to +105°C for extreme environments.
Brass base with gold plating for oxidation/wear resistance and extended lifespan.
Argument
| Material of Main Part/Color | PA6T/Black |
| Number of Contacts | 10 Pin |
| Rated Current | 1.0A AC/DC |
| Contact Resistance | 20mΩ MAX. |
| Withstand Voltage | 500V AC FOR ONE MINUTE |
| Insulation Resistance | 1000MΩ MIN |
| Operating Temperature | -40℃~ +105℃ |
Core Technology
Key Words:
Dual-row DIP Pin Header
Core Advantage:
Engineered for stable signal transmission in harsh conditions (humidity, vibration, extreme temperatures)
Application Scenarios
