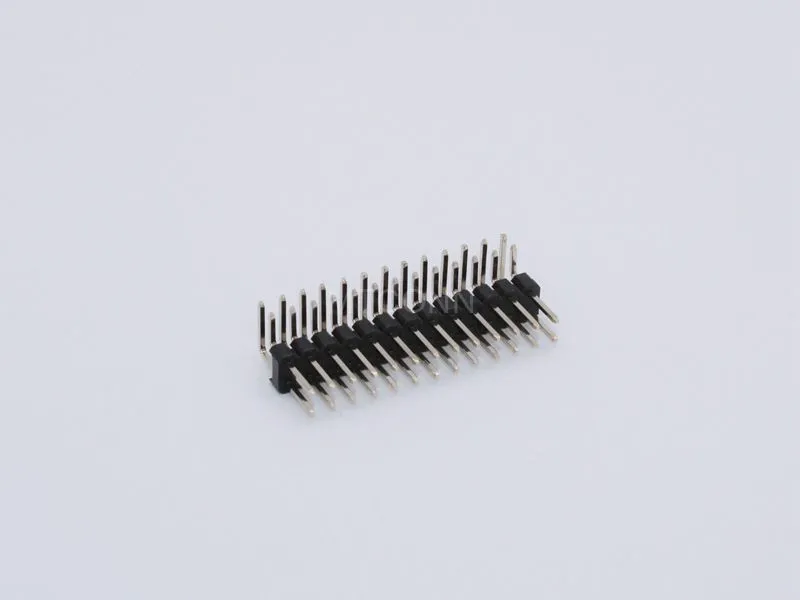

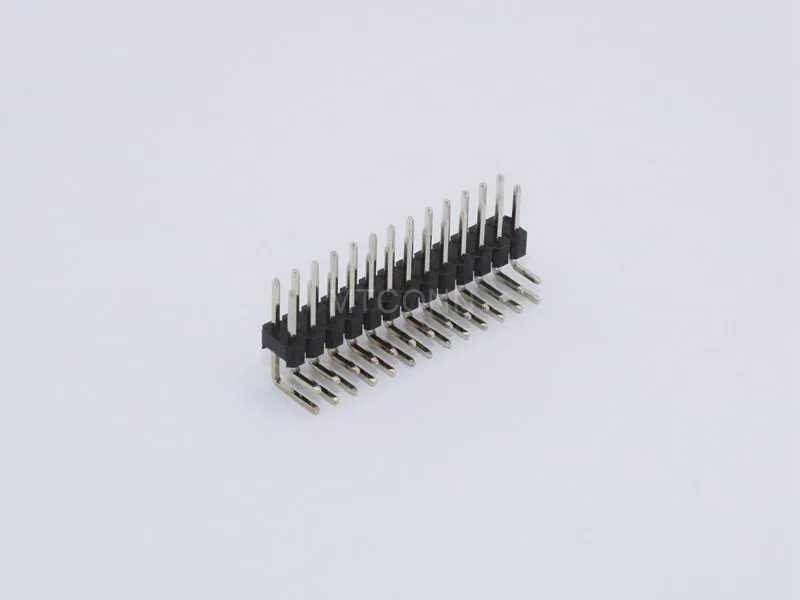

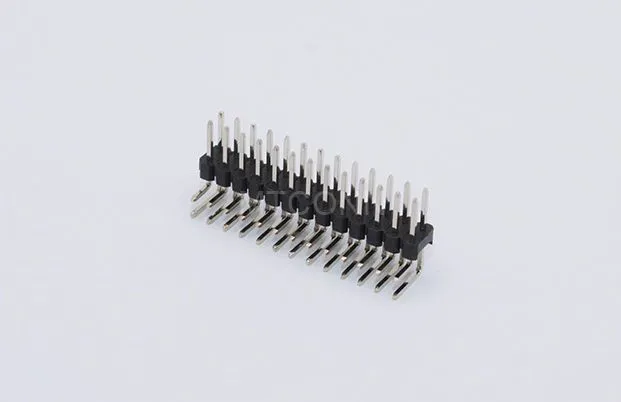

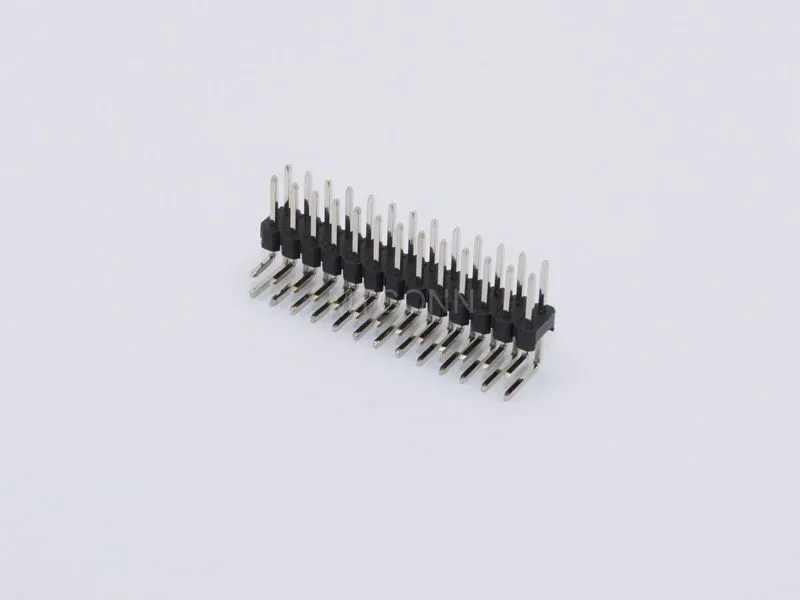

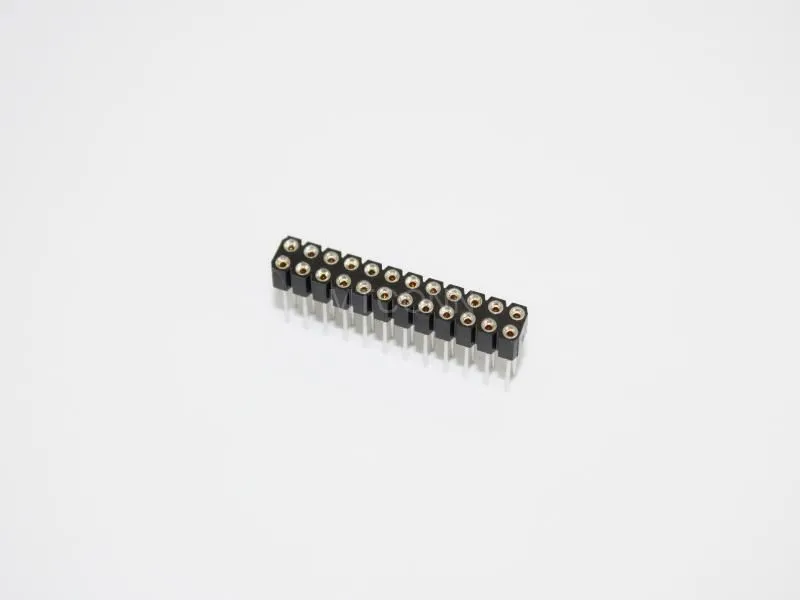

This dual-row right-angle pin header features a standard 2.54mm pitch with 13 pins per row (26 pins total). The 90° bent pin configuration enables compact PCB edge mounting or space-constrained horizontal interconnections, making it ideal for industrial controls, consumer electronics, and communication equipment.
Features
Maximum contact resistance: 20mΩ
High dielectric strength: 1000V AC (1 minute) with insulation resistance ≥1000MΩ
Industry-standard 2.54mm pitch: Fully compatible with common headers/jumpers
90° right-angle design: Saves vertical space for board-to-board/wire-to-board horizontal connections
UL94 V-0 flame-retardant black PA9T housing
Extended temperature range (-40°C to +105°C) for harsh environments
Argument
| Material of Main Part/Color | PA9T/Black |
| Number of Contacts | 13 Pin |
| Rated Current | 3.0A AC/DC |
| Contact Resistance | 20mΩ MAX. |
| Withstand Voltage | 1000 V (Min) |
| Insulation Resistance | 1000MΩ MIN |
| Operating Temperature | -40℃~ +105℃ |
Core Technology
Key words:
Dual-row Right Angled DIP Pin Header
Core Advantage:
Space-saving horizontal interconnection solution for PCB edge or confined-space applications
