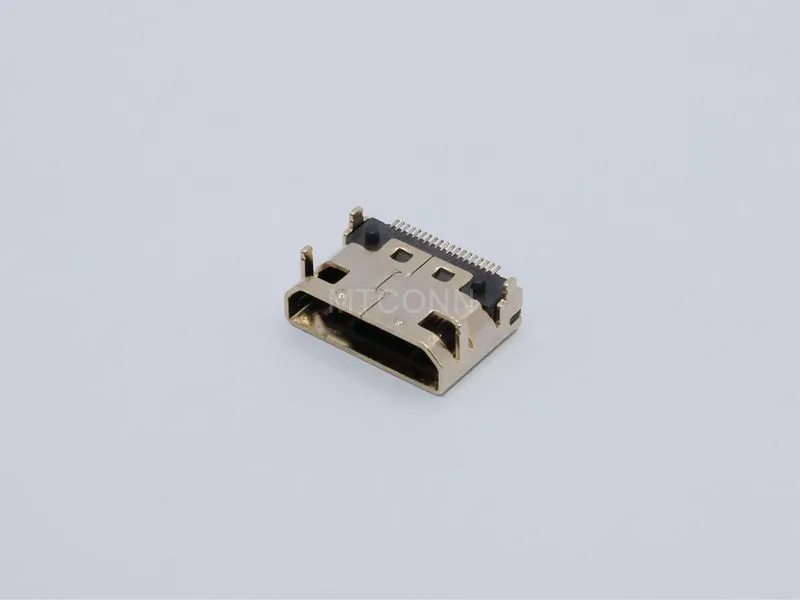

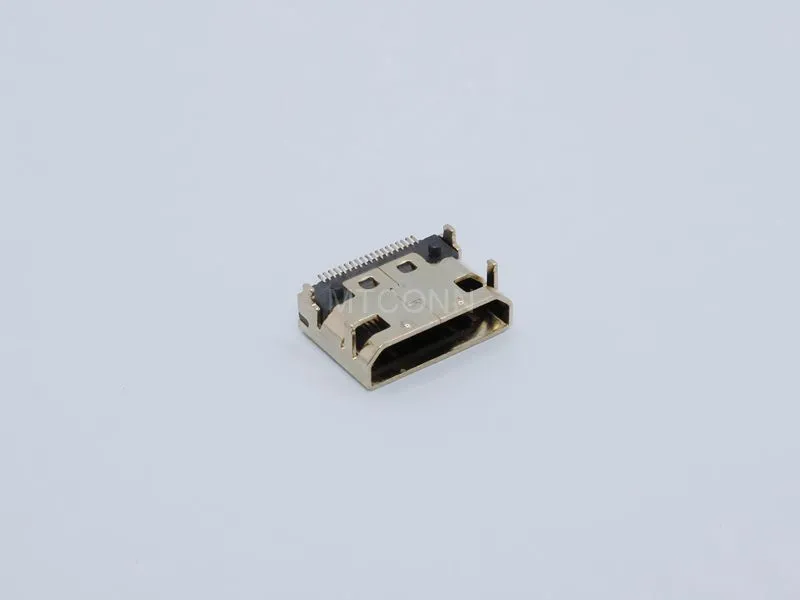

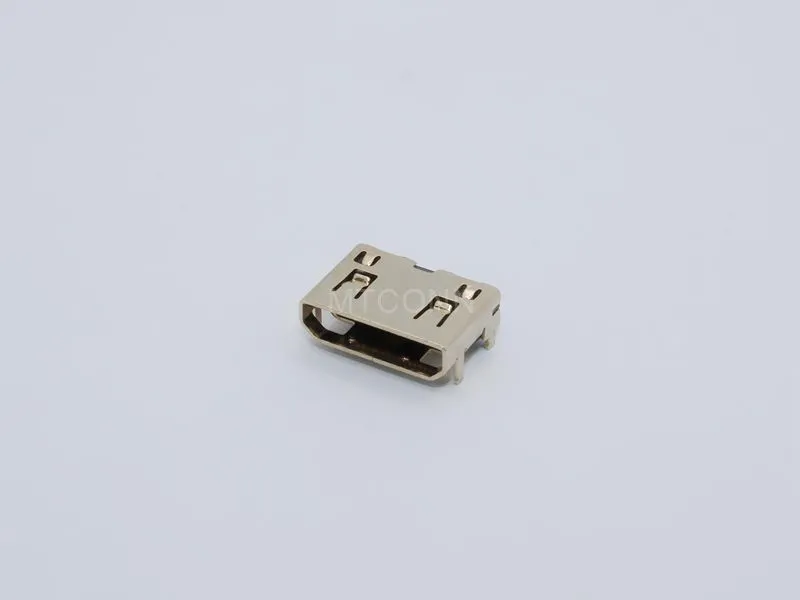

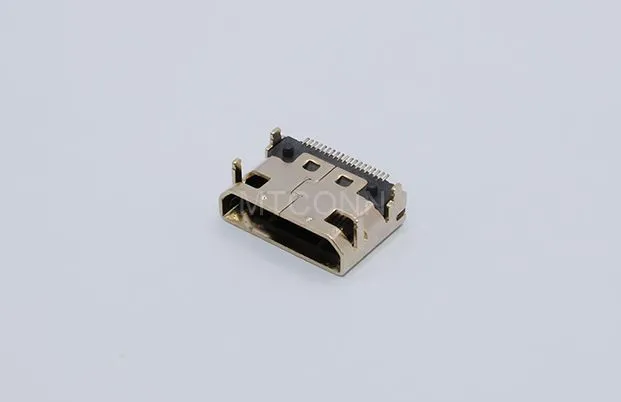

Compared to standard HD interfaces, the Mini HD interface is significantly smaller in size. The width of the Mini HD female socket is approximately 10.5mm, with a height of about 2.5mm, whereas standard HD interfaces typically measure around 15mm in width and 5mm in height. This compact design makes it easier to integrate into portable devices.
Features
Despite its smaller size, the Mini HD maintains the same technical specifications as standard HD interfaces. It employs fully digital transmission using TMDS (Transition Minimized Differential Signaling) technology, enabling the complete transmission of high-definition video and audio signals. It supports multi-channel digital audio, 3D image transmission, high-speed data transfer, and other functions, allowing seamless connectivity with standard HD devices.
19-pin configuration.
90° SMT soldering.
Argument
| Material of Main Part/Color | LCP/Black |
| Number of Contacts | 19 Pin |
| Insertion Force | 44.1N MAX. |
| Withdrawal Force | 5N MIN. (after 5000 cycles 3N MIN.), 25N MAX. |
| Service Life | 5000 Cycles |
| Operating Temperature | -20°C~ +65°C |
Core Technology
Key Word:
HD-mini Connector
Core Advantage:
In space-constrained embedded devices such as smart TV boxes, microcomputers, and IoT equipment, the Mini HD can deliver high-quality video output, meeting the demands of device miniaturization and functional diversification.
Technical Characteristic:
For applications like DIY gaming consoles, compact media centers, or other creative electronic devices, the Mini HD provides developers with a convenient way to add high-definition video output, facilitating personalized designs and functionalities.
