MTHD840919000-08A04

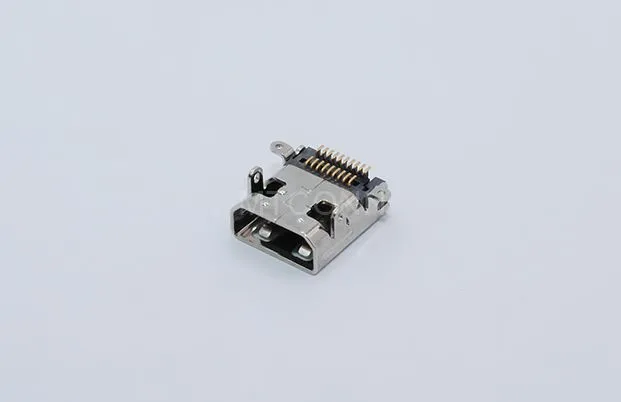

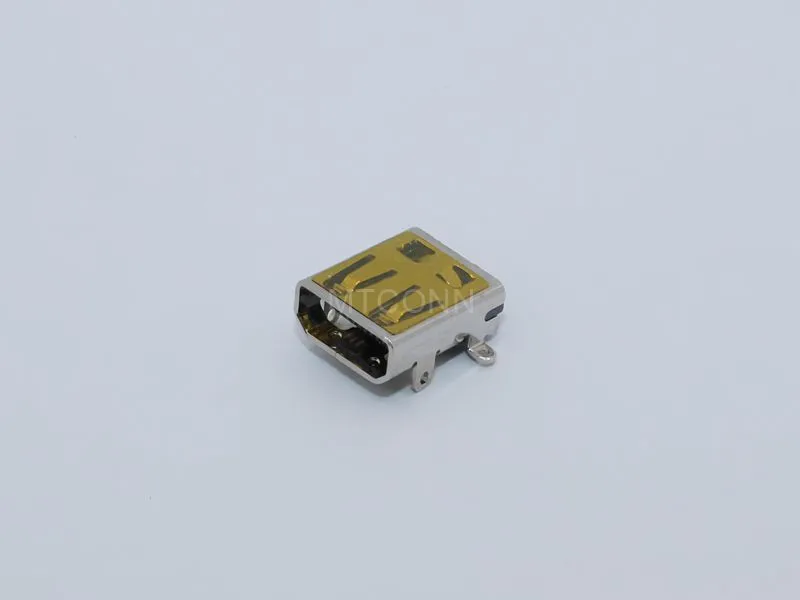

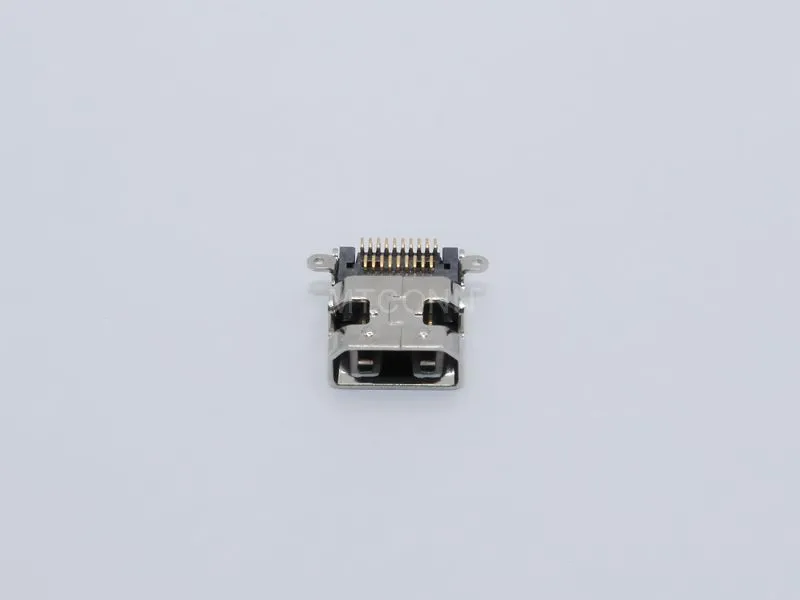

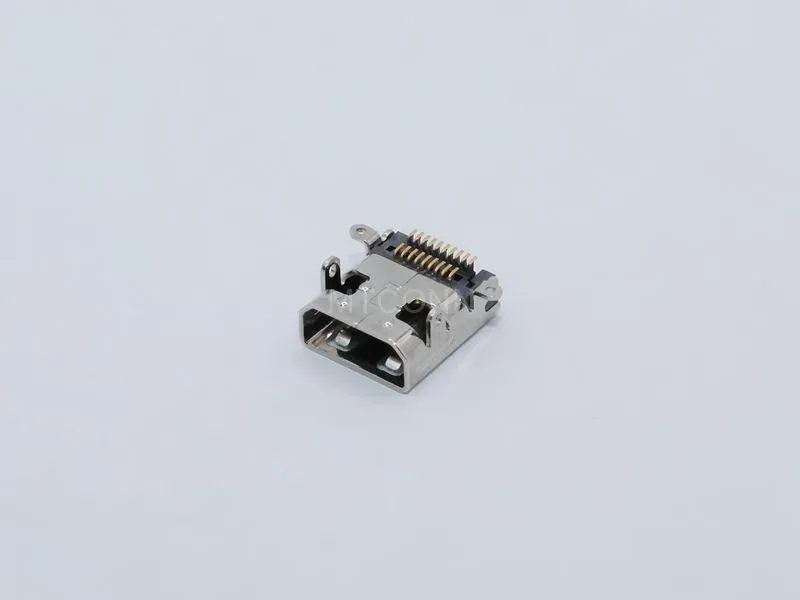

HD Micro Type Female Connector

The Micro HD connector (D-Type under HD standards) is a miniaturized high-definition video interface commonly found in smartphones and tablets. It enables users to project videos, photos, and games onto larger screens like TVs or monitors for an enhanced viewing experience.

Share:

Features Argument Core Technology Application Scenarios Product Features

Features

Ultra-Compact Design: Measures just 6mm (W) × 2.3mm (H), significantly smaller than standard HD (15mm × 5mm) and Mini HD (10.5mm × 2.5mm) interfaces, ideal for compact electronics.


19-Pin Configuration.


90° SMT Soldering for space-saving PCB integration.

Argument

Material of Main Part/ColorLCP/Black
Number of Contacts19 pin.
Insertion Force44.1N MAX.
Withdrawal Force5N MIN. ( after 5000 cycles 3N MIN.), 25N MAX.
Service Life5000 cycles
Operating Temperature-20°C~ +65°C

Core Technology

Key Word:

Micro HD Connector


Core Advantage:

Despite its tiny footprint (6mm × 2.3mm), it delivers full functionality identical to standard HD interfaces. Compatible with standard HD devices via Micro HD-to-HD adapters/cables.


Technical Characteristic:

Despite its compact size, the Micro HD connector delivers full functionality identical to standard HD interfaces. Through Micro HD-to-HD adapters or conversion cables, it can be easily connected to various standard HD devices, enabling seamless interoperability between equipment.
