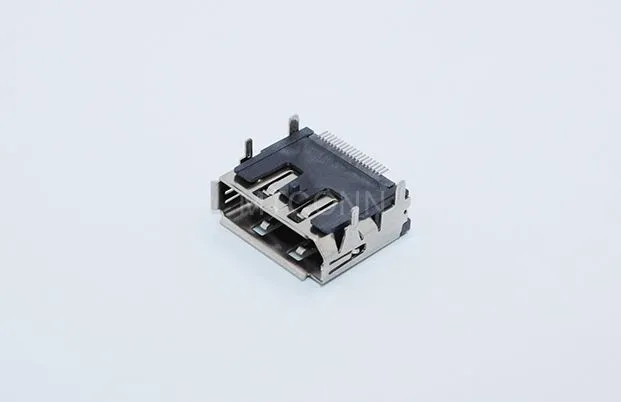

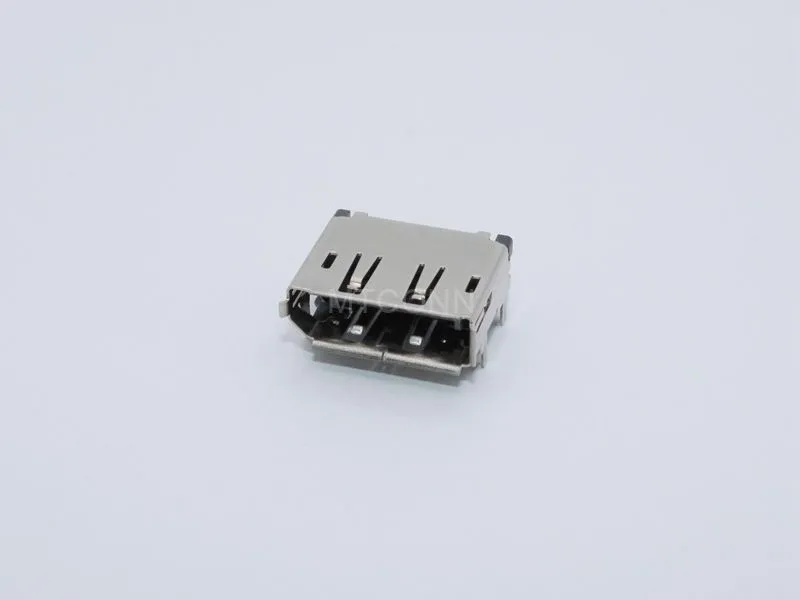

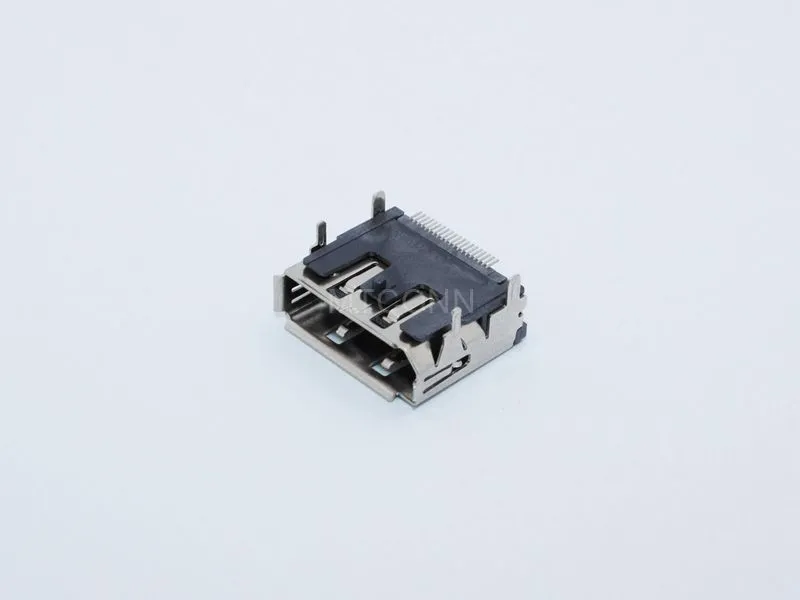

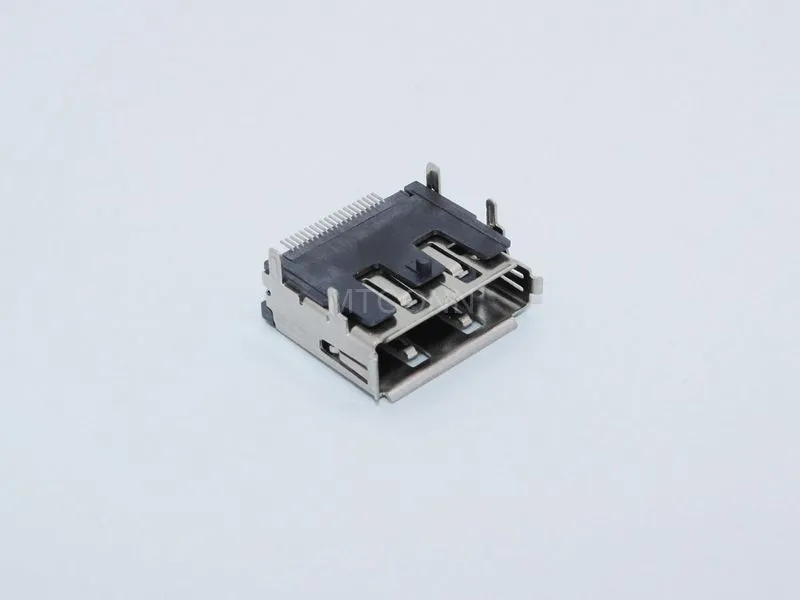

The DP connector (Display Port connector) is a digital display interface primarily used to connect various electronic devices for high-quality video and audio signal transmission.
Features
High-Temperature Resistant Housing: Constructed with LCP (Liquid Crystal Polymer) material.
20-Pin Configuration: Ensures stable signal transmission.
90° SMT Soldering: Facilitates space-saving PCB mounting.
Argument
| Material of Main Part/Color | LCP/Black |
| Number of Contacts | 19 Pin. |
| Rated Current | 0.5A MAX. |
| Withstand Voltage | 500V AC(1Min) |
| Insulation Resistance | 100MΩ MIN. at 500VDC |
| Contact Resistance | 30mΩ MAX. |
| Mating Force | 4.5kgf MAX. |
| Operation | -25°C~ 85°C |
Core Technology
Key Word:
Display Port Connector
Core Advantage:
Designed with backward compatibility, allowing seamless connection to legacy interfaces (e.g., DVI, HDMI, VGA) via adapters.
Technical Characteristic:
Supports ultra-high resolutions and refresh rates (e.g., DP1.2: 21.6Gbps for 4K; DP1.4: 54Gbps for 8K). Ideal for gaming, video editing, and other scenarios demanding high fidelity and smooth performance.
