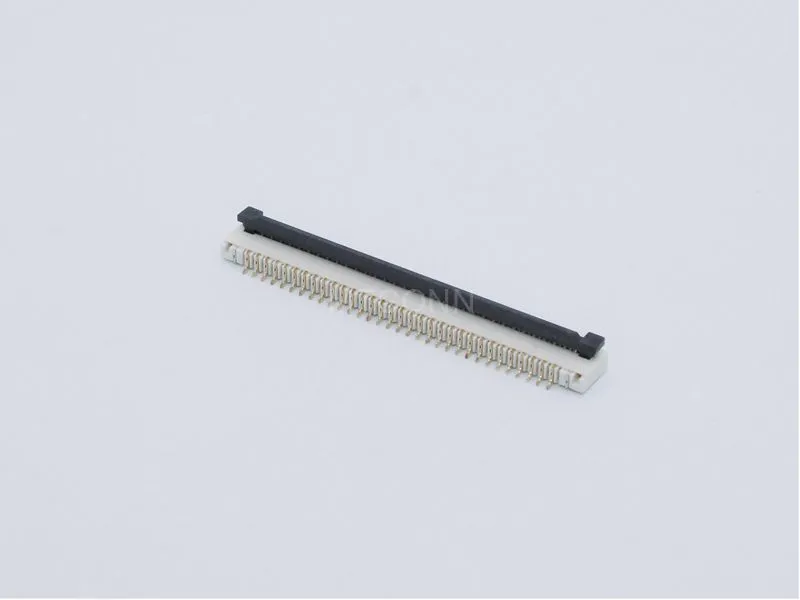

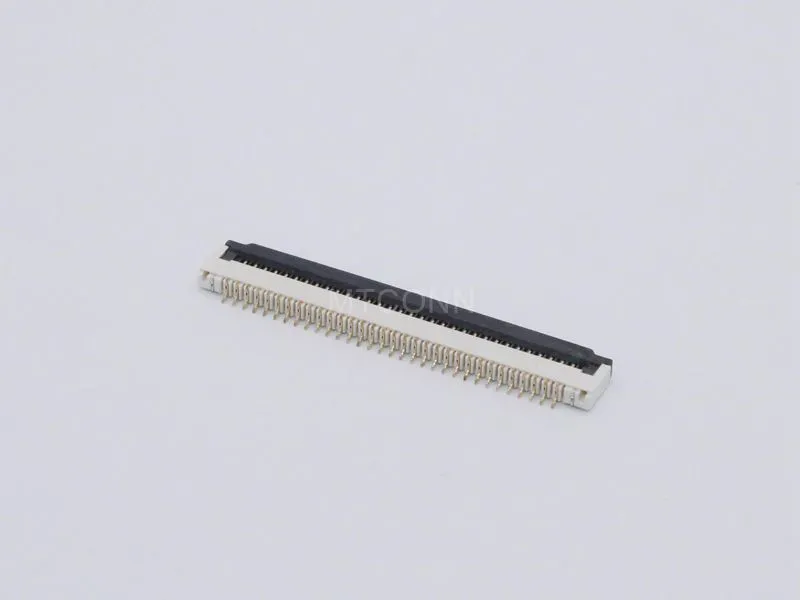

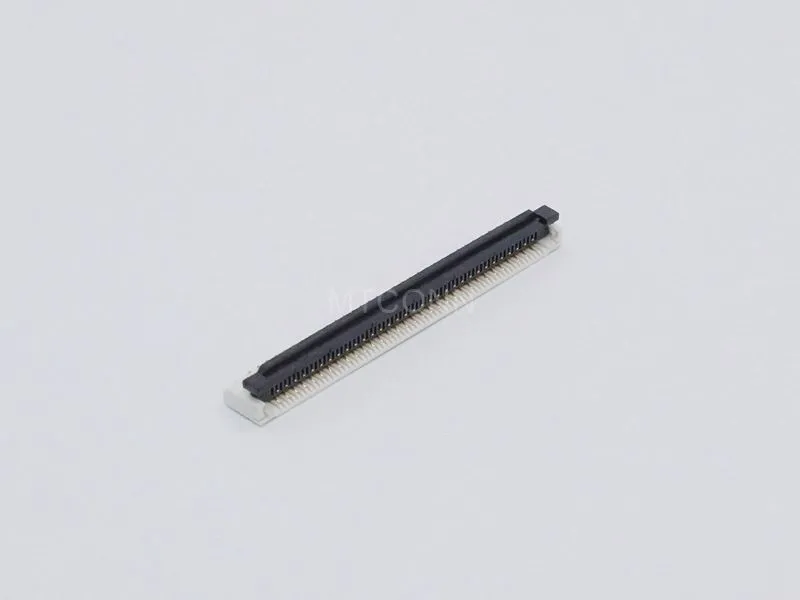

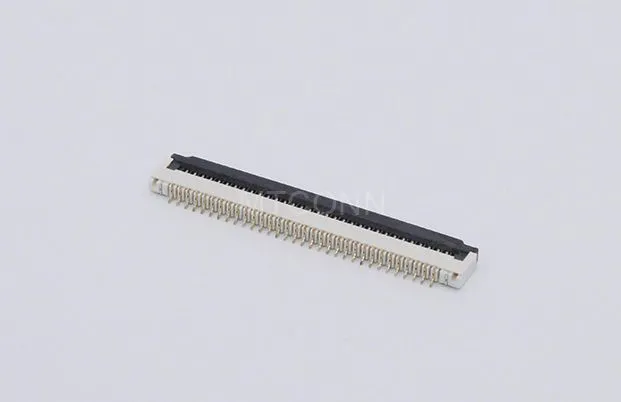

This 32Pin FPC connector features a high-temperature plastic (UL 94V-0 flame-retardant) housing and gold-plated copper alloy terminals. Designed for high-density flexible printed circuit (FPC) connections, its 2.0mm pitch and gold-plated contacts ensure stable signal transmission and high durability. Ideal for applications demanding reliability and compactness, such as consumer electronics, medical equipment, and industrial automation.
Features
High-Density Layout: 32Pin configuration with 2.0mm pitch, supporting multi-layer FPC stacking.
High-Reliability Contact: Gold-plated (or optional tin-plated) copper alloy terminals with ultra-low contact resistance and ≥5,000 insertion cycles.
Environmental Resistance: Operating temperature range of -25℃ to +85℃; UL 94V-0 flame-retardant material ensures safety.
Mechanical Stability: Nickel-tin plated copper alloy PEG (Positioning Engineering Grid) enhances PCB fixation strength.
Automation Compatibility: Compatible with SMT mounting processes for improved production efficiency.
Argument
| Material of Main Part/Color | LCP/Beige |
| Number of Contacts | 32 Pin |
| Pitch | 1.0mm |
| Rated Current | 1.0A AC/DC |
| Rated Voltage | 50V AC/DC |
| Contact Resistance | 20mΩ Max. |
| Operating Temperature | -25℃~ +85℃ |
Right-angle design enables vertical FPC connection, freeing PCB real estate and allowing compact device layouts.
Precision contacts ensure low resistance and stable signals, reducing risk of intermittent connections.
Locking mechanisms prevent accidental cable disconnections during vibration or repeated use.
Engineered to withstand multiple mating cycles without compromising contact integrity.
Designed for automated surface-mount assembly with high coplanarity and reflow soldering tolerance.
Consumer Electronics: Smartphones, tablets, wearable devices
Automotive Electronics: Infotainment, camera modules, sensor interfaces
Industrial Equipment: Control boards, automation systems, testing equipment
Medical Devices: Portable diagnostic equipment, imaging modules
Right-Angle SMT Design: Saves PCB space and allows vertical cable routing
Flip/Slide Lock Mechanism: Ensures secure FPC retention
Durable Contact Structure: Provides stable signal transmission
High-Temperature Housing: Compatible with reflow soldering
Flexible pin counts and actuator types
Enhanced plating options for high-reliability applications
OEM/ODM branding support
Tape & Reel / Tray packaging for automated assembly
Technical support for prototype to mass production scaling
RoHS & REACH compliant
UL94V-0 flame-retardant housing
ISO-certified production process
100% inspection of contact resistance, coplanarity, and insertion cycles
Our 1.0mm pitch 90° SMT FPC connectors are engineered for reliable performance and consistent quality, ideal for high-volume production. Whether you are sourcing for OEM projects, assembly lines, or large-scale electronics manufacturing, we provide flexible customization, tape & reel packaging, and fast delivery to meet your production schedule. Contact us today to discuss bulk pricing and start your large-scale procurement with confidence.
Core Technology
Key Words:
High-Density FPC Connector
Core Advantage:
Gold-plated terminals reduce impedance to support high-speed data transmission (e.g., LVDS/MIPI), while the terminal + positioning peg design enhances connection stability in vibration-prone environments.
Technical Features:
Flame-retardant and high-temperature-resistant material (UL 94V-0).
Optional gold-plated (high durability) or tin-plated (cost-effective) terminals.
Application Scenarios
