FPC Connector

Home / Products/FPC Connector/FPC Connector 0.5mm Pitch 22Pin 2.0mm Height Right Angle SMT Upper Contact Slide Type

MTFP85-322SWN-10A04

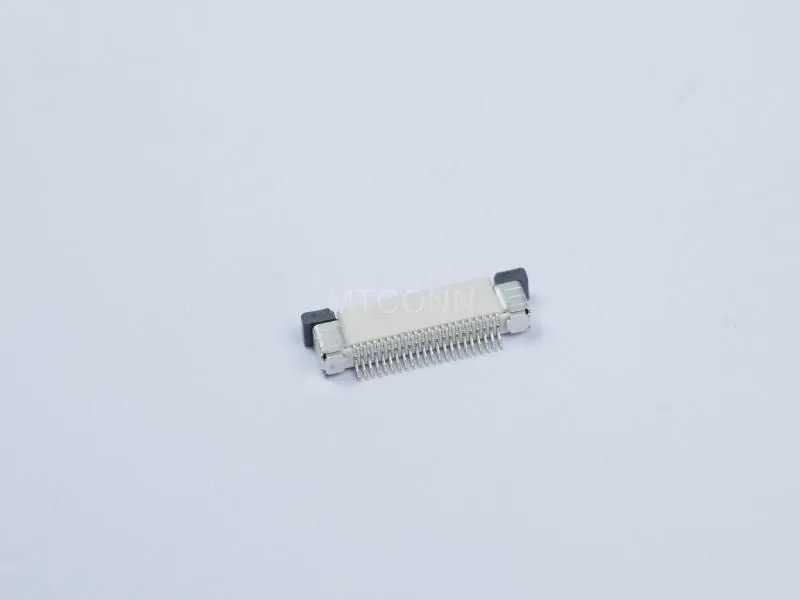

FPC Connector 0.5mm Pitch 22Pin 2.0mm Height Right Angle SMT Upper Contact Slide Type

Share:

Inquiry Now Next Product

Features Argument Core Technology Application Scenarios Product Features

Argument

Housing Material /Color	LCP / Beign
Cover Material	LCP/ Black
Terminal Material	Phosphor Bronze
Fitting Nail	Brass
Pitch	0.5mm
Number of Contacts	4~60 Pin
Rating Current	0.5A
Voltage Rating	50V AC/DC
Insulation Resistance	500MΩ MIN
Contact Resistance	40MΩ MAX
Voltage Resistance	AC 250V for 1 Minite
Temperature	- 40°C ~ + 85°C
