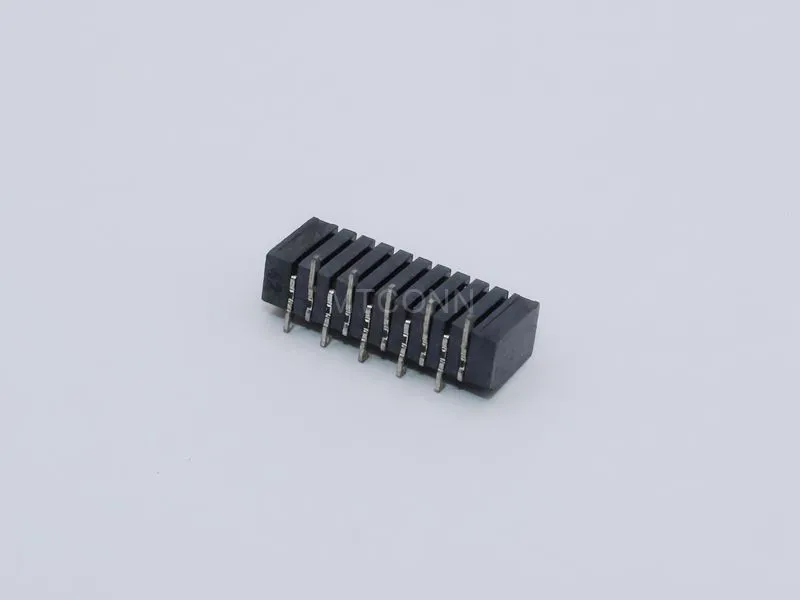

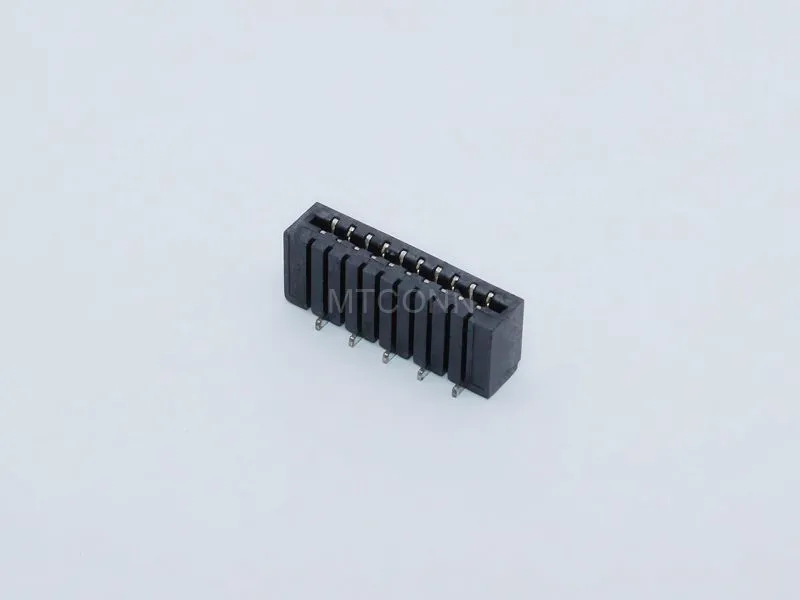

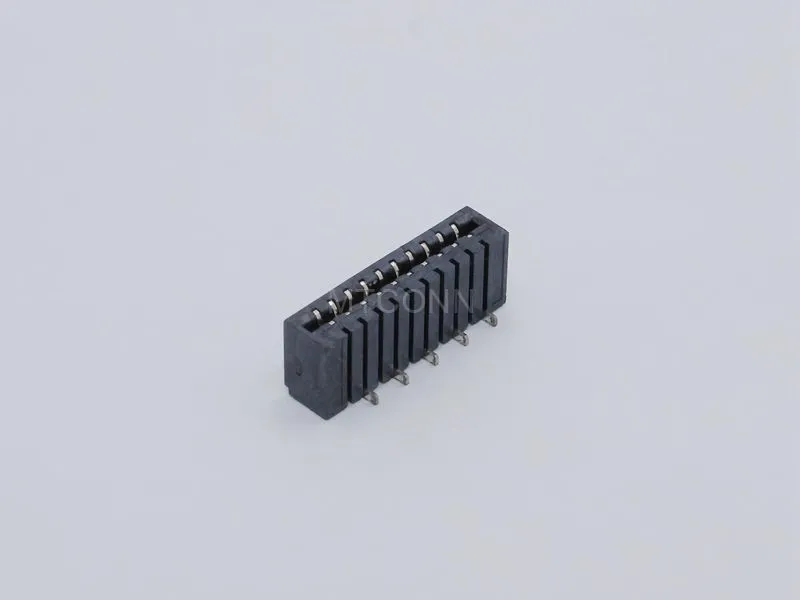

The MTFP61-910SMB-05A03 is a 10Pin dual-contact FPC connector with a PH1.0mm pitch. Featuring a bilateral terminal structure, it enables double-sided conduction for FPCs, supporting high-density wiring. Ideal for compact electronic devices requiring bidirectional signal transmission, such as foldable screen devices and multifunctional modules.
Features
Dual-Side Contact Technology: Double-sided contact design supports FPC conduction on both sides.
Right-Angle Mounting: 90° SMT process reduces PCB footprint and enhances wiring flexibility.
High-Current Support: Compatible with USB PD 3.0, supporting up to 20V/5A 100W fast charging.
Wide Temperature Tolerance: Operating range of -40℃ to 85℃; LCP housing withstands 260℃ reflow soldering.
Lock-Free Quick Insertion/Extraction: Eliminates traditional locking mechanisms, improving plugging efficiency by 50%.
Argument
| Material of Main Part/Color | LCP/Black |
| Number of Contacts | 10 Pin |
| Rated Current | 1A |
| Rated Voltage | 50V |
| Contact Resistance | 30mΩ Max. |
| Withstand Voltage | 500V AC (1Min) |
| Insulation Resistance | 500MΩ MIN |
| Operating Temperature | -25℃ ~ +85℃ |
Widely used in smartphones, tablets, laptops, and wearable devices where compact and reliable connections are essential.
Suitable for infotainment systems, dashboard modules, camera systems, and ADAS components requiring vibration resistance.
Applied in control boards, HMI panels, and automation systems where stable signal transmission is critical.
Used in portable diagnostic equipment and imaging systems where precision and reliability are mandatory.
Dual Beam Contact System: Ensures consistent electrical connection under mechanical stress
Low Insertion Force Design: Reduces assembly difficulty and prevents FPC damage
High Retention Lock: Prevents cable loosening during operation
Heat-Resistant Housing: Compatible with reflow soldering processes
When choosing a 1.0mm pitch dual contact FPC connector, consider:
Match the connector positions with your PCB design and signal requirements.
Top contact vs bottom contact selection based on PCB layout and cable routing.
Flip lock: Easier operation, common in consumer electronics
Slide lock: Higher retention strength, suitable for industrial use
Ensure compatibility with FPC thickness (typically 0.3mm / 0.5mm).
For harsh environments, prioritize models with higher durability and temperature resistance.
To meet specific project requirements, customization options include:
Pin count and pitch variations
Special plating thickness (e.g., 0.5u", 1u", 3u" gold)
Customized housing color
Tape & reel packaging for automated assembly
OEM/ODM branding support
UL certified materials (UL94V-0 flame rating)
RoHS & REACH compliant
Strict quality control throughout production
100% electrical testing before shipment
Extensive experience in precision connector manufacturing
Consistent quality with tight tolerance control
Competitive pricing for bulk procurement
Technical support for design-in and replacement projects
Fast sampling and customization response
If you are sourcing a reliable 1.0mm pitch dual contact FPC connector manufacturer for your project, we can provide stable quality, flexible customization, and fast delivery to support your production needs.
