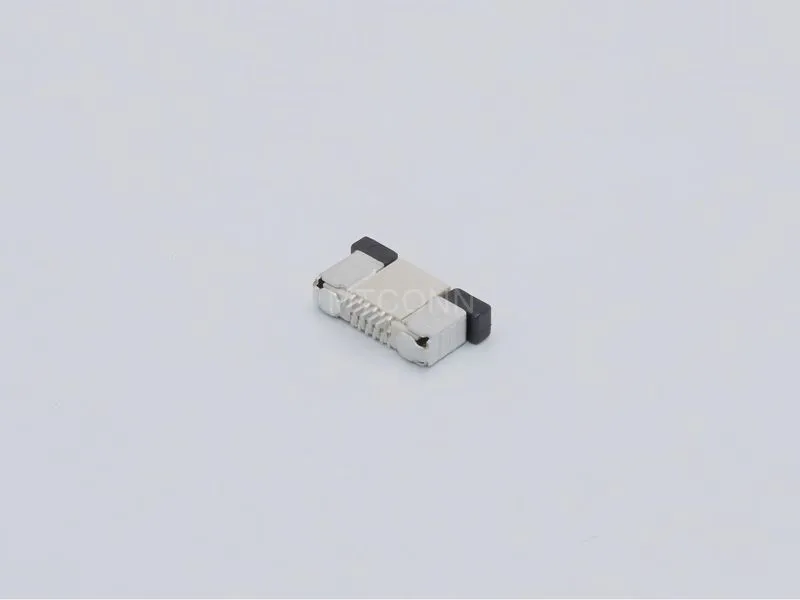

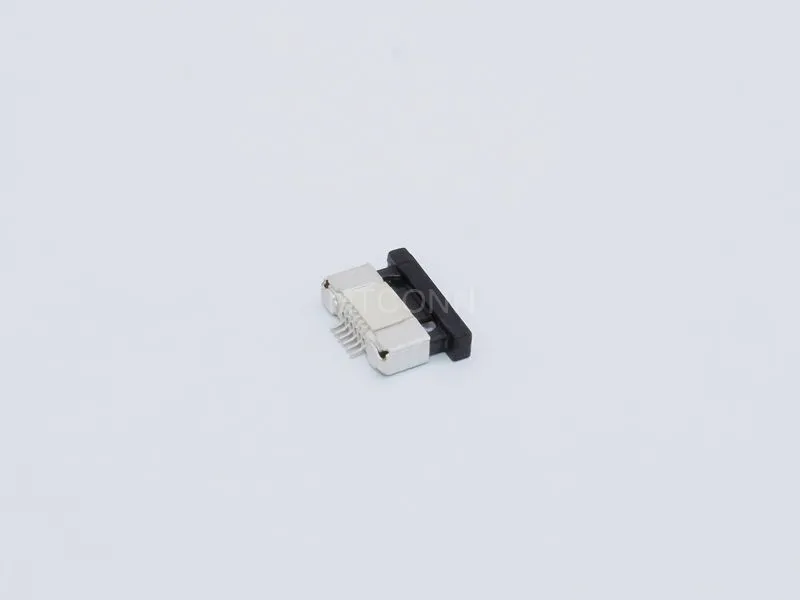

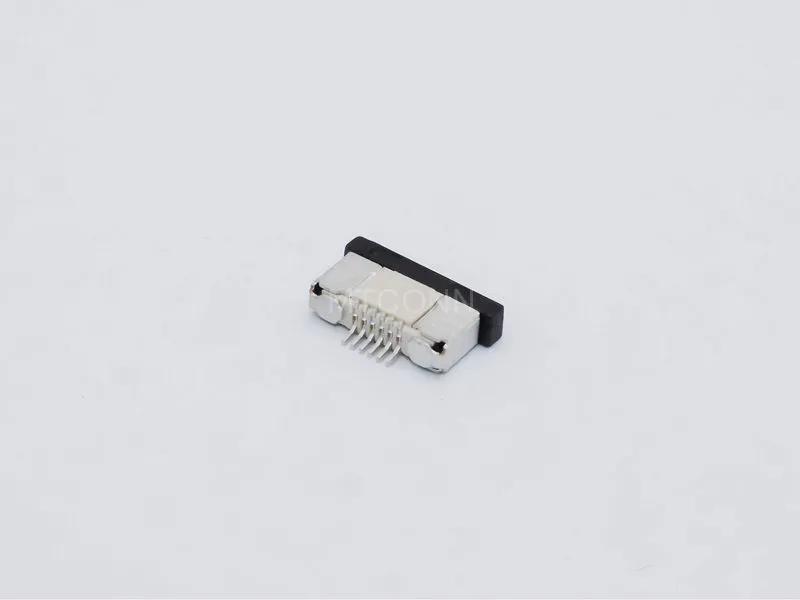

This 6Pin FPC connector features a ZIF (Zero Insertion Force) structure with bottom-contact design, a pitch of 0.5mm, and a height of 2.0mm. Its 90° right-angle SMT mounting is specifically engineered for high-density, ultra-thin electronic devices, providing a reliable flexible circuit (FPC) connection solution. Ideal for applications requiring frequent insertion/extraction or space constraints, it ensures stable signal transmission and mechanical durability.
Features
Ultra-Thin Compact Design: 90° right-angle SMT mounting, 2.0mm height, saves PCB space and optimizes layout for slim devices.
ZIF Mechanism: Enables effortless FPC insertion without additional pressure, minimizing wear and improving usability.
Bottom-Contact Design: Optimizes signal transmission paths and reduces impedance.
Durable & Eco-Friendly: Complies with RoHS standards, lead-free and halogen-free.
Automation-Friendly: SMT-compatible for streamlined automated production.
Argument
| Material of Main Part/Color | HIGHT-TEMP PLASTIC/Beige |
| Number of Contacts | 6 Pin |
| Pitch | 0.5mm |
| Rated Current | 0.5A |
| Rated Voltage | 50V AC/DC |
| Operating Temperature | -25℃~ +85℃ |
The ZIF mechanism eliminates the need for forceful insertion, preventing FPC deformation or contact damage.
Precision contacts ensure reliable transmission for control signals, low-speed data, and some high-speed interfaces.
0.5mm pitch allows higher density placement on PCB while keeping a manageable assembly process.
Supports hundreds to thousands of insertion/removal cycles, suitable for testing and maintenance-heavy applications.
SMT-compatible footprint and actuator design facilitate automated assembly and reduce manufacturing errors.
Ideal for smartphones, tablets, cameras, and portable devices where FPC connections must be reliable and space-saving.
Suitable for infotainment modules, sensor interfaces, and dashboard electronics where vibration resistance and precision are crucial.
Used in control panels, testing devices, and small automation systems with repeated maintenance cycles.
Supports portable diagnostic devices, imaging modules, and other precision instruments requiring reliable cable connections.
Slide/Flip Actuator: Enables easy cable locking and unlocking
Precision Contacts: Maintains low resistance and stable signals
Compact SMT Design: Facilitates automated pick-and-place assembly
Durable Housing: Compatible with reflow soldering and high-temperature processes
When choosing a 6 Pin 0.5mm pitch ZIF FPC connector, consider:
Cable Thickness Compatibility: Typical FPC thickness ranges from 0.2–0.3mm.
Operating Environment: Ensure connector materials meet temperature and vibration requirements.
Actuator Type: Slide actuator is preferred for automated assembly; flip actuator offers more mechanical retention.
PCB Footprint: Verify pad layout and coplanarity to avoid assembly issues.
We offer flexible manufacturing options:
Custom pin counts and actuator types
Enhanced plating for high-reliability applications
OEM/ODM branding and packaging solutions
Tape & Reel or tray packaging for automated production
Tailored design support for prototype and mass production
RoHS & REACH compliant materials
UL94V-0 flame retardant housing
100% electrical and mechanical testing
ISO-certified production process for consistency
Tape & Reel packaging compatible with SMT assembly lines
Bulk packaging options for manual assembly
Stable lead times for large-scale orders
Global shipping and export documentation support
Professional 0.5mm pitch ZIF FPC connector manufacturer
High-precision tooling and production capability
Proven reliability for repeated mating cycles
Technical support for design-in and integration
Competitive pricing for OEM and volume orders
By sourcing from a dedicated 6 Pin 0.5mm pitch ZIF FPC connector manufacturer, you gain a high-quality, durable, and assembly-friendly interconnect solution suitable for both prototype development and mass production.
Core Technology
Key words:
6Pin ZIF FPC Connector
Core Advantage:
ZIF locking mechanism, utilizing a precision spring structure, enables effortless FPC insertion and secure locking to prevent poor contact.
Technical Features:
Engineered plastic withstands reflow soldering (260°C).
