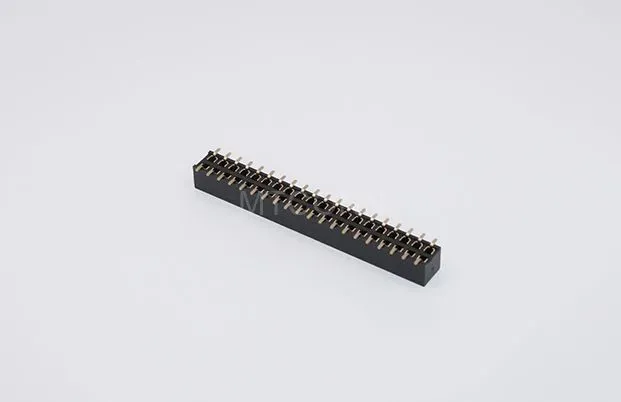

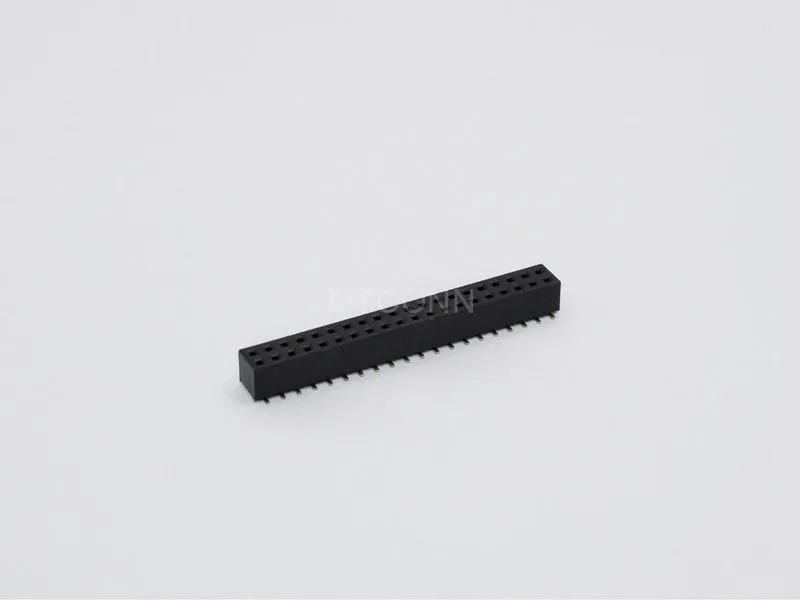

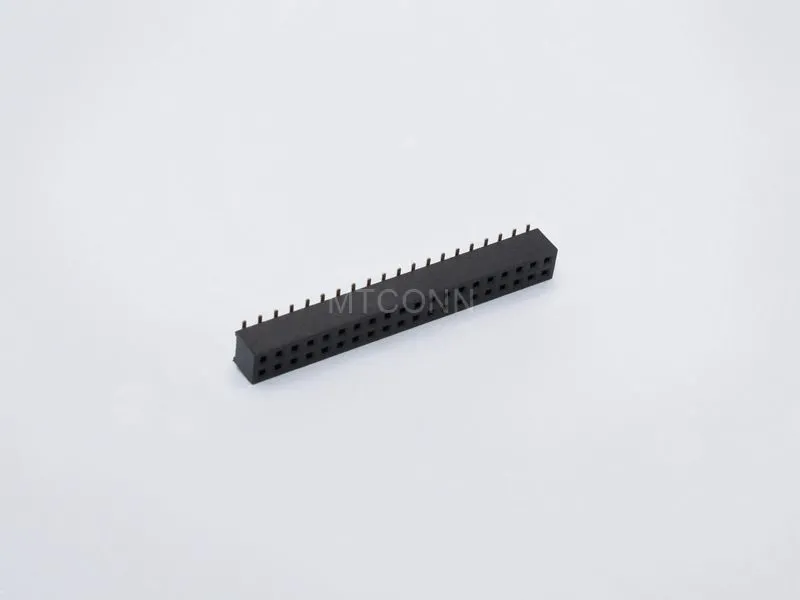

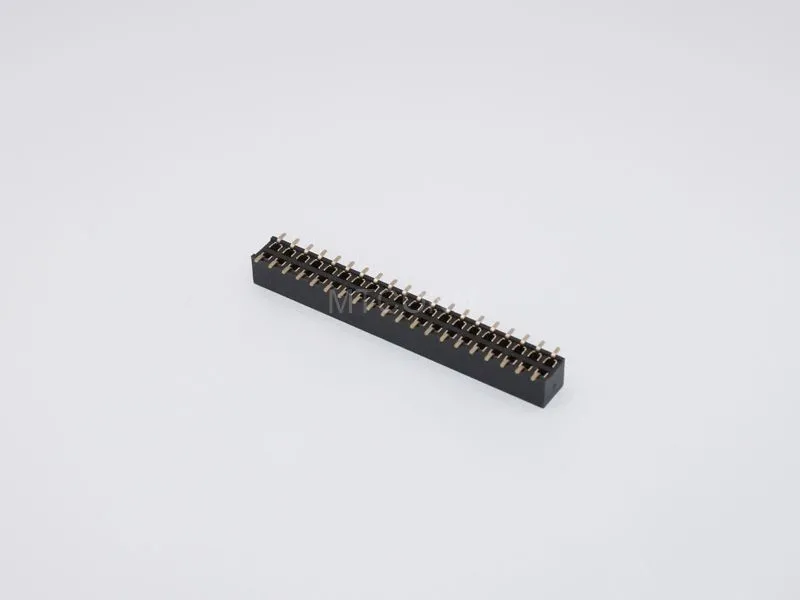

This dual-row vertical surface-mount (SMT) gold-plated header features a 2.0mm pitch design with 20 pins per row (40 pins total), optimized for high-density PCB applications. Utilizing phosphor bronze gold-plated terminals, it perfectly matches corresponding pin headers and is suitable for industrial controls, communication equipment, and consumer electronics.
Features
Gold-plated phosphor bronze terminals: Contact resistance ≤20mΩ for stable signal transmission.
Withstands 500V AC (1 minute) with insulation resistance ≥1000MΩ
4.3mm low profile for space-constrained applications
180° mounting angle optimizes PCB layout efficiency
UL94 V-0 flame-retardant black PA6T housing
Operating temperature range: -40°C to +105°C
Foolproof polarization design
Argument
| Material of Main Part/Color | PA6T/Black |
| Number of Contacts | 20 Pin |
| Rated Current | 1.5A AC/DC |
| Contact Resistance | 20mΩ MAX. |
| Withstand Voltage | 500V AC (1Min) |
| Insulation Resistance | 1000MΩ MIN. |
| Operating Temperature | -40℃~ +105℃ |
Core Technology
Key words:
Dual-row Vertical Female Header
Core Advantage:
Engineered for reliable signal transmission in harsh environments (humidity, vibration, extreme temperatures)
