Home / Products/Pin/Female/Box Header/Female Header/Female Header PH1.27mm Dual-Row 2*9Pin 180 Degree DIP

MTFH23-209GB0-18D62

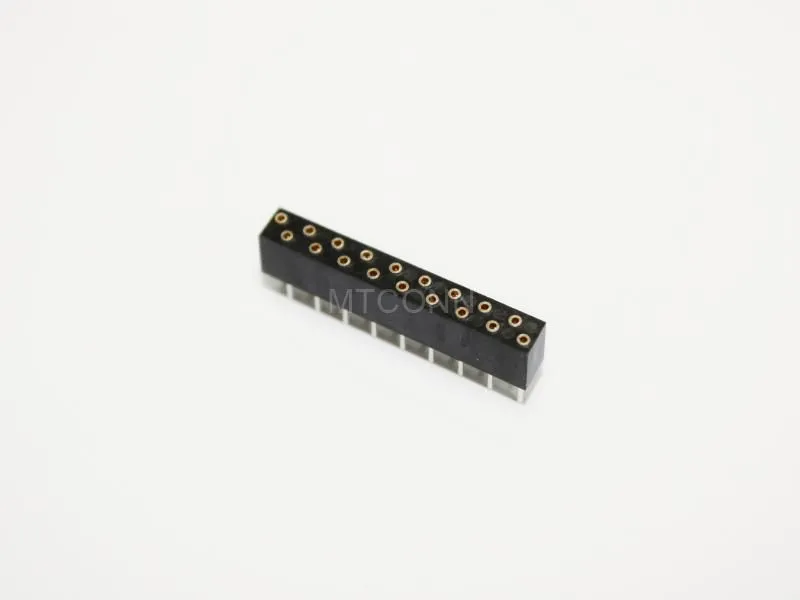

Female Header PH1.27mm Dual-Row 2*9Pin 180 Degree DIP

Share:

Inquiry Now Next Product

Features Argument Core Technology Application Scenarios Product Features

Argument

Material of Main Part/Color	PPS/Black
Pitch	1.27mm
Number of Contacts	18 Pin
Mating Pin Diameter	Φ0.305/0.483mm
Rated Current	1.0A AC/DC
Contact Resistance	10mΩ MAX.
Mechanical Life	500 Cycles
Operating Temperature	-40℃ ~ +105℃
