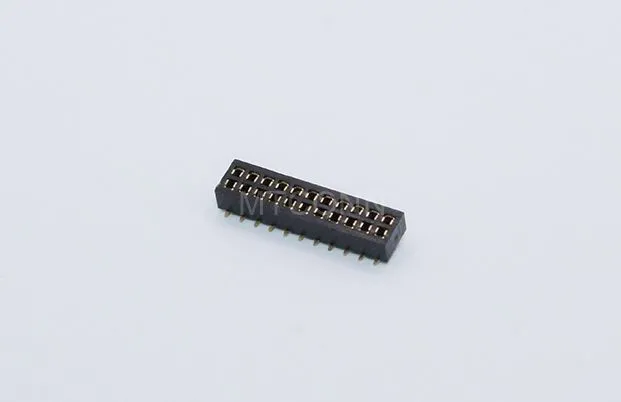

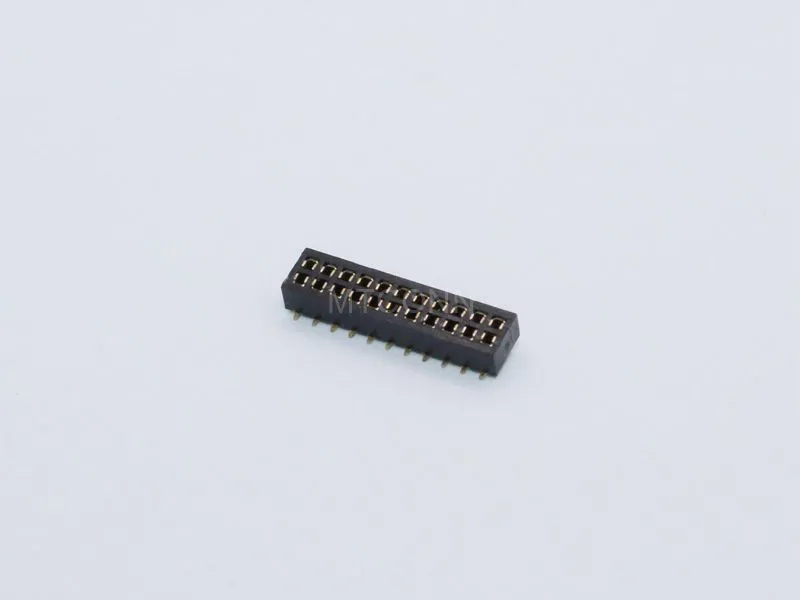

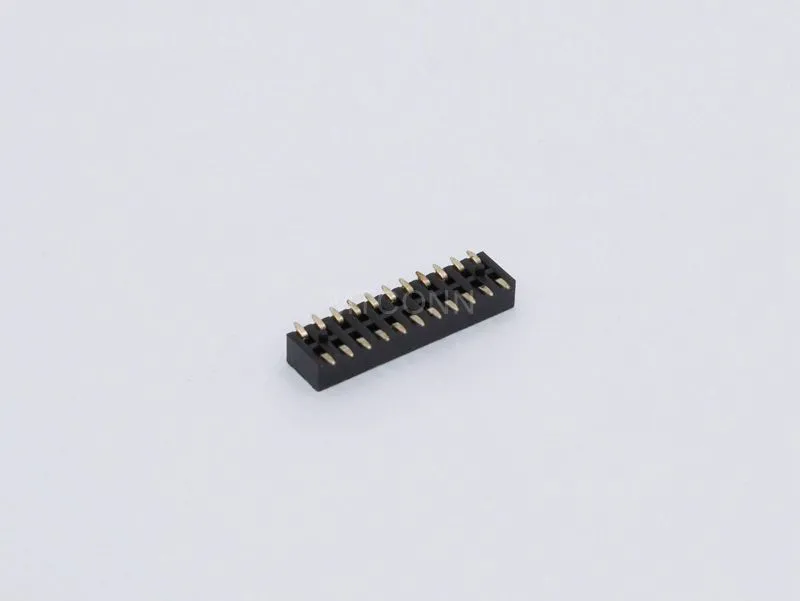

This dual-row vertical surface-mount (SMT) gold-plated header features a 1.27mm pitch design with 11 pins per row (22 pins total), optimized for high-density PCB applications. Utilizing phosphor bronze gold-plated terminals, it perfectly matches corresponding pin headers and is suitable for industrial controls, communication equipment, and consumer electronics.
Features
Gold-plated phosphor bronze terminals: Contact resistance ≤20mΩ for stable signal transmission.
Withstands 500V AC (1 minute) with insulation resistance ≥1000MΩ for enhanced safety.
1.2mm low profile: Designed for compact devices.
180° mounting angle: Optimizes PCB space utilization.
UL94 V-0 flame-retardant housing: Black PA material ensures reliability.
Operating temperature: -40°C to +105°C for extreme environments.
Foolproof design: Prevents incorrect mating.
Argument
| Material of Main Part/Color | PA9T/Black |
| Number of Contacts | 11 pin. |
| Rated Current | 1.0A |
| Contact Resistance | 20mΩ MAX. |
| Withstand Voltage | 500 V (1Min) |
| Insulation Resistance | 1000MΩ MIN |
| Operating Temperature | -40℃~ +105℃ |
