Home / Products/DC/Earphone Jack/Earphone Jack Connector 7Pin 3.5mm 90 Degree DIP

MTEP43-207AAB-60A83

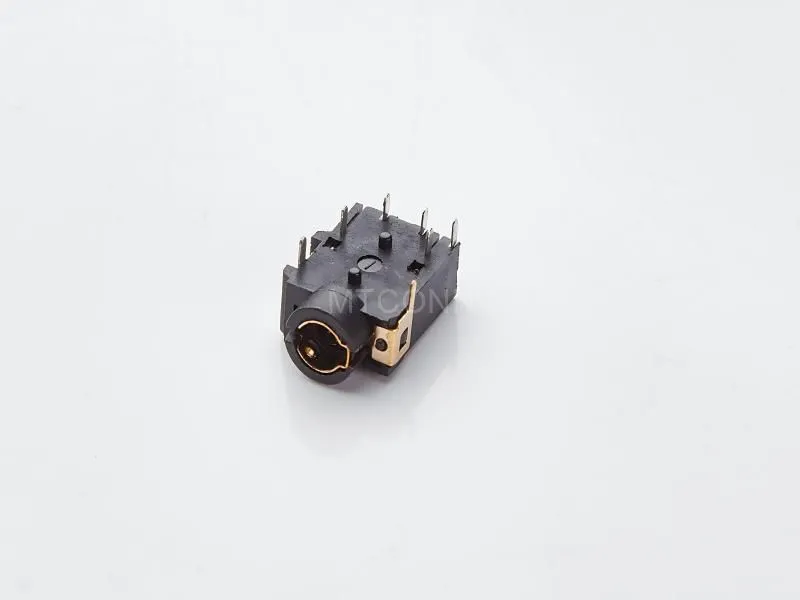

Earphone Jack Connector 7Pin 3.5mm 90 Degree DIP

Share:

Inquiry Now Next Product

Features Argument Core Technology Application Scenarios Product Features

Argument

Number of Contacts	7 Pin
Rated Current	0.5A AC/DC
Contact Resistance	50mΩ MAX.
Withstand Voltage	500V AC (1min)
Insulation Resistance	100MΩ MIN.
Operating Temperature	-25℃ ~ +85℃
Durability	5,000 Times
Insertion and Withdrawal Force	3-25N

Related Products

Type A HD Female Connector

Type A HD Female Connector

BTB Connector 2*5Pin PH0.5mm Male type

BTB Connector 2*5Pin PH0.5mm Male type

5Pin PH3.0 180 Degree DIP Wafer Connector with Hook

5Pin PH3.0 180 Degree DIP Wafer Connector with Hook

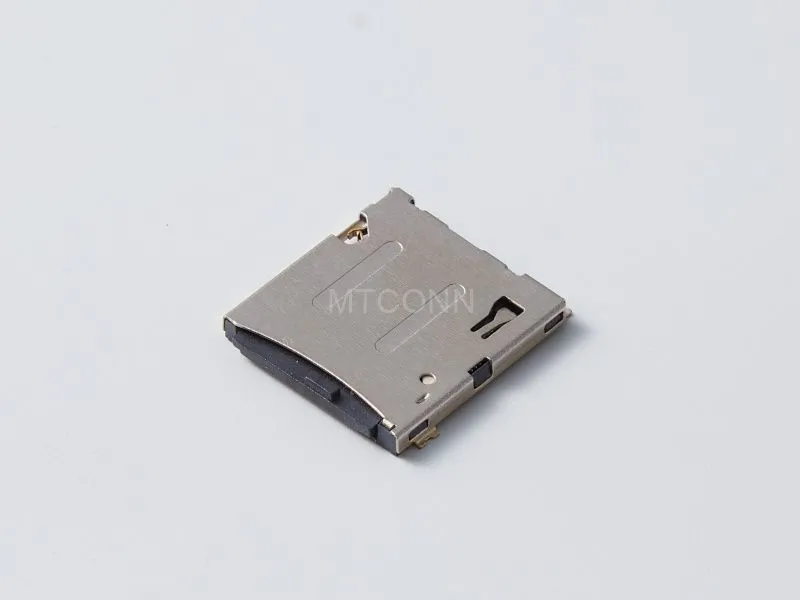

Micro SD Card Socket H1.5 Push Type

Micro SD Card Socket H1.5 Push Type

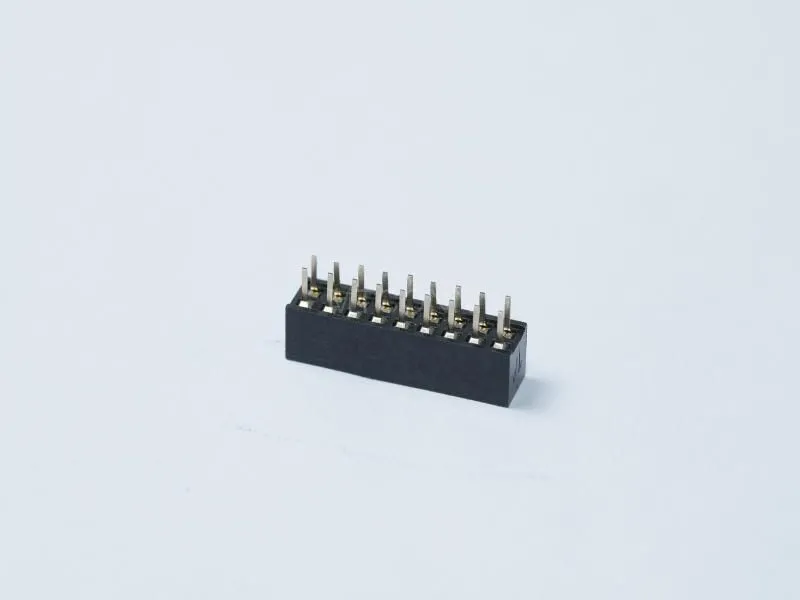

Female Header PH2.0mm Double Row H4.3mm 9*2Pin 180 Degree DIP

Female Header PH2.0mm Double Row H4.3mm 9*2Pin 180 Degree DIP

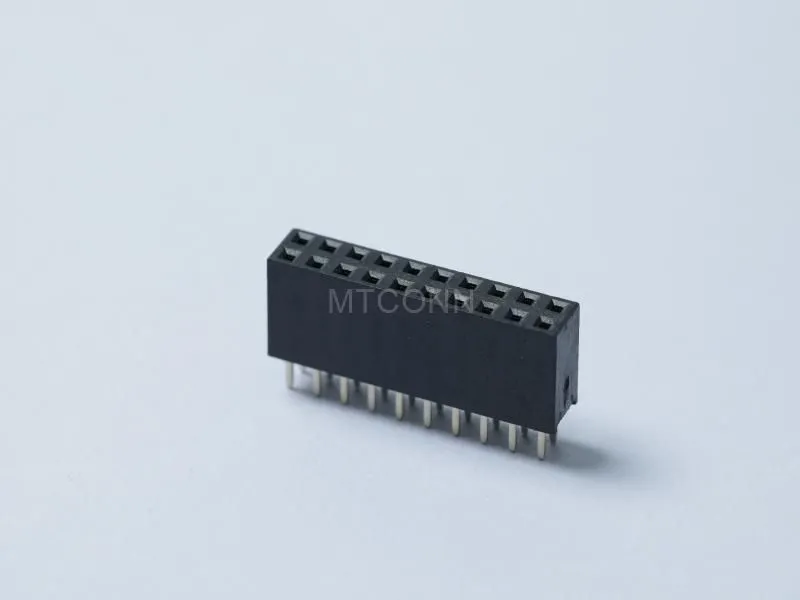

Female Header Double Row PH2.54mm 10*2Pin 180 Degree DIP
