DC/Earphone Jack

Home / Products/DC/Earphone Jack/Earphone Jack Connector 5Pin 3.5mm 90 Degree DIP with Reference Pins

MTEP43-205AAB-71B03

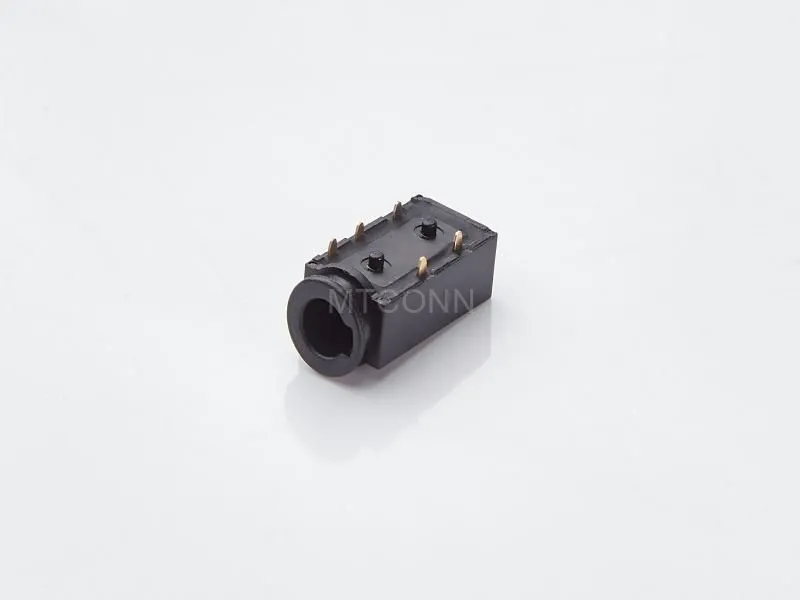

Earphone Jack Connector 5Pin 3.5mm 90 Degree DIP with Reference Pins

Share:

Inquiry Now Next Product

Features Argument Core Technology Application Scenarios Product Features

Argument

Number of Contacts	5 Pin
Rated Current	1A AC/DC
Contact Resistance	100mΩ MAX.
Withstand Voltage	500V AC (1min)
Insulation Resistance	100MΩ MIN.
Operating Temperature	-25℃ ~ +85℃
Durability	5,000 Times
Insertion Force	30N MAX.
Withdrawal Force	3N MIN.
