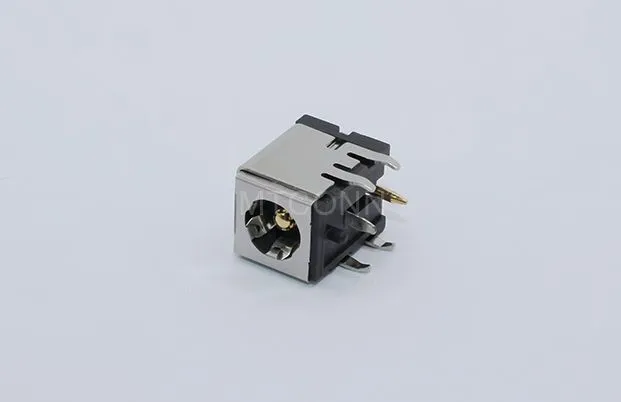

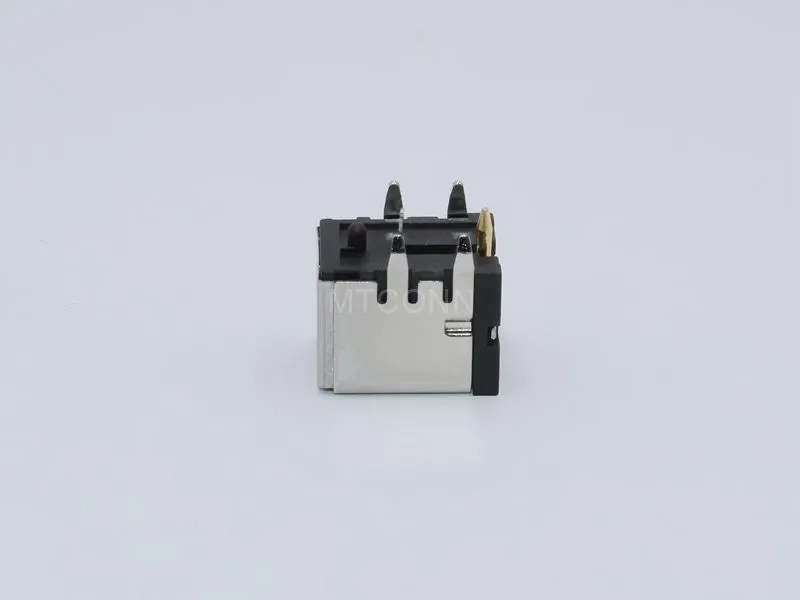

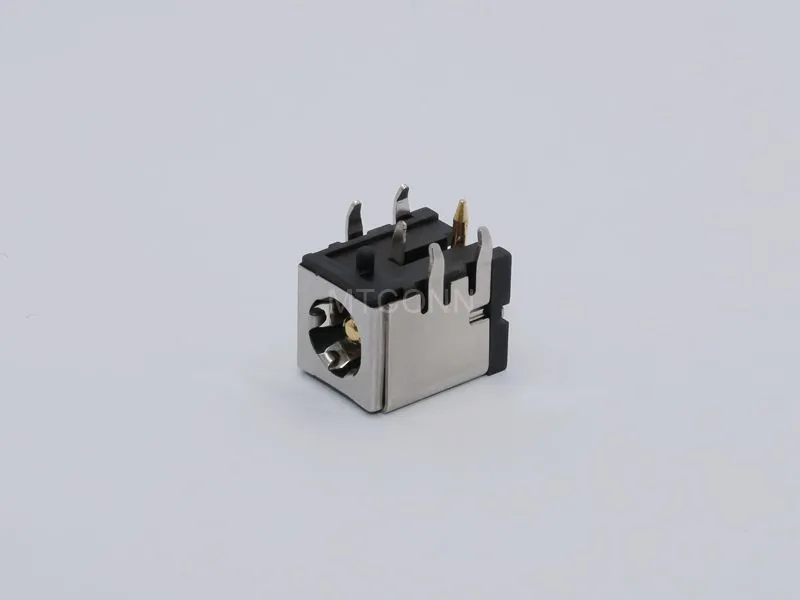

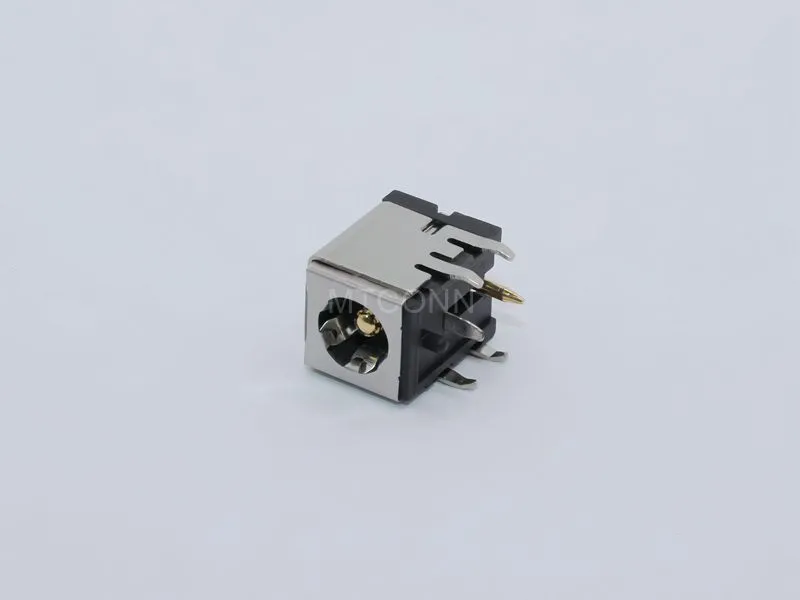

This product is a high-performance DC power socket connector, designed for electronic devices requiring high-current transmission. It features high-temperature-resistant materials and a multi-terminal design, supporting an electrical rating of 20V/7A. With excellent durability and environmental adaptability. Its compact structure and plating process ensure stable signal transmission, meeting the demands of industrial, consumer electronics, and automotive applications for highly reliable power interfaces.
Features
High Current Capacity: Supports a rated current of 7A, meeting the power needs of high-power devices.
Strong Environmental Resistance: Operating temperature range of -25℃ to +70℃, suitable for harsh conditions.
Long Lifespan Design: Passed 5,000 insertion/extraction durability tests, ensuring long-term stability.
Safety Protection: Minimum insulation resistance of 100MΩ, withstands 500V AC, ensuring electrical safety.
Compact Layout: Multi-terminal integrated design, ideal for high-density PCB installations.
Argument
| Material of Main Part/Color | PA9T/ Black |
| Number of Contacts | 2 Pin |
| Rated Current | 7.0A |
| Rated Voltage | 20V |
| Contact Resistance | 30 MAX. |
| Insulation Resistance | 100 MIN. |
| Insertion Force | 3N |
| Withdrawal Force | 30N |
| Service Life | 5000Times |
| Operating Temperature | -25℃ ~ +75℃ |
Core Technology
Key Words:
Multi-terminal integration, plating process, high-temperature-resistant materials.
Core Advantage:
Combines high-current transmission capability with a compact layout, suitable for high-vibration and high-temperature environments.
Technical Characteristics:
①Silver-Plated Terminals: Reduce contact resistance and enhance conductivity.
②High-Temperature-Resistant Housing: PA9T material (UL94 V-0 flame-retardant rating), ensuring safety in high-temperature environments.
③Precision Stamping Process: SUS301 stainless steel terminals, guaranteeing mechanical strength and durability.
Application Scenarios
