DC/Earphone Jack

Home / Products/DC/Earphone Jack/DC Jack Connector 2.5mm H10.0 2Pin 90 Degree DIP

MTDC48-102AAB-27A18

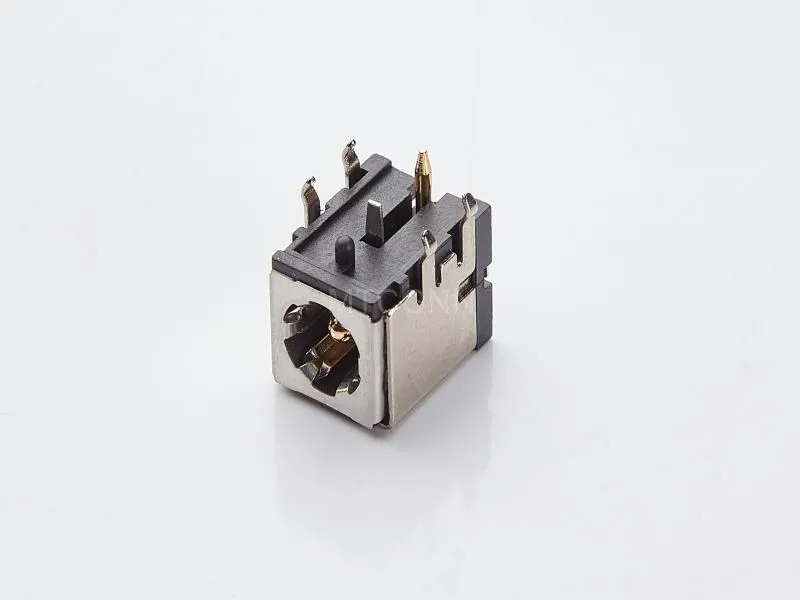

DC Jack Connector 2.5mm H10.0 2Pin 90 Degree DIP

Share:

Inquiry Now Next Product

Features Argument Core Technology Application Scenarios Product Features

Argument

Material of Main Part	SPCC
Number of Contacts	2 Pin
Rated Current	7A AC/DC
Rated Voltage	20V AC/DC
Contact Resistance	30mΩ MAX.
Withstand Voltage	500V AC (1min)
Insulation Resistance	100MΩ MIN.
Service Life	5,000 Times
Operating Temperature	-20℃ ~ +70℃

Related Products

90°DIP 10P8C with shielding and a lamp RJ45 Connector

90°DIP 10P8C with shielding and a lamp RJ45 Connector

11Pin PH1.27mm Vertical Dual Row Female Header

11Pin PH1.27mm Vertical Dual Row Female Header

Micro USB Connector 5 Pin 6.3mm Length Horizontal SMT Type

Micro USB Connector 5 Pin 6.3mm Length Horizontal SMT Type

Wafer Connector PH1.5 2Pin 180°DIP Single Row

Wafer Connector PH1.5 2Pin 180°DIP Single Row

USB 2.0 Connector 4Pin Plug 16.7mm Length Vertical T/H

USB 2.0 Connector 4Pin Plug 16.7mm Length Vertical T/H

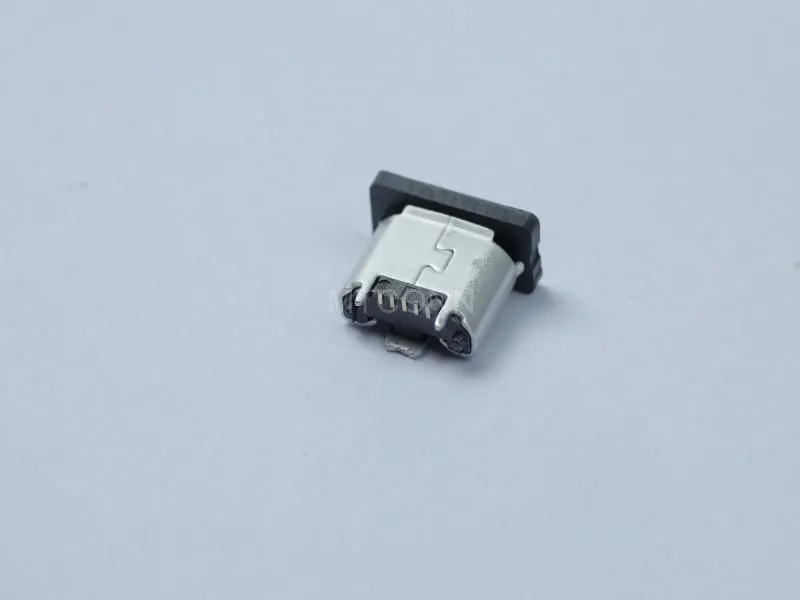

Micro USB Connector 5 Pin 5.7mm Length Vertical SMT Edge Curl Type
