DC/Earphone Jack

Home / Products/DC/Earphone Jack/DC Jack Connector 2.0mm 3Pin with Reference Pins

MTDC26-10300B-08A83

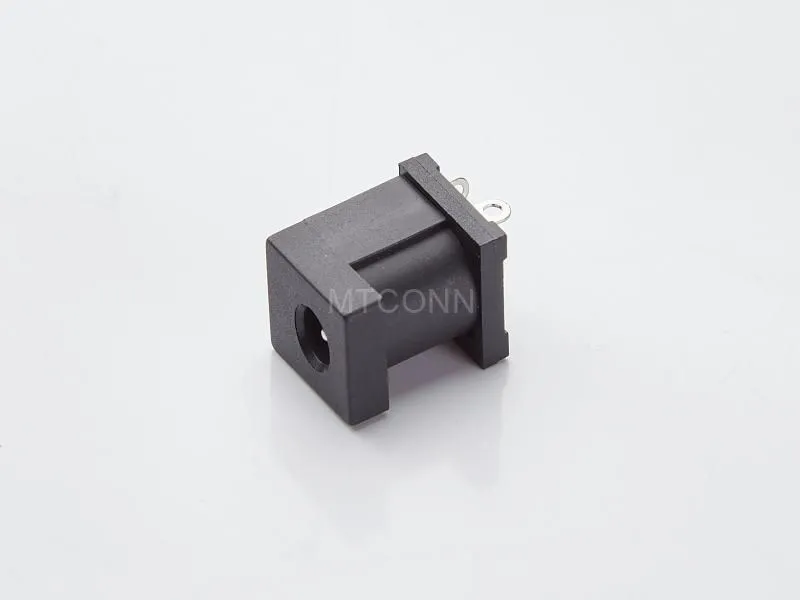

DC Jack Connector 2.0mm 3Pin with Reference Pins

Share:

Inquiry Now Next Product

Features Argument Core Technology Application Scenarios Product Features

Argument

Material of Main Part/Color	PBT/Black
Number of Contacts	3 Pin
Rated Current	3.0A AC/DC
Rated Voltage	30V AC/DC
Contact Resistance	30mΩ MAX.
Withstand Voltage	500V AC (1min)
Insulation Resistance	100MΩ MIN.

Related Products

90°SMT Female 19Pin A Type HD Connector

90°SMT Female 19Pin A Type HD Connector

DisplayPort Female 20P 90° SMT

DisplayPort Female 20P 90° SMT

Micro SIM Card Socket H1.5 Push Push Type

Micro SIM Card Socket H1.5 Push Push Type

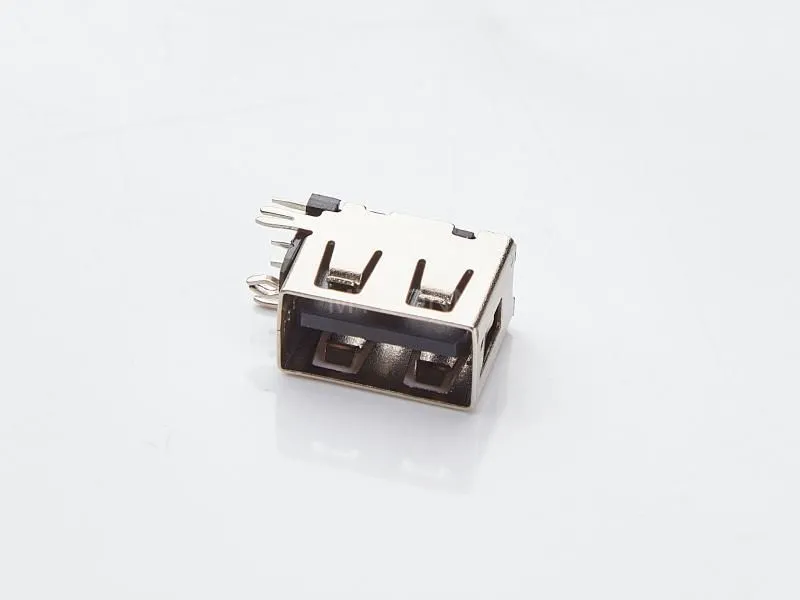

USB 2.0 Connector 4 Pin 10mm Length Right Angle T/H
