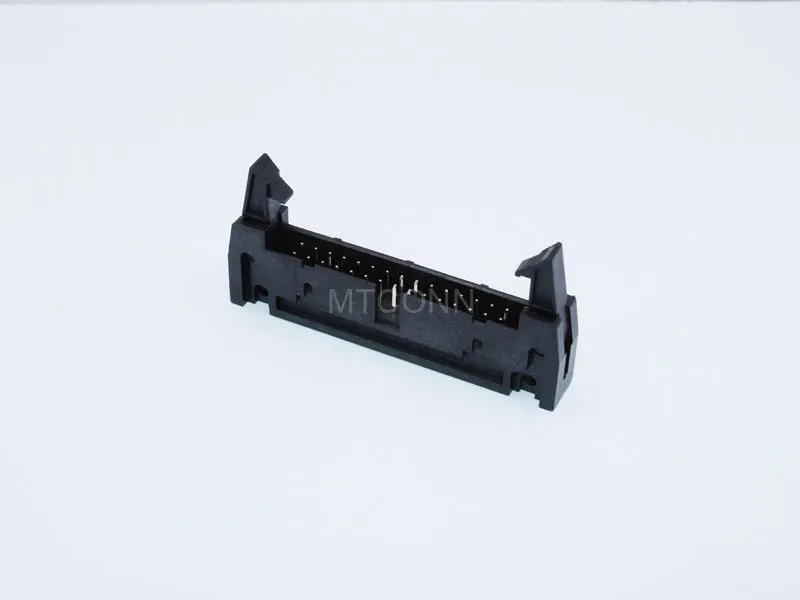

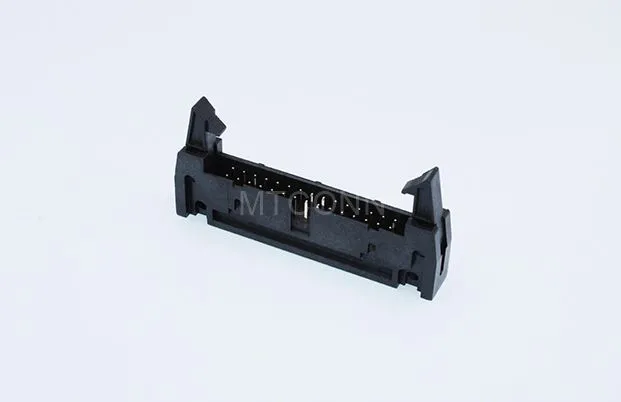

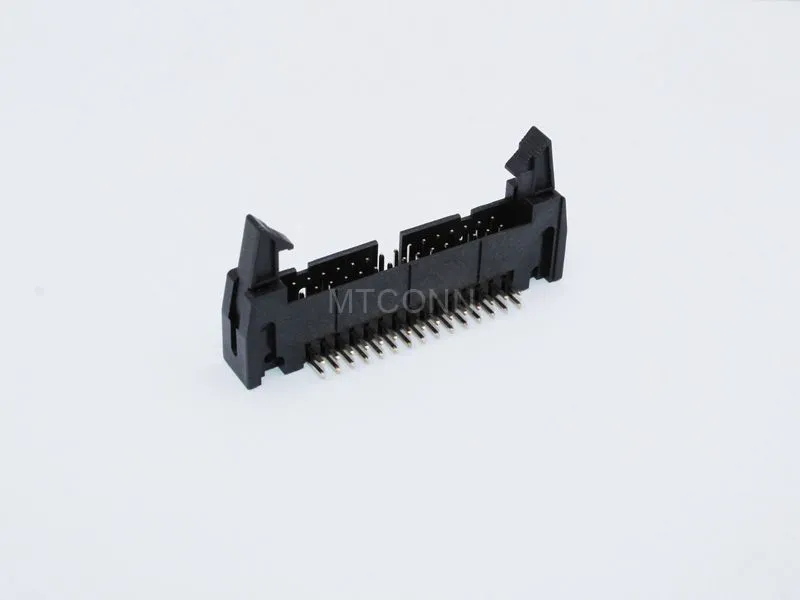

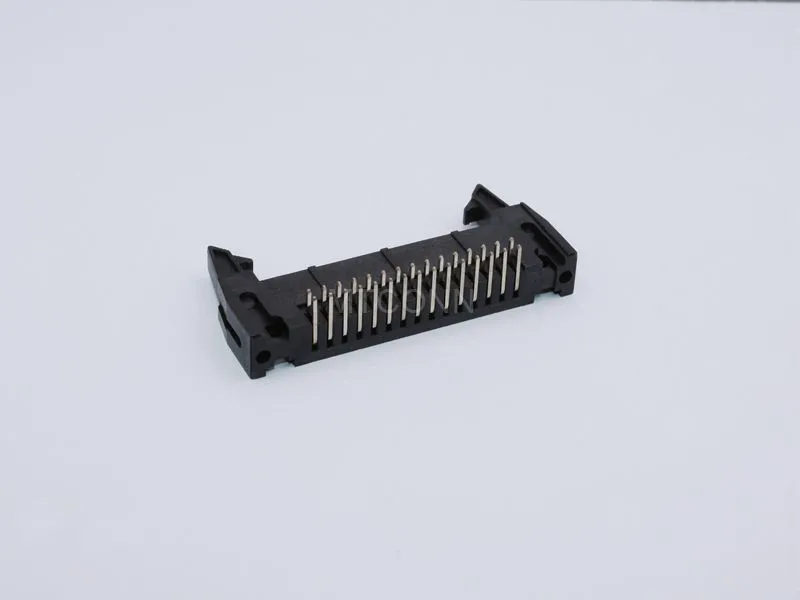

This model is a Ejector Header connector with pitch 2.54mm 15pin R/A T/H design that complied with RoHS certificate. It particularly designed for high-reliability connection requirement of industrial control, power equipment and automation instrument.with plastic part PBT UL94V-0 flame-retardant material and terminal with brass gold-plated, it combines excellent electrical performance and mechanical strength, meet requirement of harsh environment. Operating temperature range -25℃~+105℃.
Features
3A high current capacity: suitable for mixed transmission of power and signal.
20mΩ ultra-low contact resistance: Ensures signal integrity.
500V withstand voltage /1000MΩ insulation resistance: Passed industrial-grade safety test.
Double-row T/H DIP design, optimizes PCB space utilization rate.
Brass gold-plated Contact area is gold-plated (Gold Flash), which is anti-oxidation and wear-resistant.
Height 16.6mm: Provide sufficient insertion depth and enhances mechanical stability.
Argument
| Material of Main Part/Color | PBT/Black |
| Number of Contacts | 15 Pin |
| Rated Current | 3.0A |
| Contact Resistance | 20mΩ Max. |
| Withstand Voltage | 500V AC (1Min) |
| Insulation Resistance | 1000MΩ MIN. |
| Operating Temperature | -40℃ ~ +105℃ |
Core Technology
Key words:
2.54mm Ejector Header with 3.0A high current.
Core Advantage:
With 2.54mm pitch, it support high current and welding convenience.
Application Scenarios
