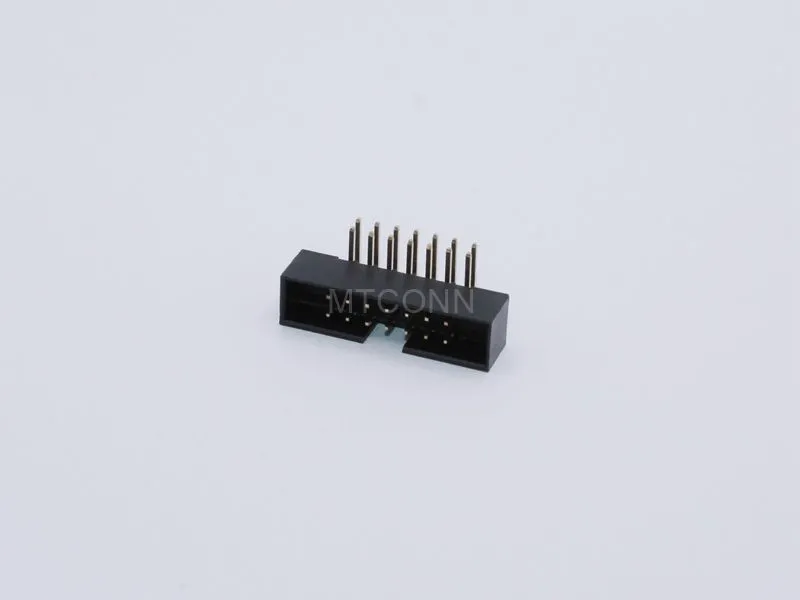

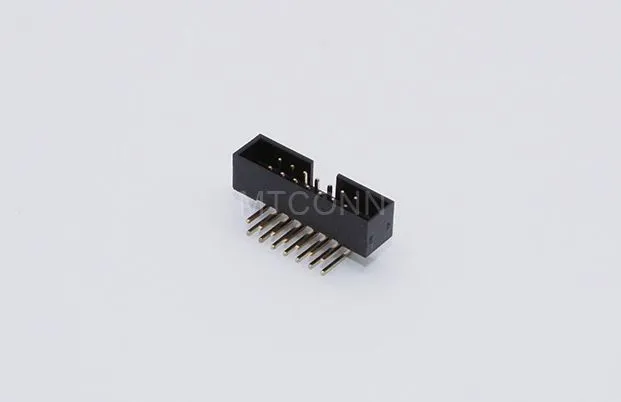

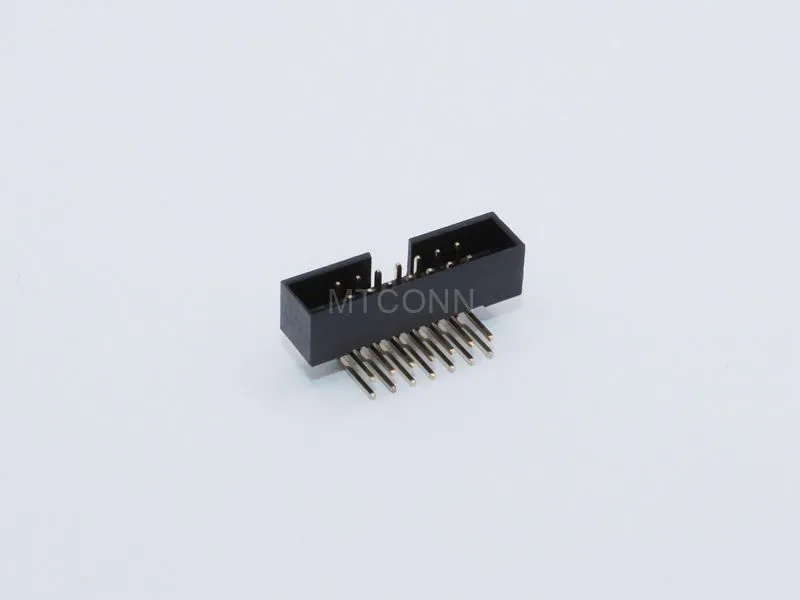

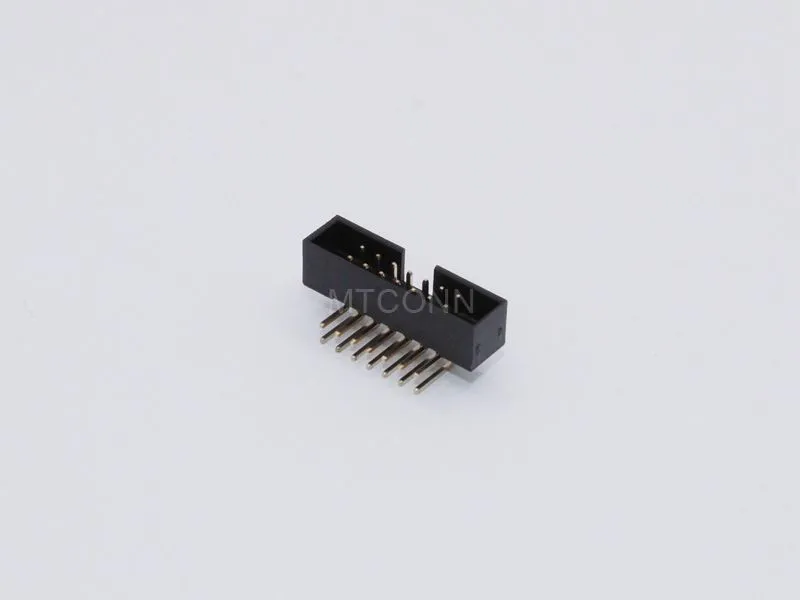

This product complies with RoHS standard, Box Header adopts high-density pitch design of 2.0mm. It particularly design for high-density PCB connector requirement in industrial control, communication equipment, medical electronics etc. With core advantage features of outstanding electrical performance, mechanical stability and wide range adaptability, it can meet long-term stable usage requirement in harsh industrial environment.
Features
Pitch 2.0mm: support high-density PCB layout, save more space.
Copper alloy terminal: ensure low contact resistance and stable signal transmission.
Support tray package.
Match with injector header socket with same pitch 2.0mm.
LCP UL94V-0 shell: High-temperature resistant and flame-retardant.
Operating temperature -40°C~+85°C: support harsh working environment.
Argument
| Material of Main Part/Color | PA6T/Black |
| Number of Contacts | 7 Pin |
| Rated Current | 1.5A |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 400V AC FRO ONE MINUTE |
| Insulation Resistance | 800MΩ MIN |
| Operating Temperature | -40℃~ +105℃ |
Core Technology
Key words:
Industrial-grade temperature resistance 2.0mm Box Header
Core Advantage:
It optimize space utilization rate with 2.0mm pitch high-density layout.
Application Scenarios
