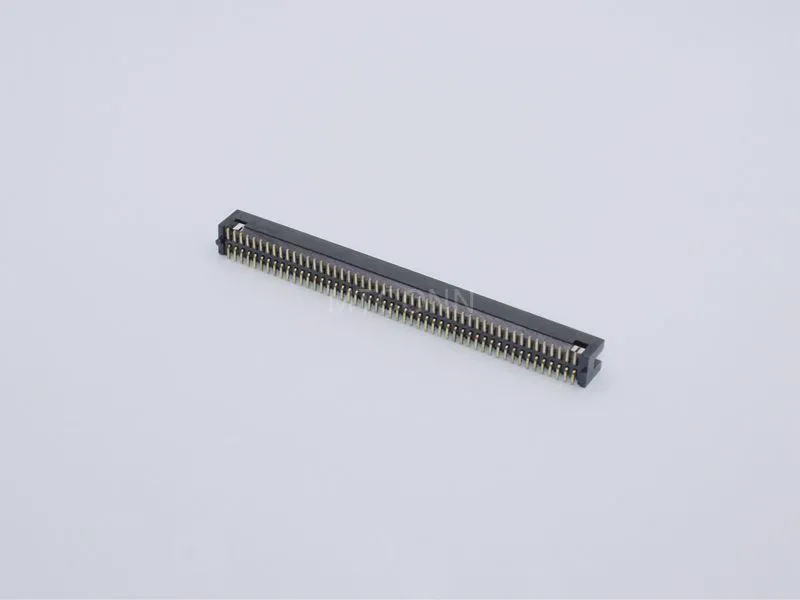

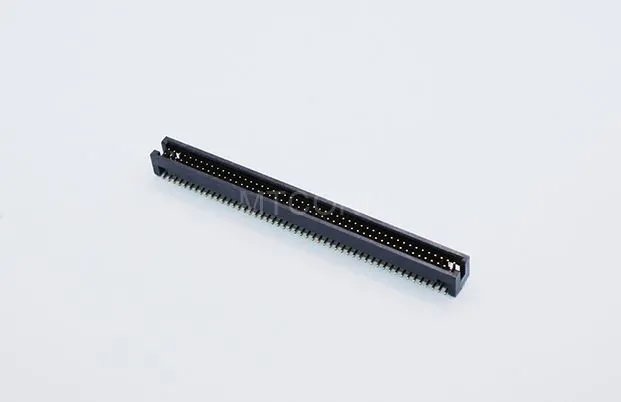

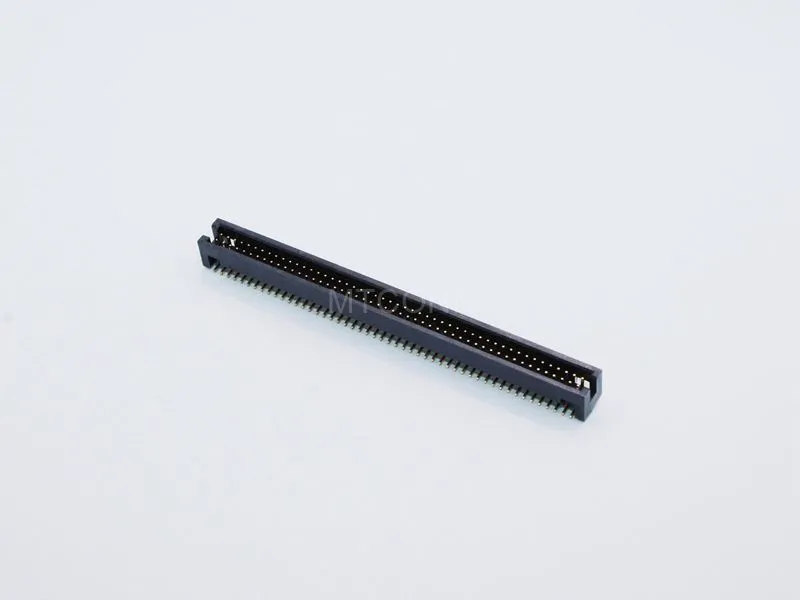

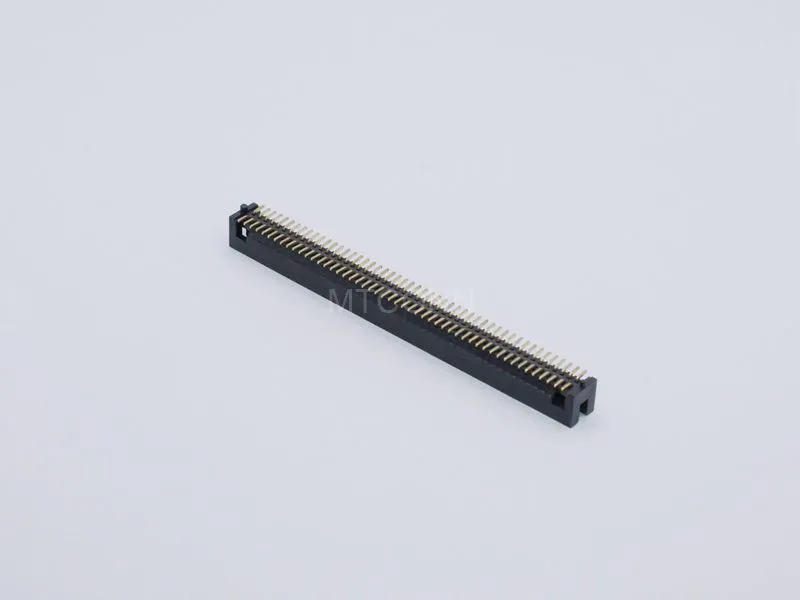

This product complies with RoHS standard, Box Header adopts high-density pitch designed of 1.27mm. With features of outstanding electrical performance and mechanical stability, it is specially designed for high-density PCB connection requirements in industrial control and communication equipment etc. Its operating temperature range covers industrial-grade standard.
Features
Pitch 1.27mm: support high-density PCB layout, save more space.
Copper alloy terminal: ensure low contact resistance and stable signal transmission
Support tube package
Match with injector header socket with same pitch 1.27mm
LCP UL94V-0 shell: High-temperature resistant and flame-retardant
Operating temperature: -40°C~+85°C: supports harsh working environment.
Argument
| Material of Main Part/Color | PA6T/LCP |
| Number of Contacts | 50 Pin |
| Rated Current | 1.0A |
| Contact Resistance | 20mΩ Max. |
| Withstand Voltage | 500V AC (1Min) |
| Insulation Resistance | 1000MΩ MIN. |
| Operating Temperature | -40℃~ +105℃ |
Core Technology
Key words:
1.27mm Box Header
Core Advantage:
It optimize space utilization rate with 1.27mm pitch high-density layout.
