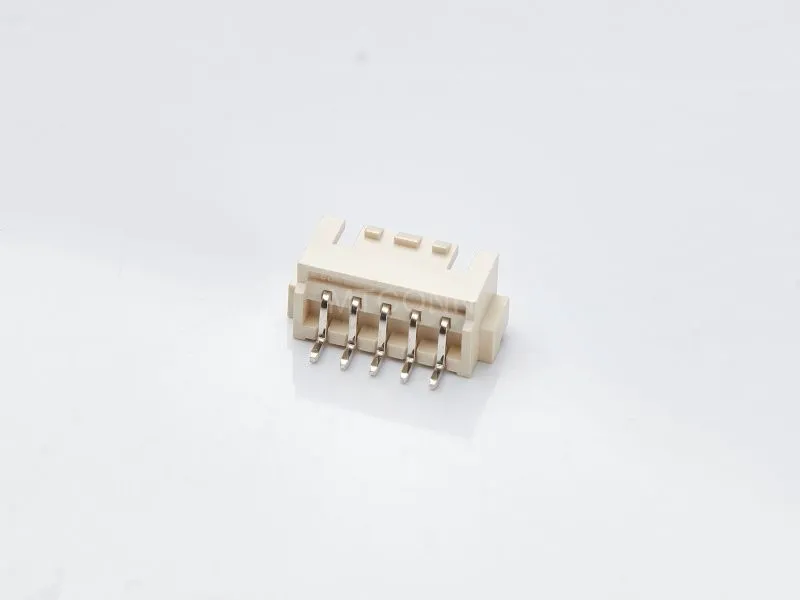

This product is an 5 Pin PH0.5 180° SMT board-to-board connector, made of LCP material and compliant with RoHS environmental standards. Featuring a 180° vertical mounting design, it is ideal for compact PCB interconnections, delivering reliable electrical performance and mechanical stability. Widely used in electronic devices, industrial control systems, and consumer electronics.
Features
Environmental Compliance: RoHS compliant, free from hazardous substances, ensuring safety and environmental protection
High Reliability: Optimized contact design ensures low contact resistance and stable signal transmission
Durability: Premium materials provide excellent mechanical strength and anti-aging properties
Secure Connection: 5Pin PH0.5 interface guarantees stable electrical connectivity and signal transfer
Precision Engineering: High-precision stamping and molding processes ensure dimensional consistency and plugging stability
Argument
Material of Main Part/Color | LCP/Beige |
Number of Contacts | 5Pin |
Rated Current | 0.5A AC/DC |
Contact Resistance | 40mΩ MAX. |
Withstand Voltage | 200V AC (1min) |
Insulation Resistance | 500MΩ MIN. |
Operating Temperature | -25℃ ~ +85℃ |
Core Technology
Key Ward:
5Pin PH0.5 BTB, 180-degree SMT, PA9T material, RoHS compliant, high-temperature resistant
Core Advantage:
The 180° vertical mounting design enhances connection stability, reduces electromagnetic interference (EMI), and improves production efficiency
Technical Features:
High-precision injection molding technology ensures accurate pin spacing (PH0.5) and dimensional tolerance
