What is FPC Connector?

In the complex architecture of modern electronic devices, FPC connectors play an indispensable role, acting as the "neural pathways" that enable stable connections and efficient communication between components. They are of great significance to device performance and miniaturization.

So—what is an FPC connector?

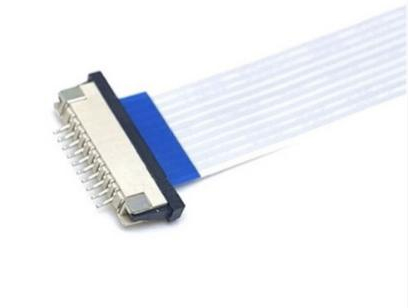

An FPC (Flexible Printed Circuit) connector is a critical component used to connect flexible circuit boards with other electronic devices. Known for their slim, lightweight, and compact design, they are widely applied in smartphones, computers, automotive electronics, and other fields, providing reliable electrical connection solutions for electronic products.

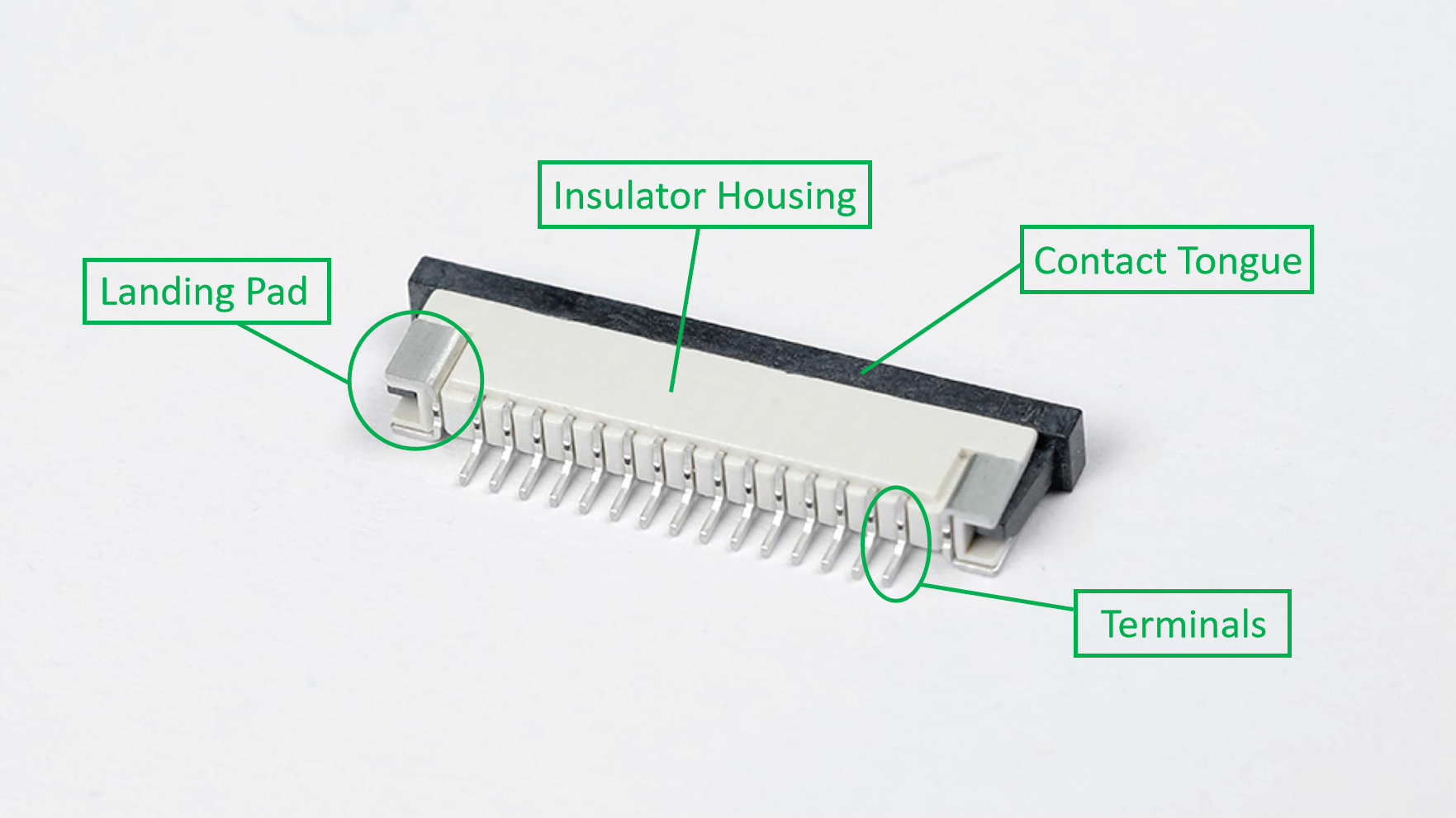

What are the components of an FPC connector?

1. Insulator Housing: Protects terminals and provides insulation. Typically made of PA9T and formed via injection molding.

2. Contact Tongue: Clamps the FPC cable and ensures insulation. Usually made of PA10T or PPS, formed by injection molding.

3. Terminals: Conduct electrical signals. Typically made of phosphor bronze (C5191), stamped and plated with gold or tin.

4. Landing Pad: Secures component positioning and enhances soldering stability. Usually made of brass (C2680), stamped and plated with gold or tin.

What are the common pitches of FPC connectors?

1. PH1.25mm: Commonly used in industrial equipment and automotive electronics.

2. PH0.5/0.8/1.0mm: Frequently found in laptops, printers, and similar devices.

3. PH0.3mm: Widely used in space-constrained compact electronics such as smartphones, tablets, and wearable Devices.

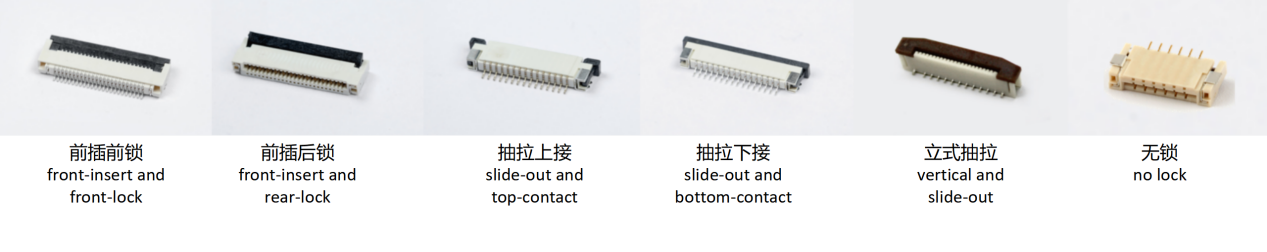

What are the structural types of FPC connectors?

Beyond the common configurations, custom designs are available to meet specific customer requirements.

In today's market, many FPC connectors suffer from poor stability and durability, often experiencing loose connections and signal interruptions, which severely impact device performance and user experience.

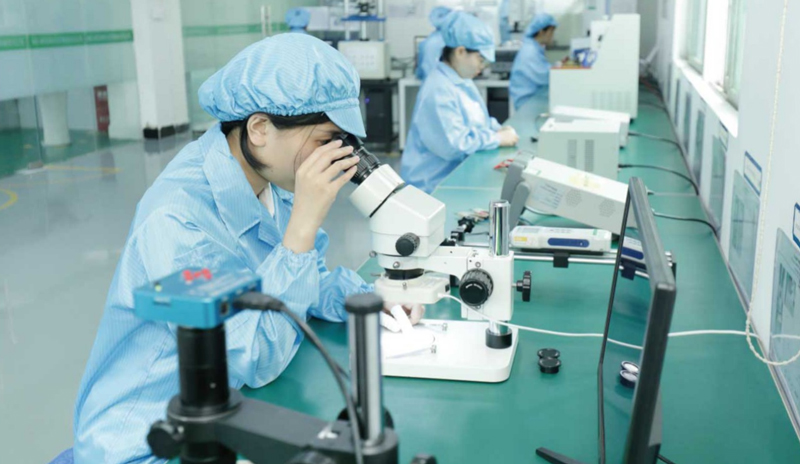

With years of expertise in the connector industry, MTCONN provides tailored connector solutions to meet specialized demands. We offer a comprehensive range of FPC connectors in various sizes and structures while continuously innovating to enhance stability and reliability. Equipped with an advanced R&D team, state-of-the-art production facilities, and rigorous quality control processes, we deliver cost-effective products of the highest standard.

Connecting the world, making connections brighter—MTCONN Technology is committed to serving you with excellence!
